UsGlobalSat BT-359 Quick Start

GLOBALSAT TECHNOLOGY CORPORATION
16F., No.186, Jian Yi Road, Chung Ho City, Taipei Hsien,Taiwan

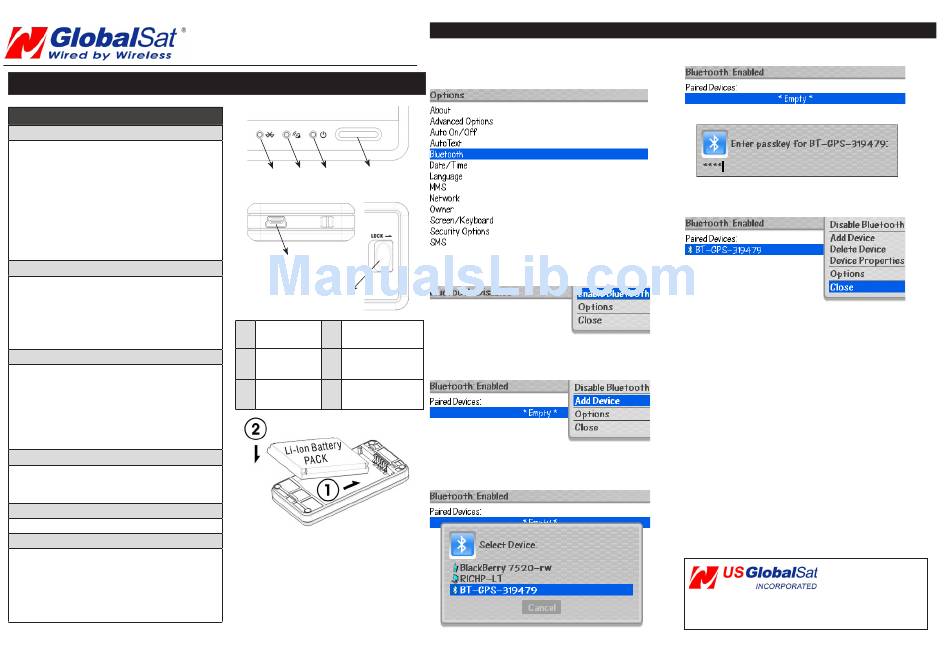

BT-359 Quick Start Guide
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
GPS standard:
SiRF Star III
GPS Antenna: Built-in ceramic patch antenna
Bluetooth standard: Bluetooth V2.0
Operation range: 10 meters (33 feet)
Bluetooth Default PIN:
PIN: 0000
Operation time: Up to 11 hrs
Charge time: 4~5 hrs
Auto Shut-Off: When no active Bluetooth connection
has been detected within 10 minutes.
Battery Charging: Mini USB connector (not for data)
ON-OFF POWER BUTTON
OFF to ON: Pressing the ON-OFF button for approximately 1
second will cause the unit to turn ON.
ON to OFF: Pressing the ON-OFF button for approximately 1
second will cause the unit to turn OFF.
RESET: Pressing the ON-OFF button for approximately 5
seconds will cause the unit to reset itself.
STATUS LED's
GPS status: Flashing – GPS position is not fixed
Steady – GPS position is now fixed
Power status: Solid Red – Battery Low
Solid Amber – Battery is being charged
Bluetooth status:
Flashing (Slow) – Not connected to a Bluetooth device
Flashing (Fast) – Connected to a Bluetooth device
TEMPERATURE
Operating: 14°F ~ 140°F (-10°C ~ 60°C)
Storage: -4°F ~ 158°F (-20°C ~ 70°C)
Humidity: Operational up to 95% non-condensing
POWER
DC supplies: 4.5V~5.5V / 0.5A
BLUETOOTH SPECIFICATIONS
Bluetooth Chipset: CSR BC4
Frequency:
2402MHz to 2480MHz
Standard: Bluetooth V2.0
Bluetooth Profile: SPP (Serial Port Profile)
Operation Range: 33 feet (10 meters)
Output Power: 0 dBm (class II)
service@globalsat.com.tw • www.globalsat.com.tw
   

NOT FOR DATA TRANSFER

Bluetooth ON-OFF button
 
status
GPS status Mini USB port for
 
charging purpose
Power status Battery cover
 
Lock latch
Changing the Battery
a. Slide Battery Cover (#6) to the un-lock position.
b. Slightly lift cover (at latch end) and then slide the battery
cover back to expose and remove the battery.
c. Insert new battery with face-down to align with contact
pins.
d. Replace battery cover and put the battery cover lock into
the locked position.
PARING THE GLOBALSAT BLUETOOTH GPS RECEIVER
1. Turn on the Bluetooth GPS puck.
2. Go to the Options/Settings screen on the
BlackBerry and select Bluetooth.
3. If Bluetooth is disabled, select Enable Bluetooth
from the menu. If Bluetooth is enabled go to step 4.
4. Select Add Device from the menu. If the GPS is
already listed go to step 7.
5. The BlackBerry will search for all Bluetooth
devices within range. Pick the GPS from the list
of devices found.
6. Enter the passkey for the GPS. The default is 0000.
7. The GPS device should now be listed. Select
Close from the menu.
8. The Bluetooth GPS puck is now available for
use by any application. Specific applications
may require the user to enable the GPS within
the application as well.
North American
Sales & Service
1308 John Reed Court, City of Industry, CA 91745
sales@usglobalsat.com • www.usglobalsat.com
BT359_QSG_051106
