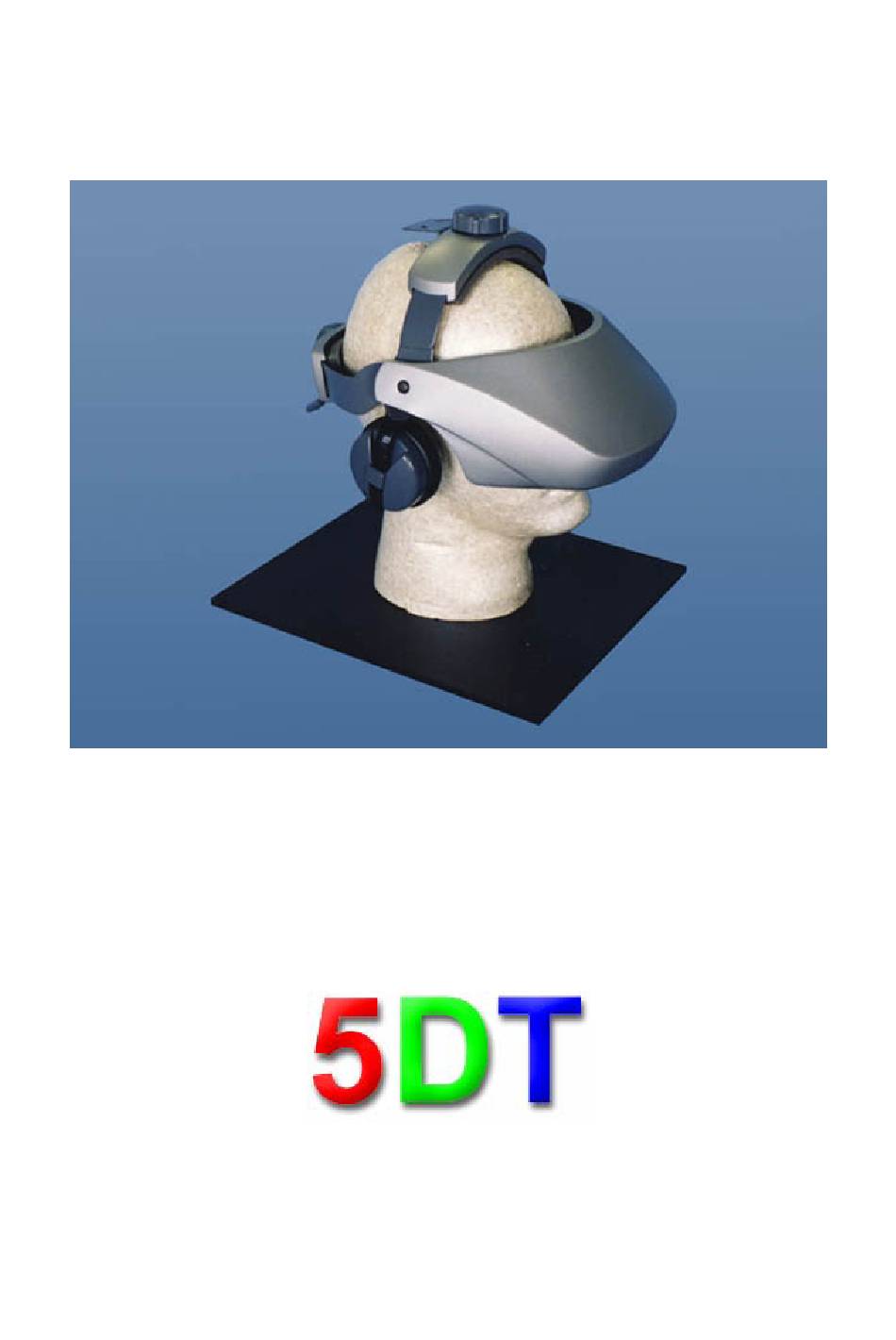

- Page 1 5DT HMD 800-26 Series User’s Manual Fifth Dimension Technologies www.5DT.com...
- Page 2 All trademarks and trade names are the respective property of their owners. Unless otherwise indicated, the term "5DT HMD 800-26" in this manual refers to both the 2D and the 3D HMD. The stereo HMD will be indicated as "5DT HMD 800-26 3D" where there are differences between the two devices.
-
Page 3: Table Of Contents
CONNECTING THE HMD USING YOUR HMD Basic Use – Donning the Headset PC Setup Using the HMD 800 Controls Accessing the On-Screen-Display Menu (OSD) On-Screen Display (OSD) Menu Options ABOUT 5DT CONTACT INFORMATION APPENDIX A - TROUBLESHOOTING APPENDIX B - SPECIFICATIONS... - Page 4 APPENDIX C - PRODUCT WARRANTY 3 Month Product Warranty Exclusions Warranty Claim Instructions...
-
Page 5: Introduction
Thank you for choosing this product. We trust that you will have a lot of fun and satisfaction using it. The 5DT Head Mounted Display (HMD) 800-26 offers the user an affordable immersive viewing experience with 1.44 million pixels of resolution. This product is... -
Page 6: Safety First
Safety First! Please take CAREFUL NOTE of the following SAFETY ISSUES. Due to medical safety reasons, this product should not be used by the following persons: Individuals with Epilepsy Individuals who have been diagnosed with Epilepsy, or who have a personal or family history of Epilepsy, should not use this product because it may trigger epileptic seizures. -
Page 7: Cleaning The Product
Cleaning the Product • Always unplug the power adapter before cleaning the product to prevent electric shock and/or fire. • Remove dust on the headset by using a soft cloth. • To remove stains or dirt, wipe the HMD with a soft cloth dampened with a neutral detergent. -
Page 8: Package Contents
Package Contents Please confirm that the package contains the following: • 5DT HMD with connected interface cable • Power supply • This manual... -
Page 9: Connecting The Hmd
Connect the supplied D-sub SVGA connector of the 5DT HMD 800-26 to the output of your video card. b. Connect the audio connection cable of the 5DT HMD 800-26 to the audio out line of your soundcard. c. Connect the power supply plug of the 5DT HMD 800-26 to the supplied 9V Power Supply Unit. -
Page 10: Using Your Hmd
Using your HMD Basic Use – Donning the Headset Warning: If the headset is not adjusted properly, it can lead to fatigue of the eyes or blurred vision. In general the headset should not be worn if the user is experiencing discomfort and should not be worn longer than one hour at a time without taking a break for 10-15 minutes. -
Page 11: Pc Setup
PC Setup The 5DT HMD 800-26 will accept either a VGA (640 x 480) or an SVGA (800 x 600) computer input at 60Hz. If the resolution output and refresh rate of your computer is set at something other than (640 x 480) or (800 x 600) at 60Hz, please follow the instructions below before connecting the 5DT HMD 800 to the VGA port of your computer. - Page 12 Figure 4 – Setting the display resolution for Windows 95/98/Me/XP Figure 5 – Setting the refresh rate for Windows 95/98/Me/XP...
-
Page 13: Using The Hmd 800 Controls
This will illuminate the green LED above to the Power/Menu button and, within a few seconds, an image will appear on the headset. Your 5DT HMD 800-26 has been preset at the factory and no further adjustments should be required. -
Page 14: On-Screen Display (Osd) Menu Options
On-Screen Display (OSD) Menu Options A. Brightness: Selecting the Brightness icon allows you to make adjustments to the display brightness. When the brightness submenu is displayed, as shown in Figure 7, you may change the setting between 0-100% by pressing the Vol (+/-) buttons. Once the desired brightness level has been determined, you may press the Power/Menu button once to save the setting. - Page 15 Figure 9 – The Audio Balance OSD menu D. Centering Screen: If the image on the screen appears to be off center, you can make adjustments by selecting this function. Again, use the Vol (+/-) buttons to position the image on the screen as desired.
- Page 16 Figure 12 – The Factory Reset OSD menu G. 3D mode (5DT HMD 800-26 3D Only): Selecting this icon allows you to switch your 5DT HMD 800-26 3D between 2D and 3D modes. Please Note: Before switching to 3D mode, you will want to increase the refresh rate to a minimum of 85Hz., but 100Hz or higher is preferable.
-
Page 17: About 5Dt
5DT <Fifth Dimension Technologies> is a high technology company specializing in Virtual Reality (VR). 5DT develops, produces and distributes affordable virtual reality hardware, software and systems. 5DT can also develop custom systems for all your VR needs. 5DT's focus is Virtual Reality Training Systems and Virtual Reality Peripherals. - Page 18 • Rocket Launcher Training Simulator • Stand-off Weapon Training Simulator and Visualizer High Voltage • High Voltage Line Inspection Logging System • High Voltage Line Inspection Program • High Voltage Line Inspection Training System • High Voltage Line Repair Training System •...
-
Page 19: Contact Information
Irvine, CA 92618 Tel: +1 949 450-9044 Fax: +1 949 450-9045 e-mail: info.us@5dt.com Web: www.5dt.com Rest of World –5DT (Fifth Dimension Technologies) 25 De Havilland Crescent, P.O. Box 5 Persequor Park, 0020 Pretoria, South Africa Tel: +27 12 349 2690 Fax: +27 12 349 1404 Email: info@5dt.com... -
Page 20: Appendix A - Troubleshooting
The image rolls, has static or is jumpy. The 5DT HMD 800 is looking for a very precise 800 x 600 input signal at 60Hz. Some computers may output a signal at a frequency other than 60Hz despite the fact that your computer is set at 60Hz. - Page 21 The image seems to darken over time. The micro-display used in the 5DT HMD 800-26 may darken in color as they heat up over time. Minor adjustments can be made by accessing the OSD functions. Please make sure that you are using the HMD in an environment within the operating tolerances of the unit.
-
Page 22: Appendix B - Specifications
Appendix B - Specifications Model 5DT HMD 800 Signal System VGA / SVGA 0.49 inch 1.44 million Dot Micro Display Dot Number / panel 800 (H) x 600 (V) Virtual Image Size 44-inch at 2m Viewing Angle 26° Diagonal RGB, Positive Sync in SGVA Mode... - Page 23 Appendix C - Product Warranty 3 Month Product Warranty 5DT warrants to the original purchaser of the 5DT HMD 800-26 2D or 5DT HMD 800- 26 3D that it will be free of defects in materials and workmanship for a period of 3 months from the original date of purchase.
- Page 24 It is important that you assign the same maximum value of US$50 to both the invoice and the courier waybill. j. If you do not adhere to the warranty claim instructions and 5DT has to incur costs to release the shipment from customs, these costs will be for your account. 5DT will not return your product until these costs are paid.
