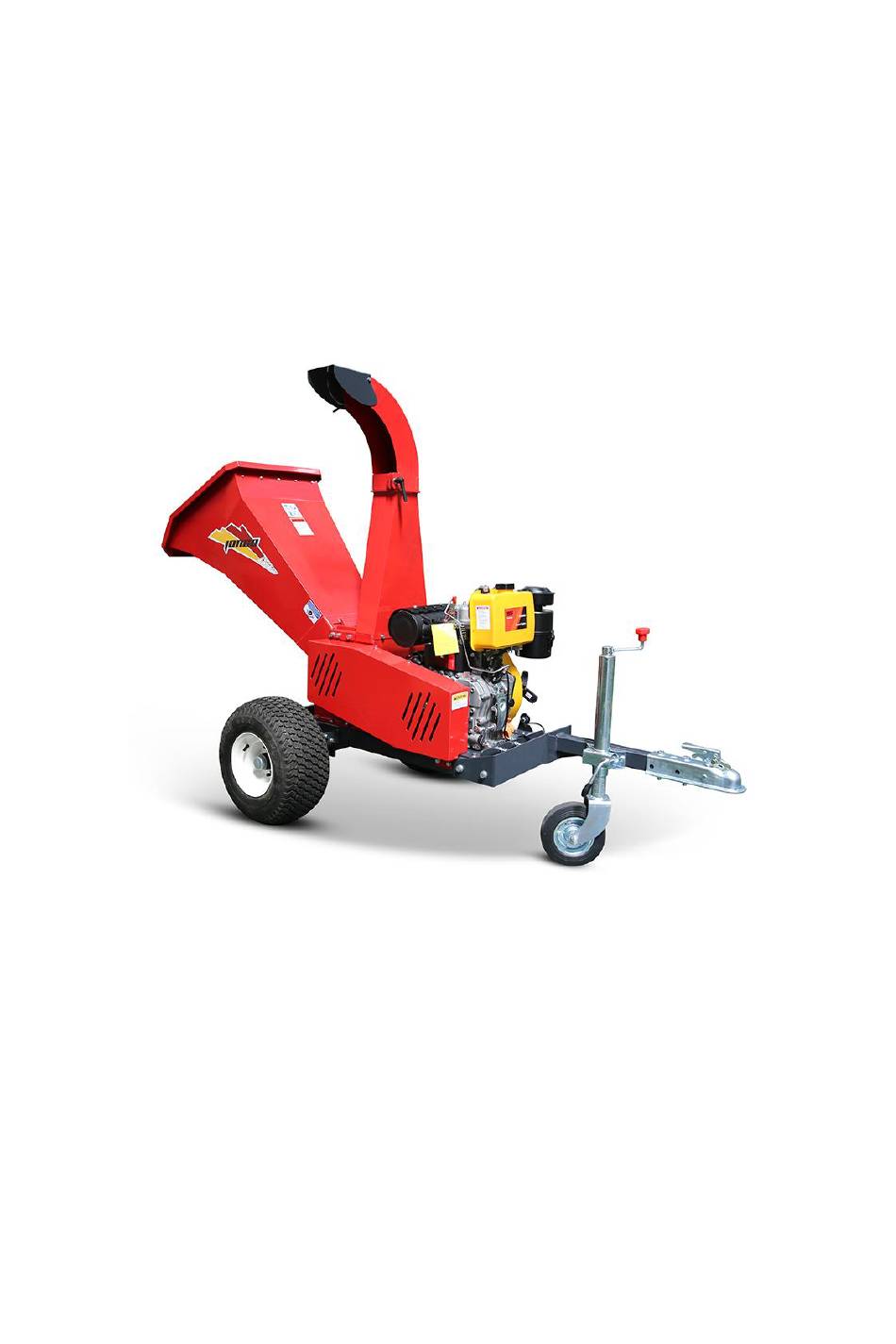

WOOD CHIPPER
User's Manual
TC100
Please read through this owner's manual carefully before using the product, to ensure the safety
of yourself and others.
*Due to continuing improvements, actual product may differ slightly from the product described
herein.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC100 and is the answer not in the manual?

Questions and answers

Related Manuals for Jonco TC100

Summary of Contents for Jonco TC100

  • Page 1 WOOD CHIPPER User’s Manual TC100 Please read through this owner’s manual carefully before using the product, to ensure the safety of yourself and others. *Due to continuing improvements, actual product may differ slightly from the product described herein.

  • Page 2: Specifications

    Thank you for choosing chipper of JONCO. We are sure, this machine will definitely help you with wood chipping and make your work easier and faster in following long period of time. To the owner of this machine, you will also find, it is so simple for maintenance, accessories and problems solution, with support by a wide and professional team service net around you.

  • Page 3: General Safety Rules

    2 . General safety rules • Read this safety & operating manual before you use TC100 chipper. Become familiar with the operation and service recommendations to ensure the best performance from your machine. • Thoroughly inspect the area in which you will be working and remove all foreign objects such as rope, wire, etc., and remove these objects before chipping.
  • Page 4 Attention Read manual before using the machine. Use gloves. Use goggles Use mufflers No touch on rotor, be caution that rotor is easily rolling and very dangerous. Be careful of sharp blades. 2.2 Safety for Yourself and Those Around You •...
  • Page 5 Do not use the machine while barefoot or wearing open sandals. • Wear long pants while operating TC100 chipper. • Use mufflers or ear plugs rated for at least 20 dba to protect your hearing.
  • Page 6 • Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on TC100 chipper. Modifications to your machine could cause personal injuries and property damage and will void your warranty.
  • Page 7 4. personal injury or damage to the machine could result. • While using TC100 chipper, don't hurry or take things for granted. When in doubt about the equipment or your surroundings, stop the machine and take the time to look things over.

  • Page 8: Transportation Safety

    This chapter outlines unpacking and a few simple steps you will need to follow to set up your new machine before you use it. It may be helpful to familiarize yourself with the controls and features of your TC100 CHIPPER as shown in before beginning these procedures.
  • Page 9 • Stabilize the wood crate on clean flat terrain before attempting to unpack and assemble the chipper. Unpacking the TC100 CHIPPER is a two-person job. We recommend you have an extra set of hands available before you begin because the CHIPPER weighs...
  • Page 10 300KG. Step A 1. Use the electric driller with socket 10mm to take off the fix screw 2. Lift up crate top and put it aside by two people 3. Remove the carton board 4. Take off the stretching plastic 5.
  • Page 11 Battery has to be recharged after 40 days to keep active. 4. Operating This chapter covers the procedures for starting and stopping your new TC100 CHIPPER and discusses basic operation features. • Contact with internal rotating parts will cause serious personal injury. Never put hands, face, feet, or clothing into chipper hopper or discharge opening or near the discharge area at any time.
  • Page 12 • Visually check the Chipper Blade for damage before each use of the machine. . • Keep proper balance and footing while operating the TC100 CHIPPER. • ALWAYS stop the TC100 when leaving the Operating Zones or when moving the machine.
  • Page 13 Chipper can chip branches ranging in size up to 4" in diameter. 2. Your TC100 CHIPPER can process green wood up to 4" in diameter. 3. The Chipper will self-feed the wood once it contacts the blade edge so forcing the branches into the Hopper is not necessary if the blade is sharp.

  • Page 14: Regular Maintenance Check List

    Reassemble: 1. Position the Conveyor onto the Chipper Assembly and secure with two Bolts. 2. Start the TC100; allowing the remaining material in the rotor housing to discharge. 3. If the Chipping Chamber doesn’t clear and the rotor is still jammed, repeat above process.
  • Page 15 Inspect or replace Drive Belt ○ 5.2 Grease Fittings • Your TC100 CHIPPER was greased at the Factory. The operator needs to periodically lubricate the two Bearings of the Chipper Assembly. • Over lubrication can damage the bearings. 1. Remove the Belt Cover 2.
  • Page 16 • Make sure that the Belt, pulley are in alignment. • The belt on your TC100 CHIPPER is tensioned by the engine position that is set at the factory. As the Belt stretches from use, the Belt tension may need to be adjusted.
  • Page 17 • Routine inspection of the Chipper Blade and counter blade will ensure that your TC100 Chipper is operating at full efficiency. Operating with a worn or damaged Chipper Blade or Counter blade will cause extreme stress and vibration to the machine and make chipping difficult for the operator.

  • Page 18: Troubleshooting

    5 minutes before performing any maintenance procedure or inspection on the chipper. • when not in use, your TC100 chipper should be stored out of the reach of children. Please refer to the Safety and Operation Manual that came with the TC100 for specific diesel engine Regular procedures.
  • Page 19 ⇒ The Drive Belt may be stretched; replace it. ⇒ The Pulleys may be misaligned. ⇒ The TC100 speed is too slow causing the belt to slip. Chipping action ⇒ Check for loose or damaged Drive Belt; replace as needed.
