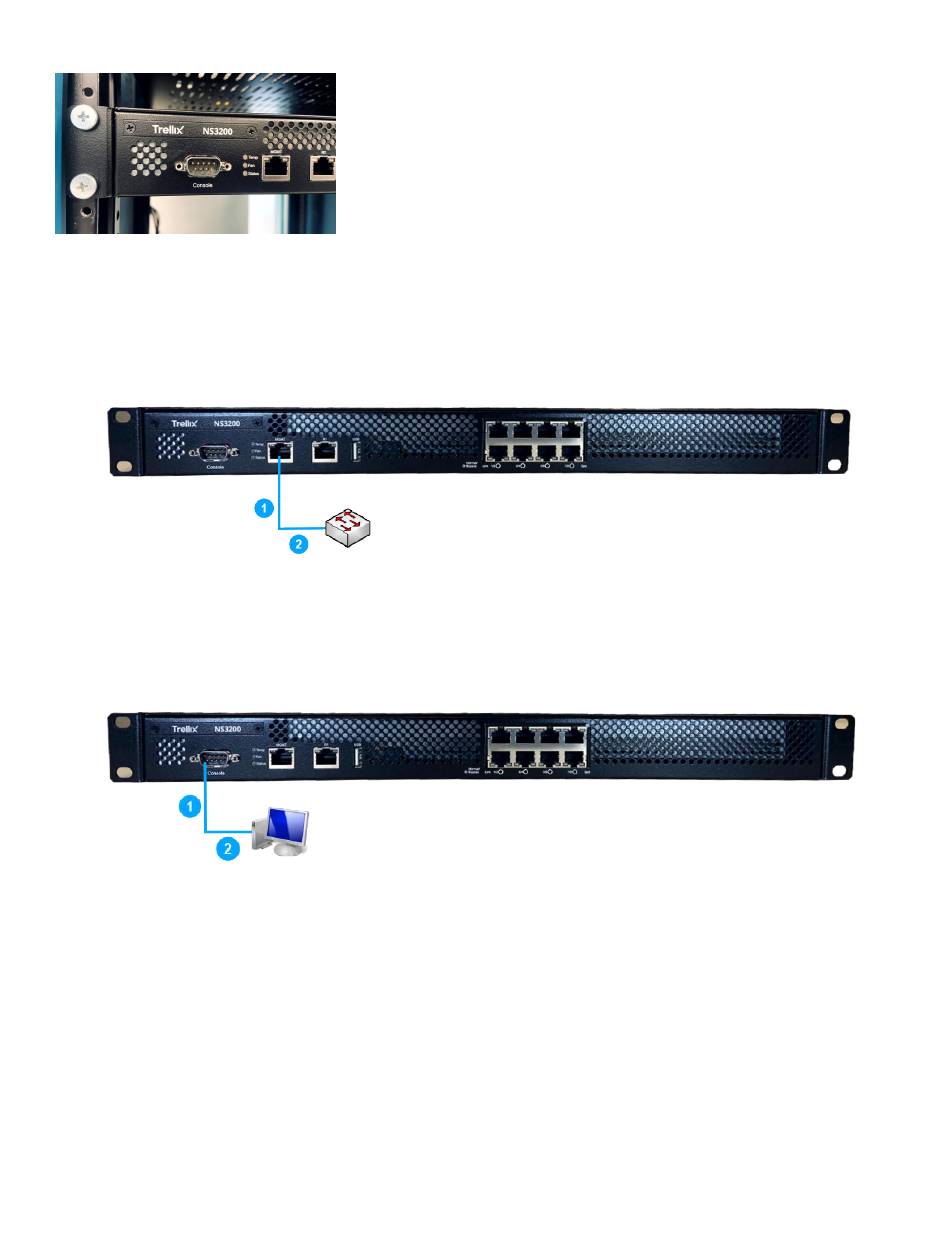

4 Connect the Management and Console ports
a On the front panel of the NS3x00 Sensors, plug a Category 5e Ethernet cable in the Management port
(labeled MGMT).
b Plug the other end of the cable into the network device connected to your Manager server.
c On the front panel of the NS3x00 Sensors, plug the DB9 Console cables into the Console port (labeled
Console).
d Connect the other end of the Console port cable directly to a COM port of the PC or terminal server you
are using to configure the Sensor (for example, a PC running correctly configured Windows
Hyperterminal software). You must directly connect to the console for initial configuration, you cannot
configure the Sensor remotely.
