User Manual

Wireless Solar Parking Camera and Monitor

NAVC-RCMS-999

Table of Contents

Summary of Contents for Laser NAVC-RCMS-999

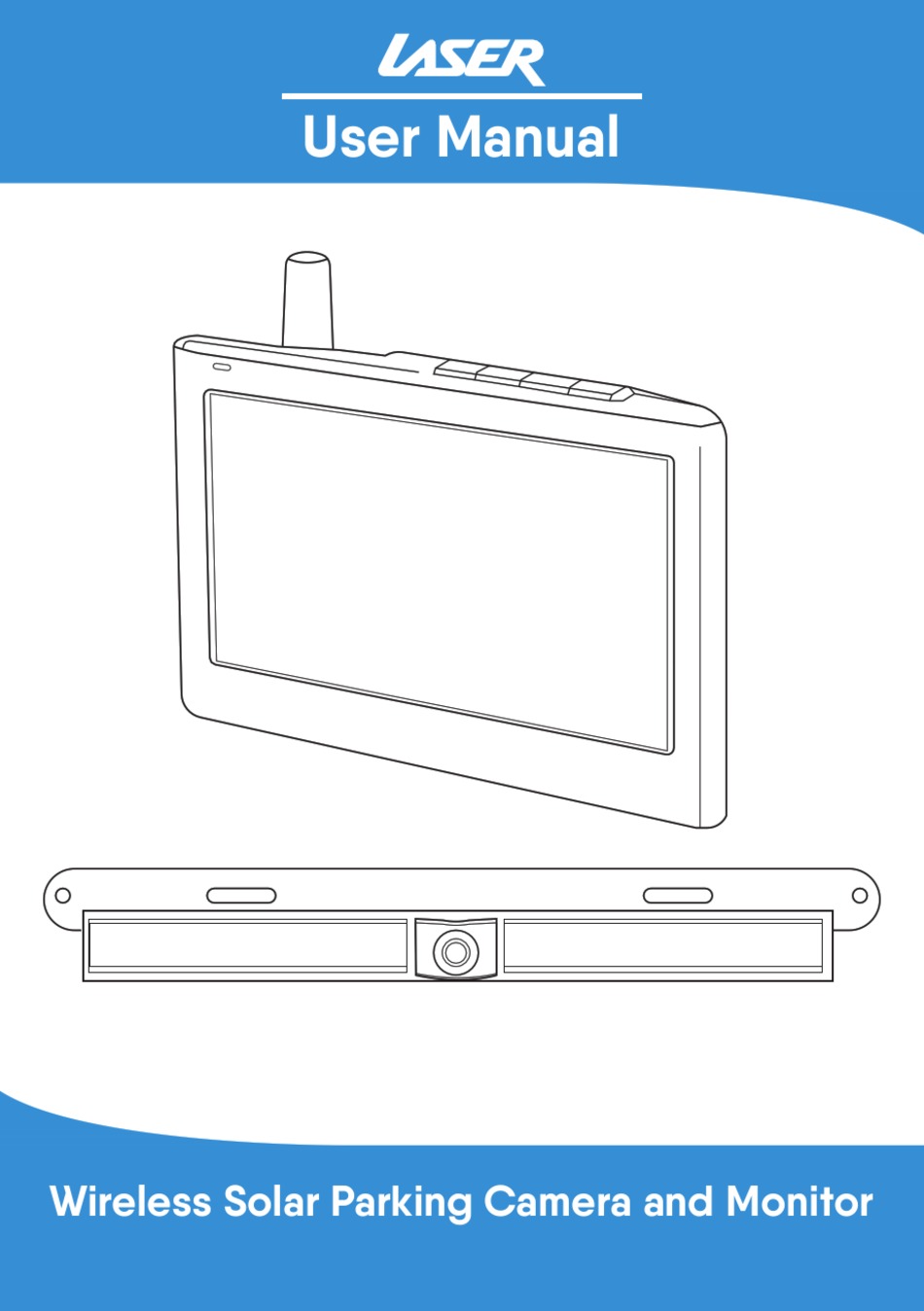

Page 1 User Manual Wireless Solar Parking Camera and Monitor NAVC-RCMS-999...
Page 2: What's In The Box
WHAT’S IN THE BOX •Wireless camera with solar panels •Monitor •Mounting arm •Cigarette lighter power adapter •USB charging cable (for the camera) •Screws (to install the camera) •User manual...
Page 3: Controls Buttons
CONTROLS BUTTONS BUTTONS Camera mounting holes Indicator light Solar panels Charging socket  Button - Press to change the parameter value on the menu setting interface. Charging indicator Menu/OK - Press to confirm the chosen item Mounting holes in the menu setting interface. Long Press Antenna (press and hold for 3 seconds) to enter the screen’s menu setting.
Page 4: Installation
INSTALLATION Before installing the camera in your car: Charge the camera battery by leaving it in the sun for an hour. Alternatively, remove the dust cover from Power socket on the underside of the camera. Plug in the round end of the USB charging cable (supplied) to the camera and USB-A end to the car power adaptor (supplied).
Page 5 INSTALLATION continued... TEST THE CAMERA AND THE MONITOR PAIRING Connect the car adaptor (supplied) to the monitor and the car’s cigarette lighter socket. Turn the ignition switch to ACC or ON position. Press the Power button on the screen or car adaptor to turn the screen on.
Page 6: Installing The Camera
INSTALLATION continued... INSTALLING THE CAMERA Good to know: • The camera should be attached to the pre-drilled holes at the bottom of the standard Australian license plate. • If the license plate doesn’t have holes at the bottom, refer to state laws to see if it’s allowed to drill holes in the plate.
Page 7 INSTALLATION continued...
Page 8: Installing The Monitor
INSTALLATION continued... INSTALLING THE MONITOR Mount the screen to the windscreen. Connect the car adaptor (supplied) to the power cord attached to the monitor. Cigarette lighter slot in car Plug in the car adaptor to the cigarette lighter socket in the car.
Page 9: Operation
OPERATION Turn the vehicle ignition switch to ACC or ON position. Press the Power button on the screen or car adaptor to turn the screen on. Wake up the camera by giving it a slight vibration, such as closing a car door or the lurch when the car comes to a full stop.
Page 10 OPERATION continued... To select a realistic parking guidance lines position, see instructions for Parking Guideline Position Adjustment on page 11. To turn off parking guidance lines, press the button while the camera image is on the screen. To mirror the image, see instructions for Mirror Image setting on page 11.
Page 11: Menu Settings
MENU SETTINGS •Press the Menu button on the screen to open the menu settings. •Use /buttons to navigate through the menu, and select settings. •Press and hold the Menu button for 3 seconds to enter the chosen menu setting. •Press the Menu button to exist. •If there is no operation for 8 seconds, the menu will automatically exit.
Page 12 MENU SETTINGS continued... Parking Guideline Position Adjustment - Change the position of Parking Guidance lines. Time Settings - Adjust the time.
Page 13: Care And Maintenance
CARE & MAINTENANCE Clean the camera lens and solar panels using a soft cloth moistened with water or environmentally friendly and chemical-free soap if dust or stains have built-up. Do not use solvents or chemical materials. Wipe away the moisture with a dry soft cloth or chamois to avoid leaving residue behind.
Page 14: Troubleshooting
TROUBLESHOOTING IF THE SCREEN DOESN’T TURN ON WHEN POWER IS APPLIED: Ensure the screen is getting power (the ignition switch must be in the ACC or the ON position, or the engine is running). Check to ensure the power cord is not damaged.
Page 15: Specifications
SPECIFICATIONS CAMERA View Angle 135° Charging Power 1.5w IP67 Camera Waterproof Rating Battery Capacity 2600mAh Power (Input) 5V, 2.1A TRANSMITTER 2400-2485.5 MHz Frequency MONITOR Screen size 4.3” Power (input) 5V, 1A CAR ADAPTOR Power (Input) 12-24V Power (Output) 5V, 2.1A...
Page 16 Visit our website www.laserco.com.au Check us out at www.youtube.com/lasercoau...
Page 17 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and...
