Summary of Contents for Osculati TXJ1001

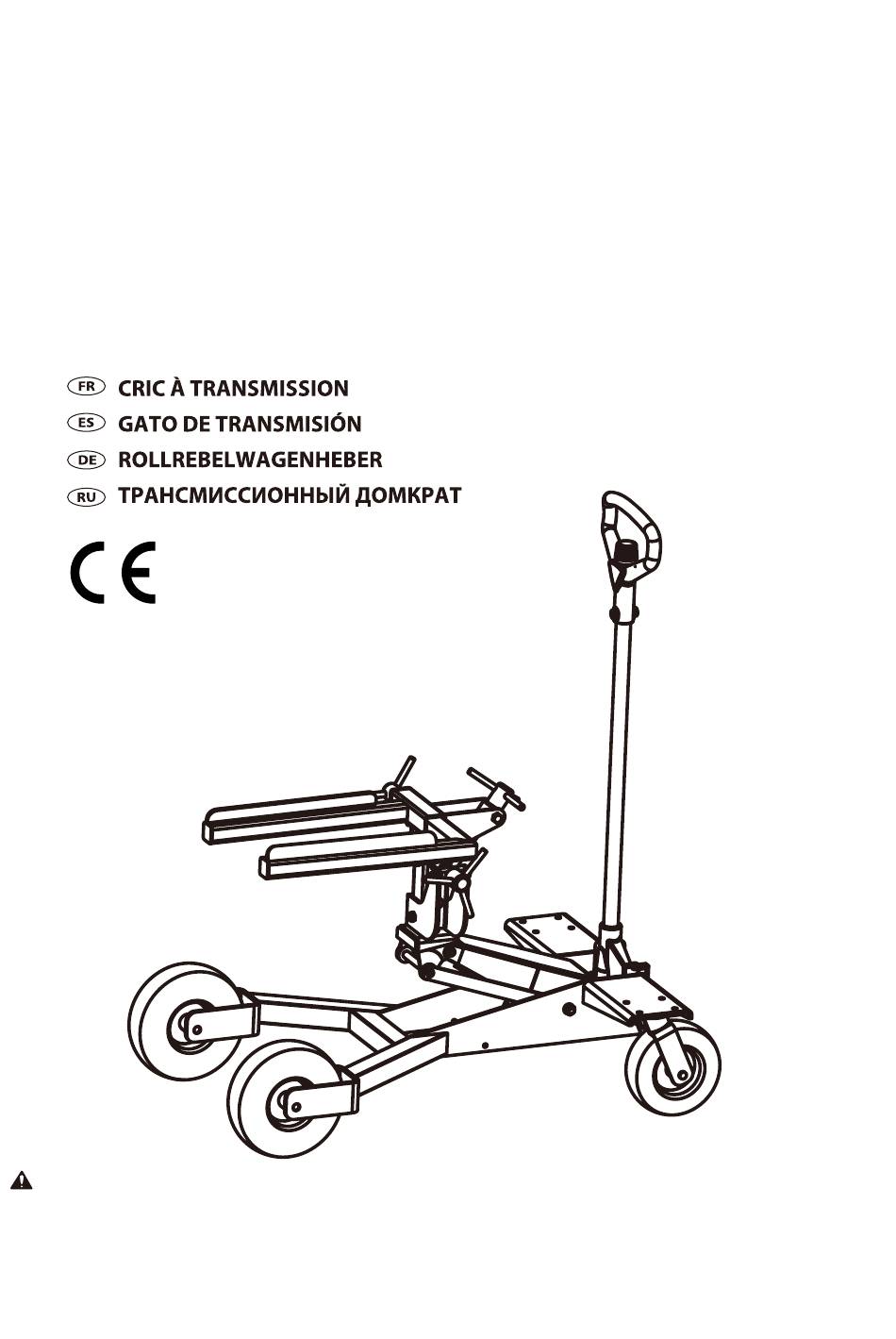

- Page 1 Item:TXJ1001 Capacity: 0.34 Ton TRANSMISSION JACK OWNER’S MANUAL WARNING! Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 Operation Instruction 1. Move the transmission jack to the right place. 2. Turn on the handle clockwise, turn off the release value rod,operate the handle up and down to make the upper frame go up properly. 3. Make the upper frame of the transmission jack positioned under the right supporting point of the engine, adjust the three handles of the upper frame to make it parallel with the support- ing point of the engine.
- Page 3 Drawing 1...
- Page 4 Parts 1 Part No. DESCRIPTION air-inflated rubber wheel washer Spring washer 14 Nut M14 Spring washer 12 Screw M12×25mm Stop lever Screw M8×20mm Spring washer 8 Spring washer 18 Contact roller C-clip Ø12mm Handle socket screw Handle Socket Power unit assembly Steel ball bearing Ø6mm Oil plug Universal joint assembly...
- Page 5 Drawing 2 Parts 2 Part No. Description Handle Needle Roller Bearings Bolt M12X20 Right Arm Assembly Bolt Square Tube Spring Column Pin 4X18 Locknut M12 Spring Column Pin4X30 Base Assembly Left Arm Assembly Middle Screw Components Swivel Knob Assembly Swivel Knob Assembly 2 Linking Block 1 Linking Block 2 Sleeve...
