Unitech KP3800 Specifications

KEYBOARDS

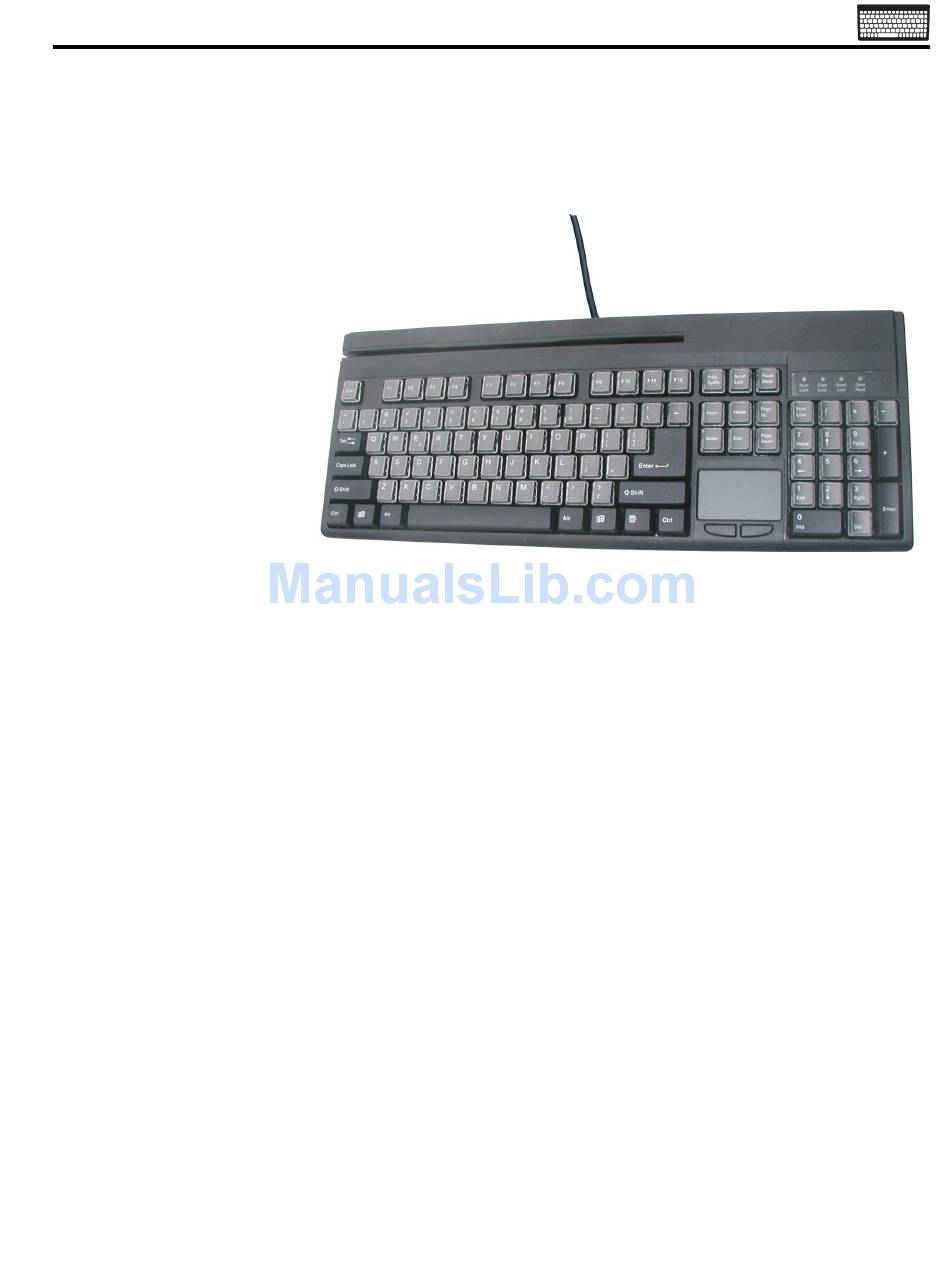

KP3800 Keyboard
The KP3800 is a part of a family of Unitech multifunc-
tion keyboards with 100 keys enhanced layout. The
KP3800 features re-legendable keys, integrated
mouse pad, integrated
Magnetic Stripe Card Reader
(or Bar Code Slot Reader),
and built-in Bar Code scan-
ning input port. The key-
boards also feature a mini-
mal footprint and protection
against damage from liquid
spillage.
Of the KP3800's 100 keys, 88 are programmable and 84 are relegendable.
With Unitech's Keyboard Configuration Manager software, each of the 88 programmable keys
can be easily configured to be modifiable by virtually all the other keyboard keys (not only Shift S,
but also Ctrl S or even LS, for instance) so that each key can represent 97 unique inputs.
Relegending the KP3800's keys is as easy as popping off the clear key cap and inserting a new key
label.
Keyboard Configuration Manager also makes it easy to define the output from the built-in mag-
netic stripe slot reader or from a scanner attached to the KP3800's built-in scanner port to exactly
the format you require.

Input Modes

The keyboard has two modes to accept a variety of input devices.
•
A DB-9 type squeeze release port at the upper right hand side of the keyboard supports
undecoded bar code scanner and RS232 input. Decoded scanners must be capable of Wand
Emulation (undecoded scanner) output. Wand, CCD, and laser scanners are supported.
•
A card-reader slot at the upper-left corner of the keyboard provides an enclosure for a built-in
dual-track magnetic card reader (included). Alternatively, this card-reader slot can support a
single-track or triple-track magnetic card reader, or a bar code slot reader.
