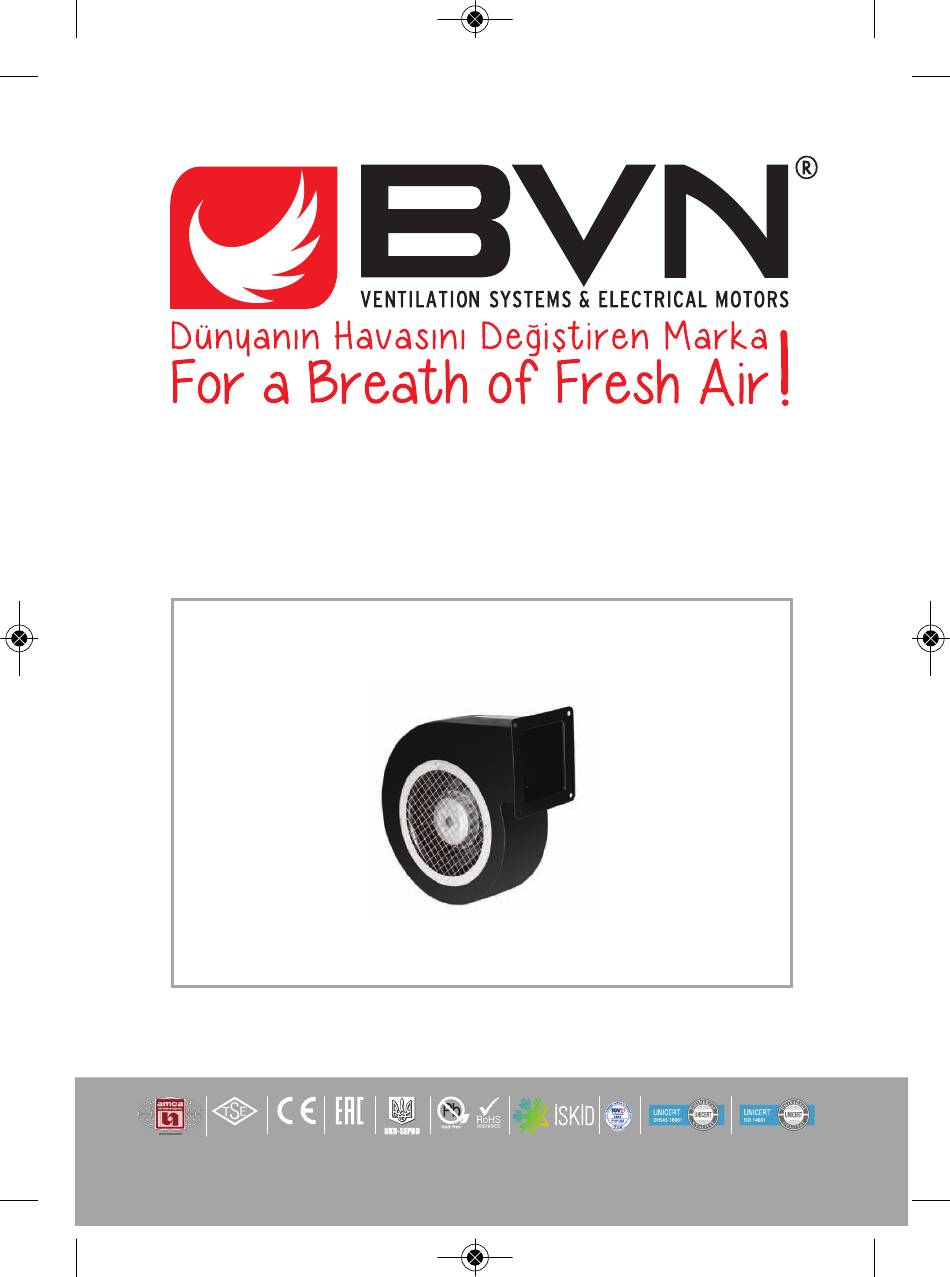

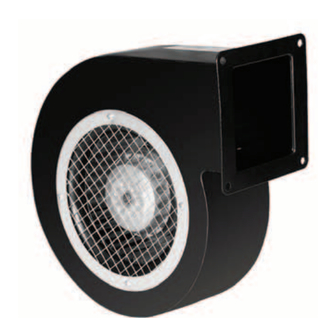

- Page 1 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 1 USER’S MANUAL & CERTIFICATE OF WARRANTY BDRS 125-50 140-60 120-60 160-60 AC CENTRIFUGAL BLOWERS (SHEET METAL BODY) Products with BVN brand are manufactured in production facilities with ISO 9001: 2015 Quality Management System certificate.
- Page 2 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 2 MANUFACTURER’S / IM PORTER’S NAME BAHÇIVAN ELEKTRİK MOTOR SAN. TİC. LTD.ŞTİ. Ömerli Mah. Hadımköy-İstanbul Cad.No: 147 ADDRESS Arnavutköy/İSTANBUL PHONE / FAX 0212 771 48 48 / 0212 771 48 42 COMPANY REPRESENTATIVE’S SIGNATURE/SEAL PRODUCT’S TYPE BRAND MODEL...
-
Page 3: Certificate Of Warranty
BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 3 & USER’S MANUAL CERTIFICATE OF WARRANTY SAFETY WARNINGS • These fans contain rotating parts and electrical connections. Therefore, pay attention to safety warnings during their assembly, maintenance and operation. • Electrical connections and assembly must be made by authorized persons. - Page 4 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 4 • To avoid any risk of accidental start-up of the thermal breaker, this device must not be pow- ered by an external switching device, such as a timer, or connected to a circuit that is regularly switched off and opened by the utility.
-
Page 5: Technical Features
BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 5 & USER’S MANUAL CERTIFICATE OF WARRANTY TECHNICAL FEATURES IP 44 CL B TYPE BDRS 125-50 BDRS 120-60 BDRS 140-60 BDRS 160-60 TYPE D/dak dB(A) BDRS 125-50 0,35 2450 BDRS 120-60 0,38 2250 BDRS 140-60... - Page 6 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 6 ASSEMBL 1 Device for mounting holes and the distance from the mouth to the device according to the product structure of the flange. 2 Put the device with insulating material between two product. 3 Instal the product with the help of assembly equipments as nut and bolt . 4 As shown in Figure 4 is equivalent to the product channel, connect the mouth area.
- Page 7 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 7 & USER’S MANUAL CERTIFICATE OF WARRANTY CONNECTION / SINGLE-PHASE CONNECTION • Products should be installed only by authorized persons. • Fans should be mounted outside the window or wall . • If exposed inputs and outputs of products , with an aperture should be avoided by closing the entry of foreign substances •...
- Page 8 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 8 USAGE BDRS series radial centrifugal fans in generally offer perfect solutions for in- dustrial and commercial applications for local cooling and heating systems. In mechanical refrigeration, boilers solid fuel, or air conditioning, the DC motor cooling, plastic machines, hosiery machines, the cooling of the electrical panel, laboratories, in residential and commercial spaces.
- Page 9 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 9 & USER’S MANUAL CERTIFICATE OF WARRANTY DEFECTS AND HOW TO FIX THEM ABNORMAL POSSIBLE CAUSE HOW TO FIX SITUATION TOO MUCH SOUND ROTOR IMBALANCE CHANGE THE ROTOR (NOISE) MOTOR IS DAMAGED CHANGE THE MOTOR THE DEVICE IS CONDENSATOR CHANGE THE...
- Page 10 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 10 • The products should be carried one by one carefully. They shall not be thrown or carried carelessly from hand to hand. Aftertaking the product out of its package; • The delivered product should be checked. •...
-
Page 11: Warranty And Service
Warranty Dee 2. Use your product according to the user’s manual. The warranty provided by BVN does not cover the damages arising out of using the product under conditions other than its normal conditions of use. The following conditions are also not included in the warranty: 1. -
Page 12: Warranty Terms And Conditions
BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 12 WARRANTY TERMS AND CONDITIONS 1 The warranty period is 2(TWO) YEARS from the date of delivery . 2 The product including all its components is under the warranty of our company. 3 In case of defects within the warranty period ,the period spent in repairing is added to the warranty period.The repairing period is maximum 20 days. - Page 13 BDRS_klavuz2021.qxp_Layout 1 9.02.2021 12:38 Page 13 & USER’S MANUAL CERTIFICATE OF WARRANTY...
