Technaxx
* User Manual

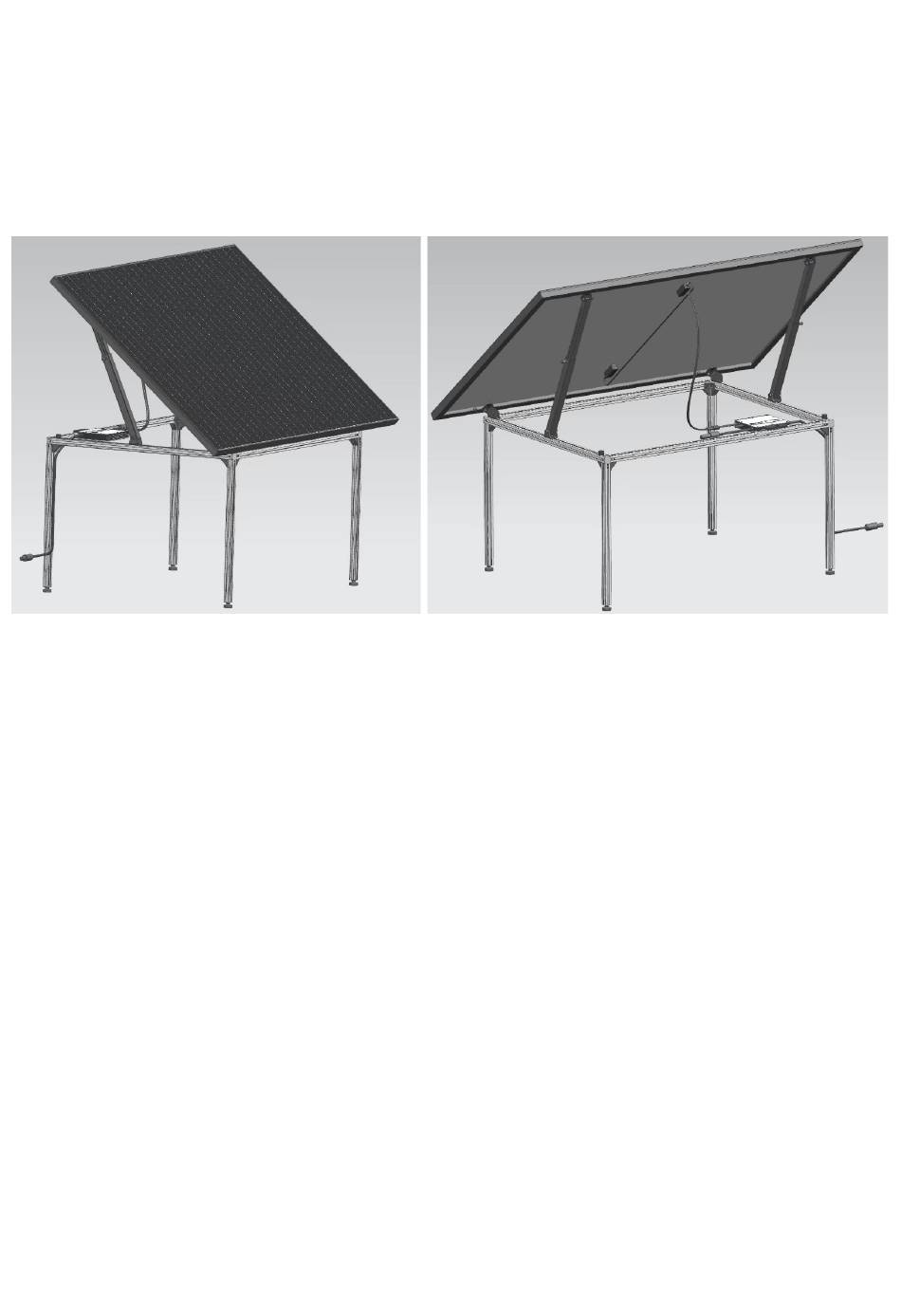

Solar Table Power Plant 400W TX-250
IMPORTANT, KEEP FOR FUTURE REFERENCE: READ CAREFULLY
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
Specifications subject to change without notice - please make sure you are using the
latest manual available on the manufacturer's website.
1
Model: TX-250; Article No. 5082; 10/2023
Advertisement
Table of Contents
Summary of Contents for Technaxx TX-250
- Page 1 ® Technaxx * User Manual Solar Table Power Plant 400W TX-250 IMPORTANT, KEEP FOR FUTURE REFERENCE: READ CAREFULLY Before using the appliance for the first time, please read the instructions for use and safety information carefully. This appliance is not intended for use by persons (including children) with reduced...
-
Page 2: Table Of Contents
Support ..........24 leg ..........12 Care and maintenance ..... 24 Connecting the micro inverter ..12 Storage ..........24 Connect solar panels Declaration of Conformity ....25 connection) ........13 Disposal ........... 25 Model: TX-250; Article No. 5082; 10/2023... -
Page 3: Important Notes At The Start
For changes in the environment, you must always consult a qualified electrician. Assembly, installation and electrical connection. Explanation of the pictograms used Read the user manual Warning Caution, risk of electric shock. Caution, hot surface Model: TX-250; Article No. 5082; 10/2023... -
Page 4: Note
⚫ Place the product on an easily accessible, level and sufficiently stable surface. ⚫ Do not place the product on or near hot surfaces (grill, stove, heater, etc.). ⚫ Treat glass surfaces with care. Model: TX-250; Article No. 5082; 10/2023... -
Page 5: Safety Instructions
⚫ The manufacturer assumes no responsibility in the event of incorrect use resulting from failure to follow the instructions for use. ⚫ Modification or alteration of the product will affect the product safety. Caution: Risk Model: TX-250; Article No. 5082; 10/2023... - Page 6 ⚫ If you mount the micro inverters at a great height, avoid possible fall risks. ⚫ Do not insert electrically conductive parts into the plugs and sockets! Tools must be Model: TX-250; Article No. 5082; 10/2023...
-
Page 7: Caution Measures During Installation
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products. -
Page 8: Product Details
4x Table leg 1x Connection cable 5m 1x User manual Product overview Solar Table Power Plant Solar Panel (Table Top) DC Cable (Solar Panel) Telescope Arm Micro Inverter (HMS-400W-1T) Adjustment Pin Connection Cable Locking Screw Model: TX-250; Article No. 5082; 10/2023... -
Page 9: Preparation
⚫ Meter replacement required: A bi-directional meter must be present or depending on what your electricity provider specifies. Simple electricity meters are often not sufficient. ⚫ If you are unsure, please have the local conditions checked, if necessary, or contact your network operator for information. Model: TX-250; Article No. 5082; 10/2023... -
Page 10: Assembly
Be careful not to damage the glass front. 2. Take one of the four legs and slide it on to the first corner of the table. Model: TX-250; Article No. 5082; 10/2023... - Page 11 Use 1x 5mm Allen key 4. Repeat above steps with the other 3 legs. 5. The leg with the clips for the connection cable needs to be installed like in the picture below, next to the micro inverter. Model: TX-250; Article No. 5082; 10/2023...
-
Page 12: Connection Cable Routing/Mounting
Then disconnect the DC inputs. CAUTION! Install disconnect devices on the AC side of the micro inverter. CAUTION! It is strongly recommended to install surge protectors in the appropriate meter box. Model: TX-250; Article No. 5082; 10/2023... -
Page 13: Connect The Solar Panels (Dc Connection)
To mount a Wieland connector, the pre- assembled BC05 connector system must be removed. Note: Other plug connections / systems may be possible, provided they are suitable for outdoor use and the current levels involved. Model: TX-250; Article No. 5082; 10/2023... -
Page 14: Set Up The Table
Screw it clockwise until the nut reaches the table leg. 4. Repeat step 1-3 for the other 3 legs if necessary to reach the wanted height or balance the table. Tip: Use a spirit level to check that the table surface is leveled. Model: TX-250; Article No. 5082; 10/2023... -
Page 15: Use As Power Plant
6. The solar panel will automatically lock into the next angle of 30° as you continue to lift it. Tighten the locking screws. 7. To reach the 35° angle, repeat steps 3 to 5. Tighten the locking screws. Model: TX-250; Article No. 5082; 10/2023... -
Page 16: First Commissioning
→ no grid feed DC connection voltage lower 22V Flashing fast green (1s): AC connection & → grid feed DC connection voltage over 22V No LED Flashing/LED off: No DC connection/solar panels → no grid feed connected Model: TX-250; Article No. 5082; 10/2023... -
Page 17: Wifi Configuration
AP (WiFi=DTUBI-xxxxxxxx) of the micro inverter. Use the WiFi password on the back of the inverter. Go to O&M page (bottom middle icon ). Click on Network configuration and the APP connects with DTU. Configure the WiFi of your micro inverter. Model: TX-250; Article No. 5082; 10/2023... -
Page 18: Webpage
S-Miles Cloud (Hoymiles Monitoring Platform) at https://world.hoymiles.com. Therefor use your login which you created via S-Miles Installer APP registration. • Enter account = Login account, username created by APP. • Enter password = Password created for APP login. Model: TX-250; Article No. 5082; 10/2023... -
Page 19: Troubleshooting
Avoid temporary repairs. All repairs should be made only with original spare parts. Each micro inverter should be protected by a circuit breaker, but central disconnect protection is not required unless specified by national standards, or by the responsible network operator. Model: TX-250; Article No. 5082; 10/2023... -
Page 20: Technical Specifications
Rated frequency/rated frequency range 45-55 (under 50Hz @ 220 V & 230 V) (Hz) Power factor >0.99 standard 0.8 leading..0.8 delayed Output current harmonic distortion ≤3% Efficiency, safety and protection CEC weighted efficiency 96.70% Model: TX-250; Article No. 5082; 10/2023... - Page 21 Frequency band 2.4GHz Radiated transmission power max. 69.2mW Topology Galvanically Isolated HF Transformer Monitoring Micro Toolkit or S-Miles Cloud Compliance VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 Model: TX-250; Article No. 5082; 10/2023...
-
Page 22: Appendix
Iz = In + Ig Iz Permissible current carrying capacity of the line In Rated current of the protective device (circuit breaker) Ig rated current of the power generation system Model: TX-250; Article No. 5082; 10/2023... -
Page 23: Load Capacity Of Copper Lines
DIN VDE 0298-4. Example before fuse replacement Example after fuse replacement Circuit breaker electrical consumer Mini solar system 600W * max. permissible line load is 16.5A Model: TX-250; Article No. 5082; 10/2023... -
Page 24: Determination Of The Line Reserve
⚫ Use protective covers to cover the product. ⚫ Always store the product in a dry place. ⚫ Store the product out of reach of children, securely closed and at a storage temperature between +5 °C and +20 °C (room temperature). Model: TX-250; Article No. 5082; 10/2023... -
Page 25: Declaration Of Conformity
Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal. Dispose of cardboard and paperboard in the waste paper. Foils should be submitted for recyclables collection.
