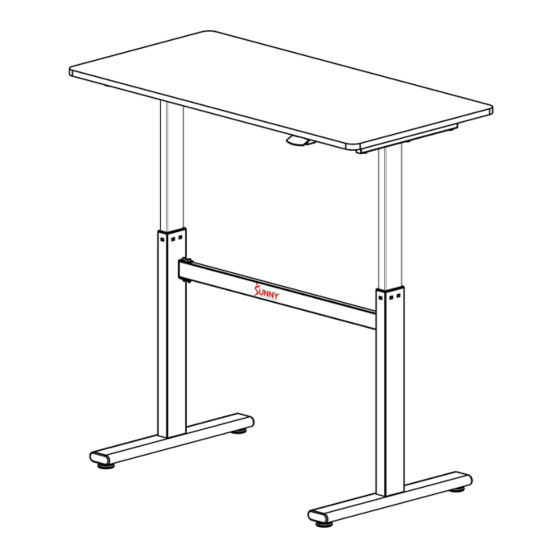

MULTI-PURPOSE AIR-DRIVE
ADJUSTABLE STANDING DESK
SF-A023001
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny SF-A023001
Summary of Contents for Sunny SF-A023001

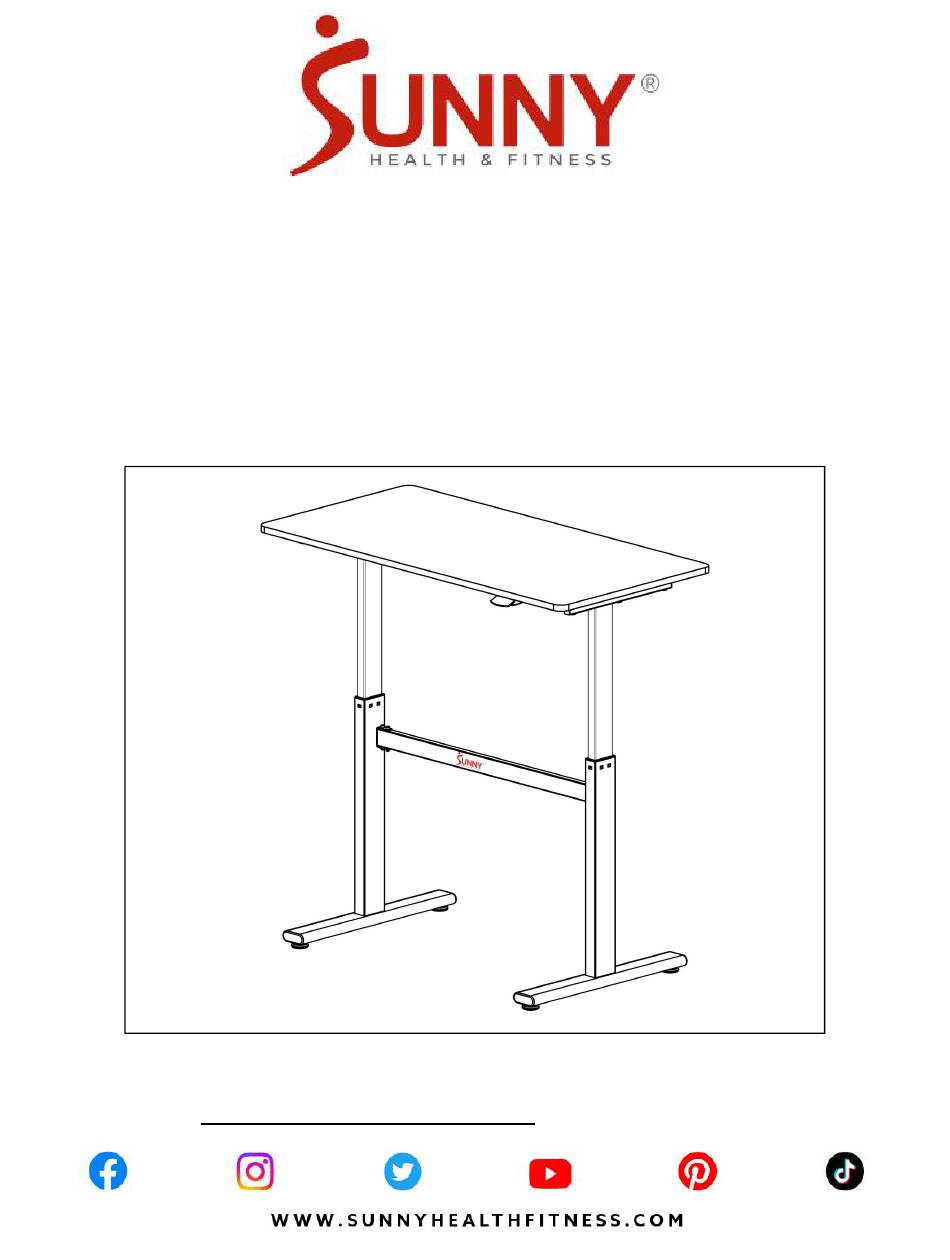

- Page 1 MULTI-PURPOSE AIR-DRIVE ADJUSTABLE STANDING DESK SF-A023001 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using this product, basic precautions should always be followed, including the following: Read all instructions before using this equipment. WARNING – To reduce the risk of burns, fire, or injury to persons: 1. Please assemble in strict accordance with the instructions. 2. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Main Frame Table Board Set Foot Tube Set Hardware Package THANK YOU Card Manual... -
Page 5: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Open the carton and remove contents. NOTE: DO NOT cut the 2 Packing Belts (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: Attach the 2 Foot Tube Sets (No. C) to the Main Frame (No. A) by using 8 Bolts (No.
- Page 8 HOW TO ADJUST THE DIRECTION How to Raise the Table Board Move the Lifting Wrench (No. D02) upward with your right hand and hold it. Then use your left hand to lift the Table Board (No. E01), the Table Board (No. E01) will rise. To stop the Table Board (No. E01) from rising, release the Lifting Wrench (No.
-
Page 9: Exploded Diagram
EXPLODED DIAGRAM... -
Page 10: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Table Bracket Bolt M6*25 Left Outer Upright Tube Bolt M6*70 Right Outer Upright Tube Washer Inner Upright Tube Lock Nut Foot Tube Sleeve Connection Tube Lifting Wrench Table Rack Cross Tube Wrench Bracket Gas Spring Roller Frame Gas Spring Fixed Shaft...
