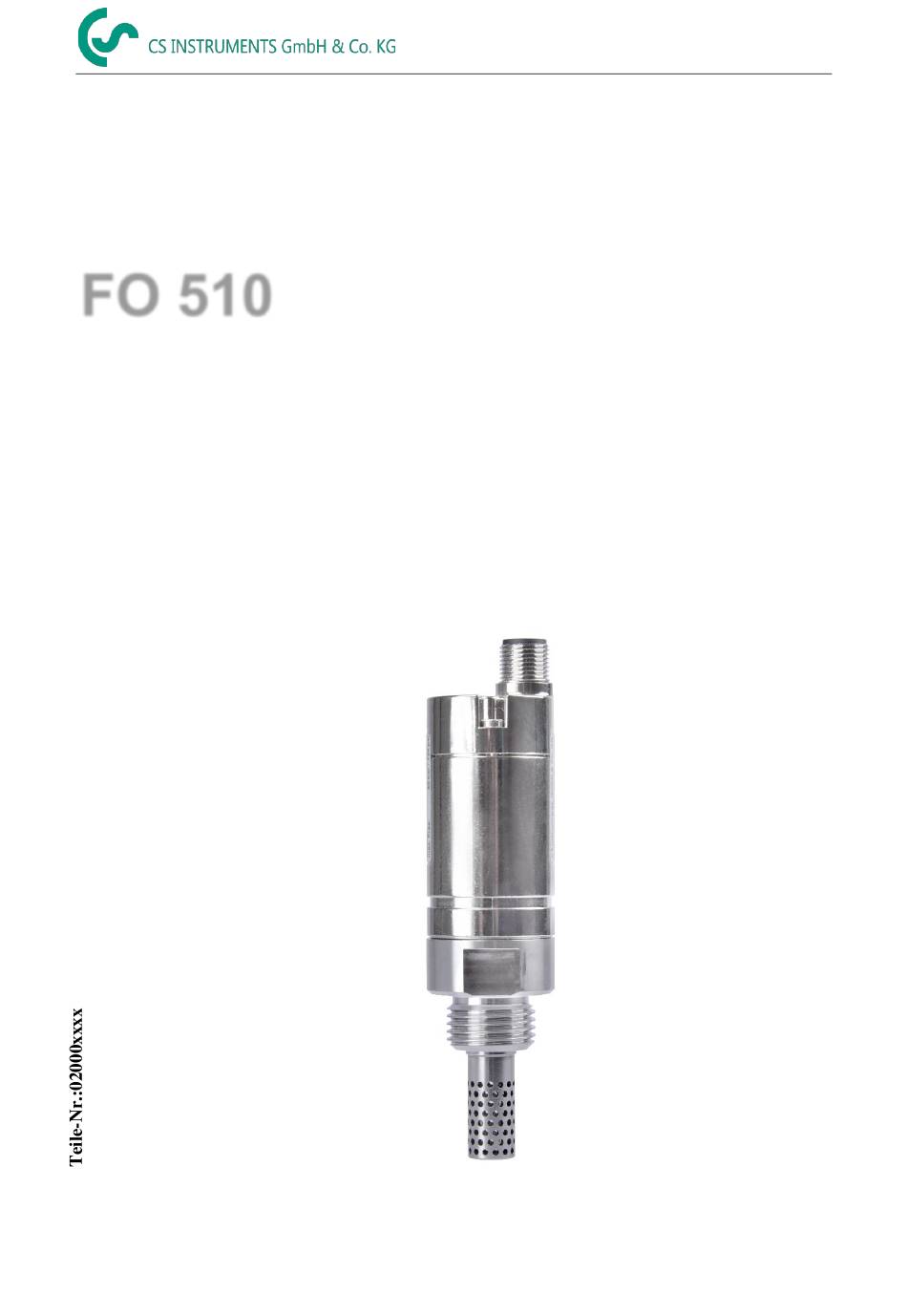

FO 510
CS INSTRUMENTS Moisture in Oil Transmitter FO510
The
with two
analog outputs for different measured variables and RS 485 Modbus interface as
standard, enables reliable and long-term stable measurement in technical oils.
Designed for measurements such as moisture content in transformer oil, motor oil,
lubricating oil, hydraulic oil and diesel fuels. In addition to a highly accurate
measurement of water activity (aw) as well as temperature (T), the FO 510 calculates
the absolute water content (x) in PPM.
FO510 V1.00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FO 510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CS Instruments FO 510

  • Page 1 Designed for measurements such as moisture content in transformer oil, motor oil, lubricating oil, hydraulic oil and diesel fuels. In addition to a highly accurate measurement of water activity (aw) as well as temperature (T), the FO 510 calculates the absolute water content (x) in PPM.

  • Page 2: Table Of Contents

    Inhalt Foreword ..........................3 Intended use ........................3 Safety instructions ......................4 Description ......................... 4 Technical data ........................6 Abmessungen / elektr. Anschluss ..................7 Installationshinweise ......................8 Modbus ..........................9 Register Mapping der Werte-Register: ................ 9 Geräte Einstellungs-Register ..................10 Modbus Settings (2001…2006) ..................

  • Page 3: Foreword

    Foreword Dear Customer, Thank you for choosing the FO 510. Please read these installation and operating instructions carefully before mounting and commissioning and follow our instructions. The FO 510 will only function properly and operate safely if the instructions and notes described are strictly observed.ten Water content (x) in PPM.

  • Page 4: Safety Instructions

    Opening the device, improper handling or use of force will void the warranty! • Description The FO 510 enables reliable and long-term stable moisture measurement in technic Moisture in oil can be measured and expressed in two different ways: as an absolute value or as a relative value.
  • Page 5 The required parameters can either be specified when ordering the FO 510 or subsequently integrated in the FO 510 using the CS Service software. Advantages of the FO 510: • Fast response time • Highly accurate measurement of water activity (aw), as well as process temperature.

  • Page 6: Technical Data

    Technical data Measuring range humidity -0..1 a Accuracy (0..0,9 a ±0.02 Accuracy (0..0,9 a ) bei 23°C Accuracy (0,9..1,0 a typically ± 0.03 a ati 23°C Measuring range temperature: 0.. 100°C Accuracy ±0.3°C Perm. oil temperature: -20..100°C Perm. ambient temperature: -20 ..70°C -40…80 °C Storage temperature...

  • Page 7: Abmessungen / Elektr. Anschluss

    Dimension / elektr. Connection Dimension M12 Connection G ½“ Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 RS485 (B) RS485 (A) output output Positive supply voltage 24VDC (10...30 VDC) smoothed RS485 (A) Modbus A (+) Negative supply voltage RS 485 Modbus B (-)

  • Page 8: Installationshinweise

    Installationshinweise • The direct installation of the sensor is only allowed in the unpressurized state of the system. • The sensor must be tightened with a torque of 25 - 30 Nm. • Tightness of the connection must be checked and ensured. •...

  • Page 9: Modbus

    Modbus The dew point sensor FO 510 comes with a Modbus RTU Interface. Before commissioning of the sensor the communication parameters Modbus ID, Baudrate, Parity und Stop bit must be set in order to ensure the communication with the Modbus master.

  • Page 10: Geräte Einstellungs-Register

    Registermapping device settings Modbus Settings (2001…2006) Modbus Modbus No.of Default Data Type Description Read Write Unit /Comment Register Address Byte Setting Modbus ID 1…247 2001 2000 UInt16 Modbus ID 2002 2001 UInt16 Baudrate 0 = 1200 1 = 2400 2 = 4800 3 = 9600 4 = 19200 5 = 38400...

  • Page 11: Kalibrierung / Justage

    - or if serial numbers in the device have been changed, damaged or removed.. The warranty period for FO 510 is 12 months. Unless otherwise defined, 6 months apply to accessories. Warranty services do not cause an extension of the warranty period.
  • Page 12 Erklären in alleiniger Verantwortung, dass das Produkt Declare under our sole responsibility that the product Feuchtesensoren FO 510 Dew point sensors FO 510 den Anforderungen folgender Richtlinien entsprechen: We hereby declare that above mentioned components comply with requirements of the following EU directives: Elektromagnetische Verträglichkeit...
  • Page 13 Kontakt / CONTACT CS INSTRUMENTS GmbH & Co.KG Geschäftsstelle Süd / Sales Office South / Zindelsteiner Str. 15 D-78052 VS-Tannheim Tel.: +49 (0) 7705 978 99 0 Fax: +49 (0) 7705 978 99 20 Mail: info@cs-instruments.com Web: http://www.cs-instruments.com Geschäftsstelle Nord / Sales Office North...
