Summary of Contents for ErgoCentric upCentric Power & Data Rail

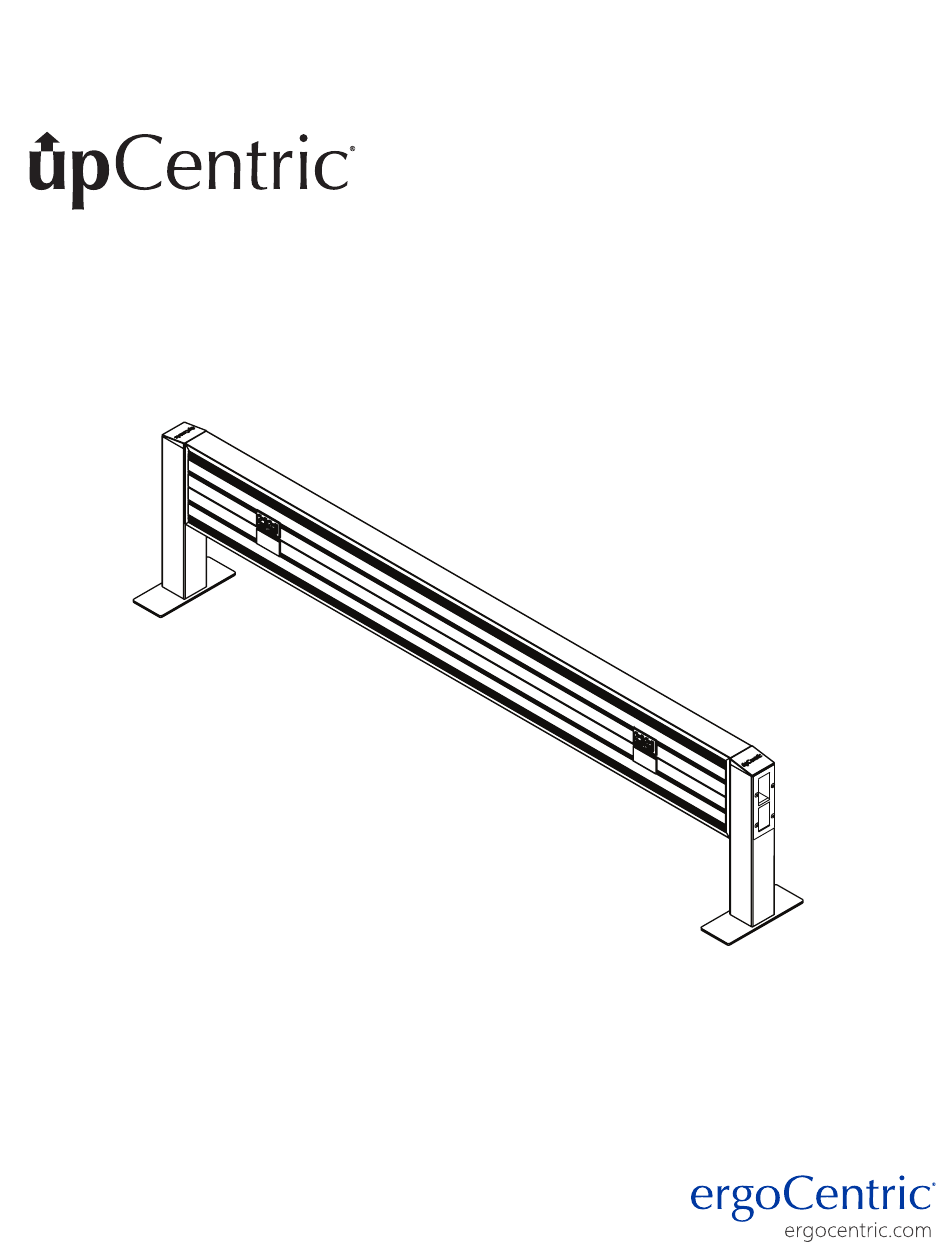

- Page 1 Power & Data Rail...
-
Page 2: Table Of Contents
Table of Content Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Power &... -
Page 3: Components
Installation Guide upCentric Power & Data Rail Components Prior to commencing the installation, these instructions thoroughly . Utilize the accompanying diagrams to verify that all the necessary components for your installation were included in your order . It is advisable not to dispose of the packaging until you are completely satisfied with your products functionality. - Page 4 Installation Guide upCentric Power & Data Rail Group B: Leg parts - found in leg packaging 120° - Leg End Leg 180° Leg 90° Leg T - Leg X - Leg Y - Leg Leg cap End cap 120° End cap Divider plate Divider plate 120°...
-
Page 5: Power & Data Rails
Installation Guide upCentric Power & Data Rail Power & Data Rail upCentric Power & Data Rail is designed to optimize floorplans with a clean and tidy look by providing organized power & data for each individual desk. upCentric Power & Data Rail eliminates the need for messy wires on the floor, reducing trip hazards and improving workplace safety . -
Page 6: Leg Assembly And Rail Preperation
Installation Guide upCentric Power & Data Rail Leg Assembly and Rail Preperation Step 1: Assemble all Connector Legs: a) Attach foot to bottom of the leg with flat head screws (Q). b) Set aside caps (L), jumpers (N), divider plates (M), pan head screws (R), and infeed leg splitter (P) for future use. - Page 7 Installation Guide upCentric Power & Data Rail Build Power Infeed Legs: a) Wall Power Infeed (WPI) Legs: i. Attach foot to bottom of each leg using flat head screws (Q). ii. Secure the Infeed plate using pan head screws (R). WPI - Wall Power Infeed WPI - END 90°...
- Page 8 Installation Guide upCentric Power & Data Rail Step 2: Remove Cover Panels and VGA Kits: a) Remove the Cover Panels from all rails and set them aside . Raise the panel from its lower edge and then pull the panel from the center until the bottom hook disengages from the lower lip of the rail .
-
Page 9: Assemble The Power & Data Rail Systems
Installation Guide upCentric Power & Data Rail Assemble the Power & Data Rail Systems Step 3: Assemble the first rail - “Power Infeed Rail” a) Hook both ends of the first rail to your power infeed leg and to the next leg in the layout . - Page 10 Installation Guide upCentric Power & Data Rail Step 4: Installing the next Rail Install the subsequent rails and legs according to the layout, repeating the steps outlined in Step 3 . Continue this process until you have completed the entire layout . Configuration 180°...
- Page 11 Installation Guide upCentric Power & Data Rail Step 5: Install Jumpers to interconnect all rails: a. Begin with the First Rail and install a Jumper between the first and second rail . Run the Jumper through the connector leg, and attach each end to the nearest Junction Block (D). b .
- Page 12 Installation Guide upCentric Power & Data Rail 4 - way routing 3-way routing Jumper cables Power accommodates two feed Jumper jumper cable connections cables Power feed Accommodates two When 3-way routing (T leg or Y When 4-way routing ( X leg), jumper cable connections use three jumpers.
-
Page 13: Installing Leg Divider Plates
Installation Guide upCentric Power & Data Rail Step 6: Install Leg Divider Plates: Place the leg divider plates into all connector legs, ensuring that the tabs rest on top of the Data Cable Troughs in the rails, effectively covering all Power Jumpers . -
Page 14: Wall Power Infeed
Installation Guide upCentric Power & Data Rail Step 7: Connect and test the system: Note: Power Infeed Cable must be installed before performing this step . Power Infeeds must be installed by a licensed electrician . Please see Power Infeed Electrical Installation guide for details . Wall Power Infeed: a) Route the Power Infeed Cable into the system through the lower opening on the Infeed plate and connect it to the first power block. -
Page 15: Ceiling Power Infeed
Installation Guide upCentric Power & Data Rail b . Ceiling Power Infeed: i . Position the ceiling pole on top of the CPI leg, inserting the four posts into the corresponding holes at the bottom . ii. Secure the pole to the ceiling using the Ceiling bracket (T). Attach ceiling bracket to T-frame ceiling directly above power leg . -
Page 16: Run Data Cables
Installation Guide upCentric Power & Data Rail Run Data Cables Step 8: Run Data Cable into the Rail System (Skip to step 9 if data cables are not used with the rail) a) Wall Power Infeed Legs: i . Feed the Ethernet Cables into the system through the upper opening on the Infeed plate . - Page 17 Installation Guide upCentric Power & Data Rail b . CPI Legs: i . Feed the Ethernet cables down the Ceiling pole, using the channel opposite the power cable . ii . Pull the cables down through the pole and into the First Rail and through entire system iii .
-
Page 18: Finishing The Assembly
Installation Guide upCentric Power & Data Rail Finishing the Assembly Step 9: Install Cover Panels a) Run wires through openings in the Voice/Data Plate (H) in the cover panel, then reinstall the cover panel. b) Use adaptors from VGA adaptor Kits (F) to fit ethernet cable ends into the Voice/Data Plate. c) Cover all unused data port windows with solid window covers from VGA kits Step 10: Installing Leg Caps: Install the leg caps to provide a finished appearance and protection to the leg ends. - Page 19 ® ph: 1 866 GET ERGO (438-3746) | 905 696-6800 fx: 1 800 848-5190 | 905 696-0899 service@ergocentric . c om ergocentric . c om ergoCentric and upCentric is a registered trademark of ergoCentric Inc . ® ®...
