WARNING: ELECTRICAL GROUNDING INSTRUCTIONS This
appliance is equipped with a three-prong (grounding) plug for your
protection against shock hazard and should be plugged directly into
a properly grounded three-prong receptacle.
Note: This blower kit should be used with 32" fireplace system models: LFP33, CGFP28, FPVF33,
VSGF28, VYGF33, (CG)EFP33, VCGF30, VSGF33, or VTGF33 Series, or Stove model: S39T Series.
Parts included with this kit
Part No.
103581-02
101614-02
101398-03
M11084-38
104903-01
101629-01
103650-01
103651-01
Tools Required
• Flat Blade Screwdriver
• Phillips Screwdriver
If any of these pieces are missing or damaged, or if the installation instructions for your fireplace or
stove are not included in this manual, contact the dealer where you purchased this kit or DESA at
1-866-672-6040 for referral information.

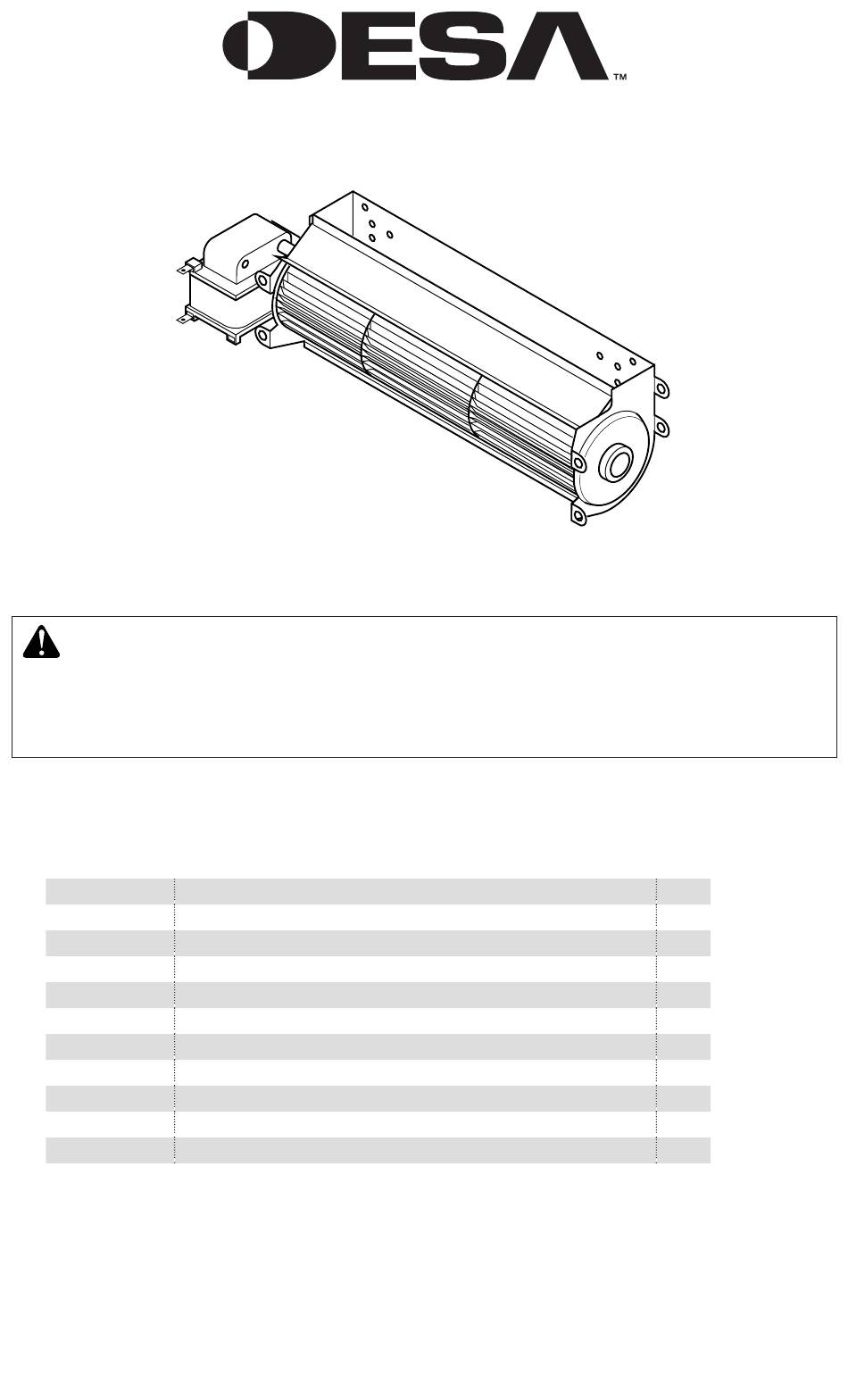

GA3650TB Blower Accessory
INsTAllATIoN INsTrUcTIoNs
Description
Instruction Sheet
Speed Control with Power Cord
Blower
Mounting Hardware Kit (includes parts below)
Switch and Cover Assembly
Wire Harness
#8 x 3/8" Sheet Metal Screws
Wiring Diagram Decal
Plastic Hole Bushing
Control Knob
Lock Nut
Qty
1
1
1
1
1
1
5
1
2
1
1
Advertisement
Table of Contents
Related Manuals for Desa GA3650TB
Summary of Contents for Desa GA3650TB
- Page 1 If any of these pieces are missing or damaged, or if the installation instructions for your fireplace or stove are not included in this manual, contact the dealer where you purchased this kit or DESA at 1-866-672-6040 for referral information.
- Page 2 1. Remove fireplace screen or front glass per the INsTAllING Blower instructions in operation manual supplied with Accessory IN A 32" fireplace. FIreplAce sysTem 2. If logs are installed, carefully remove the logs and set aside, noting the properly mounted IMPORTANT: Read all installa- location of each.
- Page 3 7. Place the blower against lower rear wall INsTAllING Blower of firebox outer wrapper with the exhaust Accessory IN A 32" port directed upward. Align the holes in top FIreplAce sysTem mounting tabs of blower with holes in wall of wrapper (see Figure 3, page 4).
- Page 4 6. While supporting speed control, secure control INsTAllING Blower shaft with lock nut by pushing and turning Accessory IN A 32" lock nut with pliers clockwise until it is tight FIreplAce sysTem against front panel. Place control knob pro- vided on shaft (see Figure 4). Continued Note: Some remote ready fireplace models have 12.
- Page 5 If your fireplace system installation is re- INsTAllING Blower , install one plastic bushing provided cessed Accessory IN A 32" into the 1.5" hole near the middle of the FIreplAce sysTem left floor support bracket (see Figure 6). Route power cord through plastic bush- Continued ing.
- Page 6 Fan Switch Fan Switch (N.O.) Black Blue 110/115 V.A.C. Black Green Blower Motor White Wiring 120 Vac. 60 Hz. .90 Amps Diagram DESA International, Bowling Green, KY Figure 7 - Location of Wiring Diagram Decal 3" from Blower www.desatech.com 108321-01B...
- Page 7 Note: Your gas logs and thermostat blower will not INsTAllING Blower turn on and off at the same time. The fireplace may Accessory IN A 32" run for several minutes before the blower turns on. FIreplAce sysTem After the heater modulates to the pilot position, the blower will continue to run.
- Page 8 DESA warrants this product to be free from defects in materials and workmanship for one (1) year from the date of first purchase, provided that the product has been properly operated. This warranty is extended only to the original purchaser. DESA shall either replace the product or refund the full purchase price.
