Major tech MT182 Instruction Manual

1. Introduction

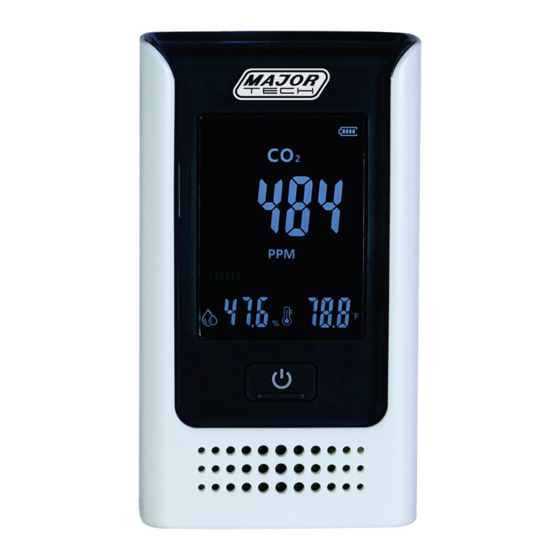

The MT182 is an air quality monitor detector with exquisite, concise and efficient detector which is integrated with CO2,
temperature and humidity detection. The device has a high precision CO2 sensor which can detect CO2 accurately and
sensitively. The MT182 not only displays the readings on a negative LCD display, but also has a colour bargraph indication to
indicate the CO2 grade level – Green is Good, Yellow is Normal and Red is Poor. The unit has a 1000mAh high capacity
rechargeable lithium battery and a battery icon indicating the battery status. The operation of the unit is simple and very
convenient to carry, especially to check the air quality from time to time in various areas.

2. Features

• NDIR (non-dispersive infrared) CO2 sensor.
• Check for Carbon Dioxide (CO2) concentrations.
• Indoor Air Quality displayed in ppm with Good (0 to 800ppm), Normal (800 to 1500ppm) & Poor (>1500ppm) indication.
• Easy to read large dual display.
• Simultaneously displays (CO2) concentrations, air temperature and humidity.
• Low battery indication.
3. Specifications
Function
CO2 Concentration Measurement
Temperature
Humidity
Battery
Charging
Working Temperature
Storage Temperature
INSTRUCTION MANUAL
MT182
Air Quality CO2 Monitor
Measurement Accuracy
0 to 5000ppm ±75ppm ±5% of reading
-10°C to 50°C ±1°C
±3.5%RH (20%RH-80%RH)
0 to 100%RH ±5%RH (0%RH-20%RH/
80%RH-100%RH)
1000mAH rechargeable lithium battery
Micro USB DC 5V 1A
-10°C to 50°C
-10°C to 60°C
Resolution
1ppm
0.1°C/°F
0.1%RH
