Digi-Code DC-5035 Installation Instructions

Model DC-5035 ( O\C\S – Transmitter 433MHz ), Model DC-5135 ( O\C\S – Receiver 24VAC / VDC 433MHz )
∙ Disconnect operator power before any installation or repair
∙ Always wear safety glasses
∙ Do not install radio controls on any commercial door
operator unless proper entrapment protection devices are
installed and functioning normally. Consult your operator
manufacturers manual for more information.
Your Digi-Code commercial O\C\S receiver and transmitter are designed to work with
most commercial door operators. NOTE: all transmitters are set with the even numbered
switches in the " ON ( Closed ) " position when they leave the factory, it is strongly
recommended that a different code be selected and set at the time of installation.
Please refer to the " Setting The Code Switch " section for instructions.

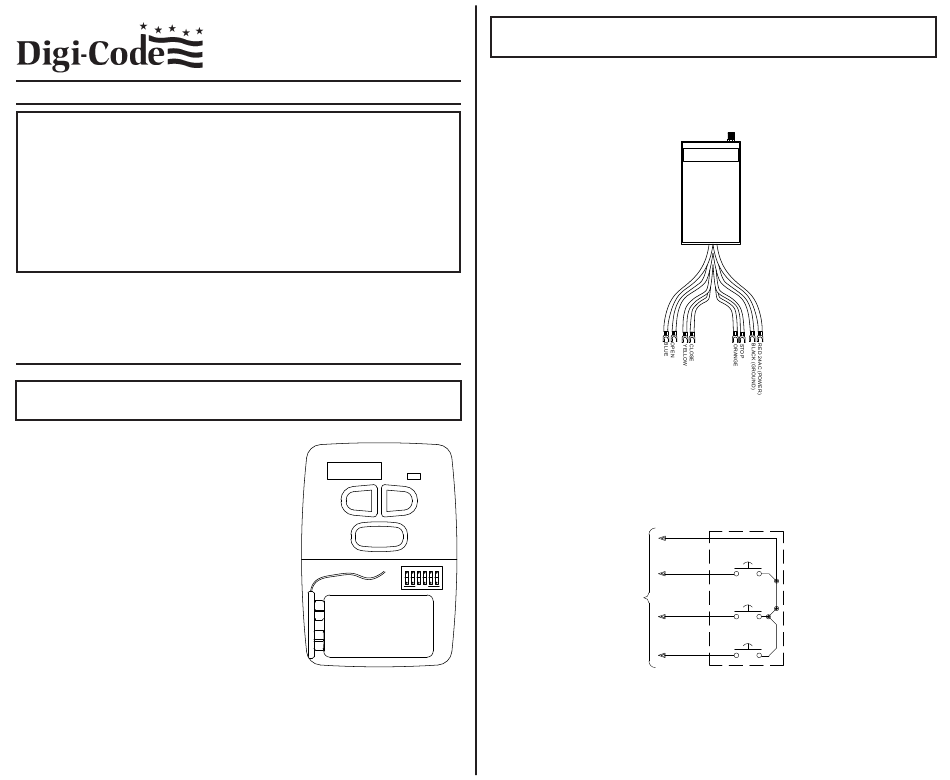

SETTING THE CODE SWITCH (FOR MODEL DC-5035 )
Remove the bottom section of the transmitter case
to access the six ( 6 ) position code switch. The digital
code is determined by the position of the six small
switches, numbered 1 through 6 located above the
battery. Any combination of " ON ( Closed ) " or "
OFF ( Open ) " positions can be selected. ( Note: The
switches are in the ON ( Closed ) position when the
switch is depressed towards the number side ). – See
Figure # 1.
Set code switch positions 1 through 6 to your personal
code scheme. We strongly urge that several code
schemes be avoided: ALL " ON " or 2,4,6 " ON ".
These positions are similar to our Manufacturers test
positions or are frequently used.
Snap the bottom half of the case back on and the
transmitter is now ready to be programmed into the
DC-5135 receiver.
INSTALLATION INSTRUCTIONS
OPEN \ CLOSE \ STOP ( O\C\S )
COMMERCIAL OPERATOR CONTROLS
WARNING:
SECTION # 1
Digi-Code
OPEN
STOP
FIGURE 1
The DC-5135 receiver functions as a 3-button station. We have provided three sets of
isolated contacts – normally open contacts for the " Open Button " ( Blue Wires ); normally
open contacts for the " Close Button" ( Yellow Wires ) and normally closed contacts for the
" Stop Button " ( Orange Wires ). See Figure # 2
The current 4 wire 3 button station should be wired as shown in Figure # 3. Make sure
that the wire that was used to connect the control station to the operator is 18 gauge or
heavier to avoid any operational problems. Mount the DC-5135 close to the door operator
by using the two slots located in the cover flanges. Select a location that is away from any
high voltage conduits or steel support beams which allows the antenna to be clear of
these obstacles as well.
CLOSE
1 2 3 4 5 6
OPEN
The receiver comes equipped with a co-ax antenna receptacle and a 4" antenna with a co-
ax connector. The antenna must be screwed directly into the receptacle, or to an outside
location (away from a metal structure) for a better receiver performance by using a 16
foot coaxial extension kit ( Part # DC-5165 ) available from your distributor.
SECTION # 2
DC-5135 RECEIVER WIRING INSTRUCTIONS
Digi-Code
WALL PUSHBUTTON STATION
Open
Close
Stop
Figure 3
Figure 2
