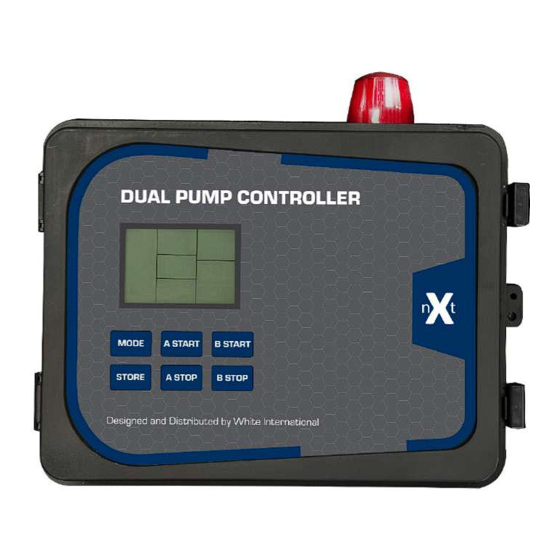

- Page 1 Auto Restart Pump Controller Dual Pump Protection and Control Module BIA-nXt-DPC 3-40 PN 811200 BIA-nXt DPC 3-11 PN 811201 Installation and Operation Manual BIA-nXt-DPC3 Instruction Manual V1.0...
-
Page 2: Shortcuts
At any time press the an ALARM TEST • Press MODE to scroll A-STOP button to mute button • Press A-STOP or B-STOP the alarm. It will now exit beep every 5 minutes. Resets after 24Hrs BIA-nXt-DPC3 Instruction Manual V1.0... - Page 3 Press STORE for 5 sec to save changes and exit the parameter In manual mode, press menu STORE MODE buttons for 5 seconds Page 13 BIA-nXt-DPC3 Instruction Manual V1.0...
-
Page 4: Introduction
Thank you for choosing a Bianco nXt-DPC (Dual Pump Control and protection module. The Bia nXt-DPC is a module intended to control and protect dual three phase pumps. The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pumps. -
Page 5: Table Of Contents
21. Warranties – Terms and Conditions ............26 ISO 7010 Symbols used in this manual Warning - Electrical safety Warning – Potential consequences of use outside of intended application(s). Includes environmental condition warnings. Mandatory warning Warning to disconnect power Read carefully BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 6: Modes Of Operation
100* destination. Supports run / no run level protection at the sources via floats or probes. When first powered on the nXt-DPC will display the current dipswitch operating mode (binary code), the hardware and the software version. BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 7: Technical Specifications
Visual and audible alarm. Supports external alarm connection To avoid ‘nuisance’ alarming, many of the default protection parameters have values with a wide tolerance. The installer is encouraged to optimise the settings to achieve optimum results BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 8: Display
Critical fault messages Operational Amperage, state Voltage and other values. Contactors Current monitoring Visual alarm Audible alarm Operating logic selection Low voltage input/output connections High decibel audible alarm Power output connections Master Circuit Breaker BIA-nXt-DPC3 Instruction Manual V1.0... - Page 9 Display con’t The nXt-DPC controller operates according to the pre-programmed logic for each ‘mode’. Changing the Dip Switches inside the controller then cycling the power will activate the selected logic mode. Examples of common applications are detailed later in this manual but with an understanding of how the controller responds to various inputs in each of the modes the controller can be used for application other than what is suggested.
-
Page 10: Electrical Connections
Output Terminals The nXt DPC has two ‘Dry Contact’ terminals. D1, D2 activate in the event of a critical fault D3, D4 activate briefly whenever the controller is changed between its Automatic and Manual state (which requires physical intervention) BIA-nXt-DPC3 Instruction Manual V1.0... - Page 11 11(A+) + 12(B-) RS 485 Full factory reset_ • Turn off power to the control panel, • Press and hold the STOP button and reapply power • When the display shows 099, release the STOP button. BIA-nXt-DPC3 Instruction Manual V1.0...
-
Page 12: Modbus
To store the value and return to the main menu press MODE button. To store all changes and exit the parameter menu hold the MODE button for 5 sec BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 13: Program Parameters
Related to terminal connection 9 and 10. Dip switch #4 in the up position Phase Reversal Protection When using the nXt SPC in conjunction with a VFD set to OFF Open Phase Protection When using the nXt SPC in conjunction with a VFD set to OFF... - Page 14 Pump stop setting Dependant Mode Start pump setting Dependant Mode Second pump cut in setting Dependant Mode Overflow/Over pressure setting Dependant If a replacement pump is installed, the previous calibration should be removed and a new calibration performed. BIA-nXt-DPC3 Instruction Manual V1.0...
- Page 15 For example, the controller can be connected in series with a VFD controlled pump to provide additional control inputs or to utilise the nXt-DPC controller delay times. For even greatly flexibility in your installation the nXt-DPC controller can be used as a ‘module’ in a more complex control environment.
-
Page 16: Quick Guide: Drainage Mode, Float Connected To Pump
The Controller provides additional protections excluding dry run, start/stop delay times and pump start alternation. A float connected to the controller can provide high level alarm function. Parameter 020 must remain set to 0.0A to prevent underload alarming when the pump float interrupts pumping operation BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 17: Quick Guide: Drainage Mode, Floats Connected To Control
Both pumps continue to run until the Lower Pump float switch is in the Off (Down) position. The controller alternates whichever pump starts first every startup cycle. Should the first pump shut down due to an alarm condition, the controller will automatically transfer duty to the second pump. BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 18: Quick Guide: Transfer - Source/Destination Control
A float switch or probes at the source controls whether the pump will run or not depending on the liquid level. Should the level continue to drop despite a single pump running, the second pump will start when the level falls to the L2 (#7) position BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 19: Quick Guide: Pressure Boosting - Switched Input
• Start delay time Parameter 010 – Default Off • Stop delay time: Parameter 011 – Default Off • Maximum run time: Parameter 012 – Default Off BIA-nXt-DPC3 Instruction Manual V1.0... - Page 20 When demand flow further decreases Pump A will turn off when system pressure reaches 5.5 bar. A suitably sized pressure vessel should be incorporated in the system to ensure pump starts don’t exceed 20 starts/hour OR the manufacturers recommendation. BIA-nXt-DPC3 Instruction Manual V1.0...
-
Page 21: Quick Guide: Drainage Mode, 4-20Ma Level Transmitter
These are the control levels related to the source Example: Full measuring range: 200cm Overflow alarm depth value: 150cm Pump 1 cut-in (start) depth: 60cm Pump 2 cut-in (start) depth: 100cm Pump(s) cut-out (stop) depth: 20cm BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 22: Quick Guide: Transfer - Source/Destination Control 4-20Ma
The destination control (transducer) provides a request to start based on liquid level. The Source level control allows the pump to start only if there is sufficient liquid to have the source float in the up position BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 23: Quick Guide: Pressure Boosting 4-20Ma
These are the control pressures in in the delivery line Example: Full measuring range: 25 bar Over pressure alarm value: 8 bar Pump 1 cut-in (start) pressure: 4 bar Pump 2 cut-in (start) pressure: 2.5 bar Pump cut-out (stop) pressure: 5.5 bar BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 24: Backup Power Supply
Hi-Level alarm is able to function for as long as the backup battery maintains its output External Alarm A 230V external, remote alarm can be fitted and wired thus. Alarm test: Located on the rear of the display PCB is an alarm test button. BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 25: Fault Messages
± 15% phases is restored to normal POWER PHASE Sequence of the incoming wiring Change the sequence of the wiring REVERSAL (R/S/T) is incorrect PUMP NO Check the calibration Calibration not complete CALIBRATION Parameters 018 and 019 BIA-nXt-DPC3 Instruction Manual V1.0... -
Page 26: Warranties - Terms And Conditions
New Zealand. 8) Our warranty commences from the date of purchase of the above- mentioned pumps. Proof of purchase is required before consideration under warranty is given. Record your date of purchase in the space below and retain this copy for your records. Date of Purchase ..........Model Purchased ..........BIA-nXt-DPC3 Instruction Manual V1.0... - Page 27 For any queries regarding use of the contained information please feel free to contact White International Pty Ltd. BIA-nXt-DPC3 Instruction Manual V1.0...
