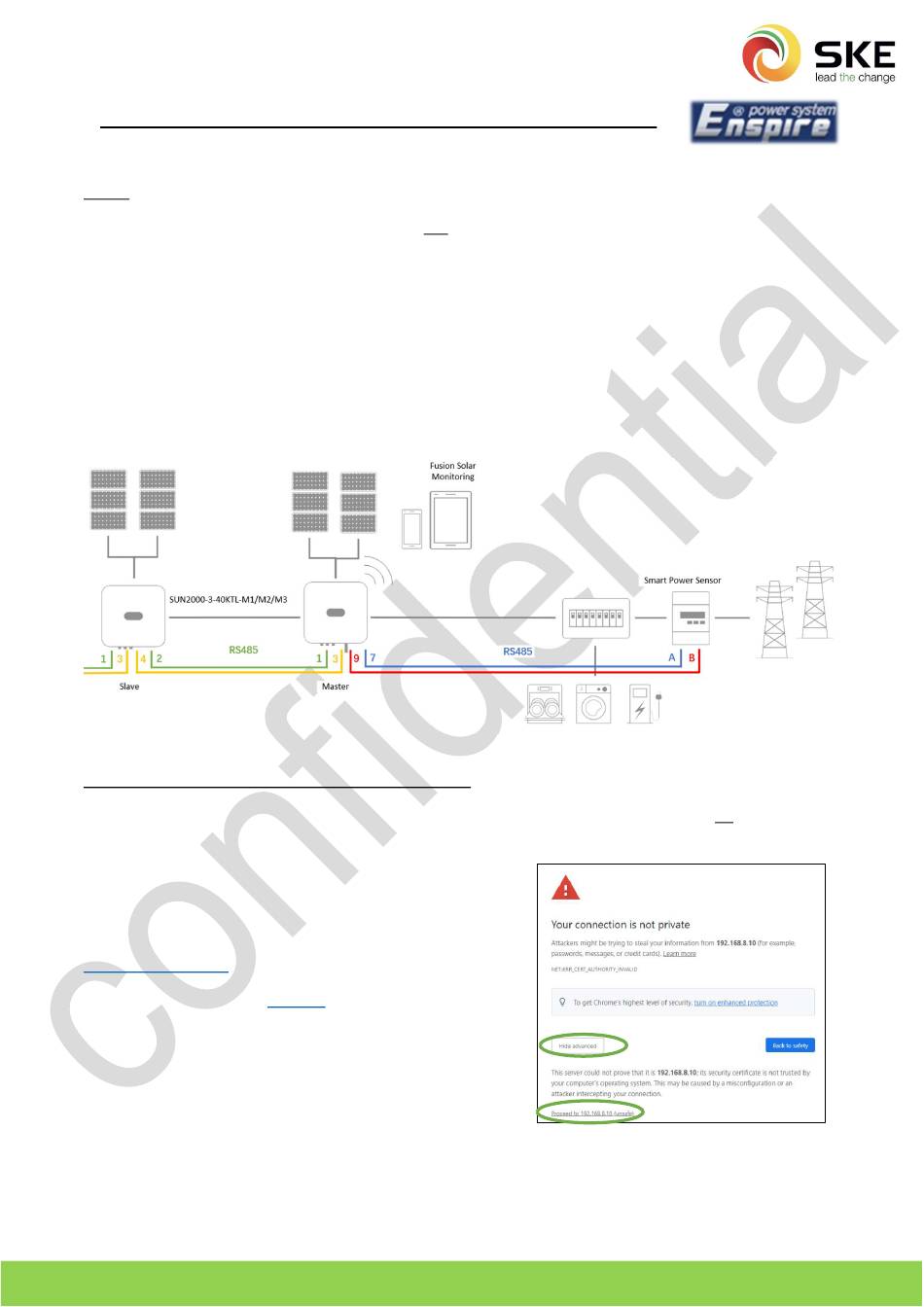

Inverter commissioning using SmartLogger 3000
Notes:
-
For commissioning, a FusionSolar account is not required.
However, for the online monitoring of the system an account is required.
Please get in touch with your contact person at SKE for the account.
For more information, see the "FusionSolar - Monitoring" manual.
-
Before commissioning, all Huawei inverters used must be correctly cascaded via an RS485 wiring and
supplied on the AC and DC sides.
Please use a shielded, twisted pair cable for communication.
A CAT7 network cable is recommended.
-
You find the correct Pins for the cascading in the user manual of the inverter(s)
-
However, the PIN assignment below can be applied to most of the inverters from Huawei:
Step 1 – Establish connection to Smartlogger3000:
Make sure that your computer is connected to the LAN input of the SmartLogger and that no static IP
address is set up in your computer LAN settings.
Open a new browser window of your choice and enter the
gateway IP address of the SmartLogger in the address bar.
The following IP address must be entered:
https://192.168.8.10
Please make sure that the
The browser will now indicate a "non-private-connection".
In case of the Google Chrome browser, please click on
"Advanced"
(1)
below and then on
" Proceed to 192.168.8.10 (insecure)"
The SmartLogger web interface called "Enspire" will then open properly.
https://
is also entered correctly.
(2).
1
2
Grid
1
Advertisement
Related Manuals for SKE SmartLogger 3000
Summary of Contents for SKE SmartLogger 3000
- Page 1 For commissioning, a FusionSolar account is not required. However, for the online monitoring of the system an account is required. Please get in touch with your contact person at SKE for the account. For more information, see the "FusionSolar - Monitoring" manual.
- Page 2 Step 2 - Login window & password assignment: The desired language can be set in advance on the login window. The password for the already created user "admin" is "Changeme". After the initial login, you will be prompted to enter your desired password. Please do not give this password to the system owner.
- Page 3 Step 4 - Deployment wizard - communication to the management system (FusionSolar): In the following window, you will be asked if you want to use a 4G/3G/2G sim card for communication. If the SmartLogger should communicate with FusionSolar via a network cable, please press "No". If this is the case, please ignore the sim card parameter settings below.
- Page 4 Here, the IP addresses must be entered, according to the configuration of the local network. It is advisable to consult a local IT network technician here, who will tell you the correct IP addresses. Confirm the input by clicking "Next". Note: Whether the SmartLogger can communicate with the management system can be viewed under "Settings"...
- Page 5 tep 5 - Deployment Wizard - Add Huawei devices (inverters): Here, all already connected Huawei inverters can now be found by clicking on "Search for device". You are now asked whether you want to start with the allocation of the addresses. Please confirm this with "Yes".
- Page 6 All inverters found should now be listed here: The desired communication address can be set either here, or at a later time. Please confirm the entry by clicking on "Address adjustment". In the following window "Search again?" please click on "Yes". The inverter search is now completed automatically.
- Page 7 Step 6 - Deployment Wizard - Network Code Settings Clicking "Confirm" takes you to the grid code settings of the Huawei inverters. Please select the correct grid code from the list of network codes. If no grid codes are listed here, please check the AC connection of the inverters again. Then mark all inverters with "All".
- Page 8 Step 7 - Deployment Wizard - Add Power Meter: If you have installed a power meter, for measuring consumption, or for an export limitation, please connect it to a free COM port. Since the SmartLogger offers communication with many third party manufacturers devices, it is always recommended to refer to the user manual of the power meter used.
- Page 9 Select the power meter type used. Please always leave the voltage and current transformer ratio at 1.0! If a compatible power meter from a third-party manufacturer is used, it must be configured correctly using the manufacturer's operating instructions. If the Huawei Smart Power Sensor DTSU-666-H is used, no further settings need to be made. Confirm the entry by clicking on "Submit".
- Page 10 Step 8 - Deployment Wizard - Add EMI: You are asked if you want to install a digital weather station (EMI). If this is not the case, please click on "No" and skip step 8. First select the correct COM port. Then select the EMI model used from the drop-down menu.
- Page 11 Step 9 - Deployment wizard - connection to the management system (FusionSolar): Make sure that the server address "intl.fusionsolar.huawei.com" is typed in and confirm this entry with "Submit". (4) You can also check under "NMS connection status" whether the SmartLogger has been able to connect to the management system.
- Page 12 Step 10 - Deployment Wizard - Connecting to a Third Party management system: If a plant manager is used, it must be able to communicate with the SmartLogger via Modbus TCP or Modbus RTU. Please select the desired communication protocol and confirm it by clicking on "Next" (2). If this is not required, the point can also be skipped.
- Page 13 tep 11 - Deployment Wizard - Third Party Devices: If you have other third-party devices installed on one of the three COM ports, they can be added here. For this purpose, either a preset configuration file can be imported, or all register addresses can be entered manually at the section “Device management”.
- Page 14 Step 12 - Change device settings: After successful commissioning, you will see the tab "Monitoring". Here you can check whether all devices are working properly. All possible device-related settings can now be set here by clicking on the device on the left-hand side and then under "Running parameters"...
- Page 15 If more than one active power control method is required by your grid operator, it is recommended to install a plant manager, which usually communicates with the SmartLogger via Modbus TCP. A Modbus interface register address list can be requested from your contact at SKE. Reactive power control: Under “power adjustment”...
- Page 16 Schritt 14 – Parameter-export for your grid operator: Under "Maintenance" and "Export param.“ you have the possibility to export all set parameters. Select all inverters on the left-hand side and then click on "Export" (4). The required time for the export depends on the number of inverters. The file that can be downloaded afterwards is in the .csv format and can be converted to a readable form with a spreadsheet software.
