Summary of Contents for MINJCODE JK-402A

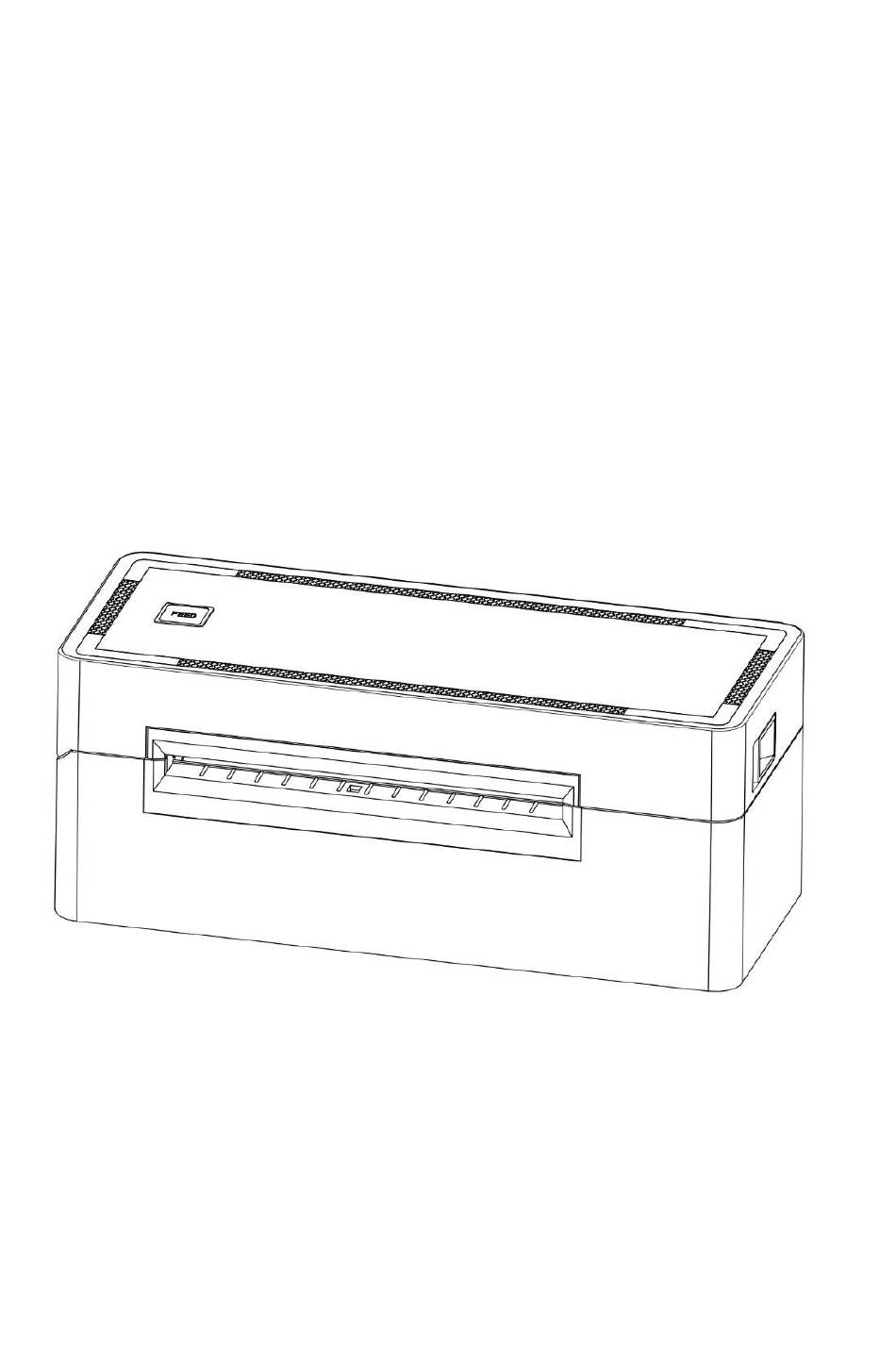

- Page 1 Thermal Label Printer Quick Installation Guide JK-402A...
- Page 2 Opening-box List Standard Accessories Appearance and Components...
-
Page 3: Preparations Before Usage
Preparations before usage Startup & Shutdown/Usage notices: 1.Turn the printer power switch to theＩStatus, that is, to turn on the power switch; 2.Turn the printer power switch to theＯStatus, that is, to turn off the power switch; 3.The power supply must be turned off using a power switch. If you directly unplug the power plug, it can easily damage the printer Internal circuit, resulting in the loss of printing data;... - Page 4 Folded paper installation (1) Open the top cover of the machine, press the inlet paper guide rail at the same time,According to the size of the folded paper, adjust the guide rail spacing. (2) Put the folded paper into the inlet paper guide rail, and cover the top cover. (3) Confirm that the printer has detected the paper feeding, and move the paper suction and normal paper output.
-
Page 5: Keys And Indicators
Keys and Indicators Indicator status Status description Blue light flasging / Blue light always on Normal standby / Bluetooth connected Buzzer alarm Cover opening error Red light always on Paper shortage error Red light flashes 4 times 4 beeps Seam label error Red light flashes 2 times Red light keeps flashing Overheating error... - Page 6 Bluetooth Pairing and Printing (only valid for printers with Bluetooth) Bluetooth printer needs to be paired with the main device driving the printer before working, and the pairing process is initiated by the mai The general pairing method is as follows: (1) Turn on the printer .
-
Page 7: Windows Driver Installation
1. Windows Driver Installation Before installing the printer driver, please connect your printer to the computer and make sure the power switch is turned off. Insert the Drive disc on the computer and find drvier file"KCPrinterSetup" Double c file "KCPrinterSetup" ,Then select language. - Page 8 Follow the steps below to install.
- Page 9 Click “Finish” to finish driver installation.
- Page 10 2. Printer Setup and Testing 2.1 Setup Printer Properties Follow the path shown in the above figure to find the "Devices and Printers", and then click" Devices and Printers", just as above picture...
- Page 11 Right-Click "Label Printer” and then click “Printer properties” And then, it will show as below picture: 2.2 Printing Test Page After finishing port configuration, we start to print test page. On Label Printer “General”:...
- Page 12 The test page coming out indicates that the installation is complete If the test page is not printed, please check if the port is selected wrong. Click “Print Test Page”, the printer will print test page, which means the printer has been connected with computer successfully and the port configuration is correct.
- Page 13 2.3 Other Properties and Function Configuration You could set the paper specification etc., please refer to the follows： Select the printer properties, click on "Print preferred page", enter the page and print settings interface, as shown in the following figure.
- Page 14 Click the Paper Name drop-down box to select the paper size to use. Click “New” to enter the custom paper interface.
- Page 15 Click “Edit” to enter the label size edit. Rotate to print in different directions.
- Page 16 Click "Halftone" to enter the color mixing and color setting page. Click "Advanced" to enter the printer density and printer speed setting page.
- Page 17 If a dialog box does not appear, open Finder and select the flash drive on the left side of the window. Insert the drive disc into the computer,and find the MAC printer driver file "JK-402A.pkg"as shown in the figure below.
- Page 18 Double click "JK-402A.pkg" to begin to install driver. Follow the installation steps until you see "The installation was successful" window...
- Page 19 Open "System Preferences" and click on "Printers and Scanners". Click "+" to add a new printer.
- Page 20 Click on "JK-402A" (or other model of KINCAN) , and choose "Select Software" in the drop down menu. Input "4B-2054A" to search and choose, the click "OK". Click on "Add" to finish .(if you see a warning windows, click "re...
- Page 21 HERI'S HOW TO PRINT YOUR LABELS: Open the PDF in Priview, As shown in the figure below. From the top panel, select File >Print...
- Page 22 Click on the Paper Size drop-down box to select the paper size you currently need to use and customize the paper size settings.
- Page 23 Select the printer features settings for print speed, print concentration, etc Select the printer paper settings for print method, label type, etc Settings are complete, click Print. Happy Printing !
- Page 24 Ⅰ、 Android and Ios Download ❶Scan QR code to download. ❷App Printing Drive Download Google play or App store to search for “Steprint”. Ⅱ、How to connect the bluetooth printer to your phone. Android：...
- Page 25 IOS：...
