Summary of Contents for iFog COVIX

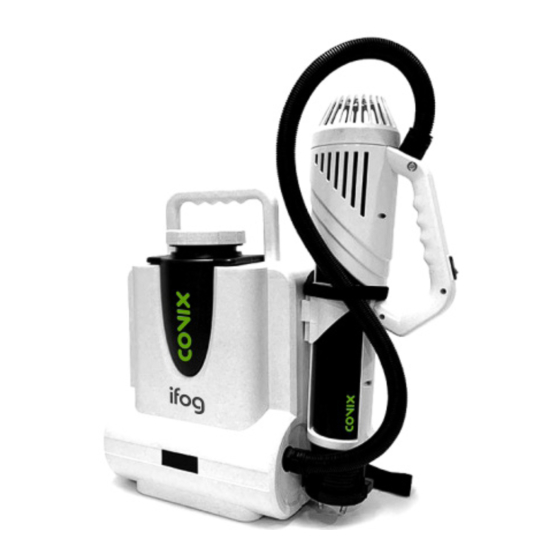

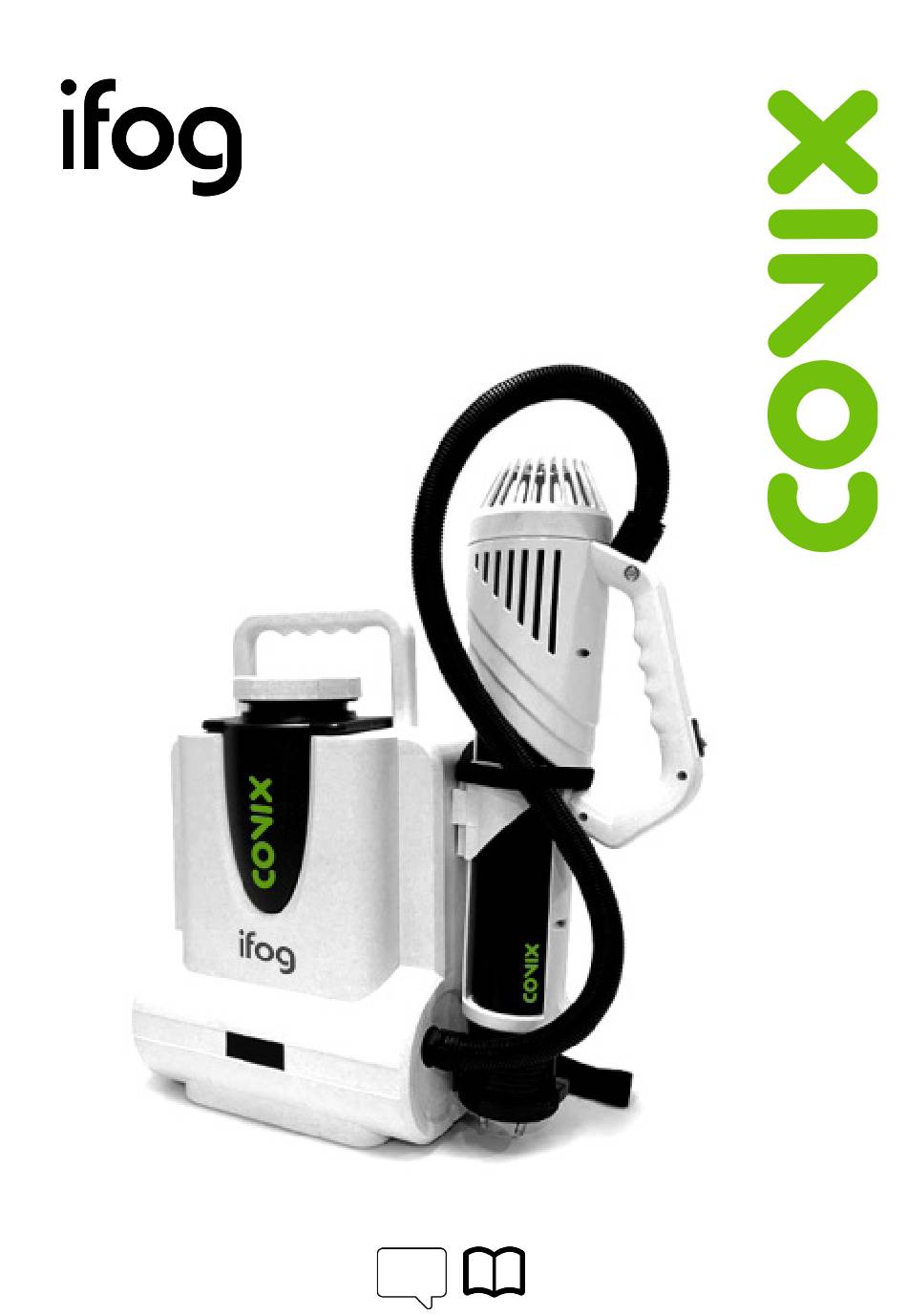

- Page 1 Cordless electrostatic nebuliser kit for effective surface disinfection user manual...
- Page 2 This instruction manual is protected by copyright. We reserve all rights, © especially the rights to produce, translate and prepare it using electronic systems...
- Page 3 introduction Dear Customer, Thank you for placing your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing techniques and thorough quality assurance measures. We do everything possible to ensure that you are satisfied with this product and can operate it without any issues.
-
Page 4: Table Of Contents
table of contents symbols used know your equipment safety warnings operating instructions troubleshooting guide technical specifications maintenance and care accessories and consumables guarantee conditions declaration of conformity... -
Page 5: Symbols Used
symbols used All the symbols used in this manual, as well as those on the equipment itself, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety. -
Page 6: Know Your Equipment
DESCRIPTION AND CONTENT DESCRIPTION AND CONTENT iFOG is an advanced system for applying biocides and pesticides to indoor and outdoor surfaces in an economical, fast and efficient way. It includes all the most advanced technologies; electrostatic induction allows a 360º... - Page 7 know your equipment EQUIPMENT PARTS AND CONTENTS EQUIPMENT PARTS AND CONTENTS Flexible hose 360º blower intake Transport handle Tank cap with particle filter On/off switch for blower 10 litre ABS Tank 5 interchangeable nozzles for 10, 30 and 60 microns RECHARGEABLE Li-ION BATTERY Outlet nozzles...
- Page 8 know your equipment EQUIPMENT PARTS AND CONTENTS EQUIPMENT PARTS AND CONTENTS Socket for plugging in the battery charger Equipment ON/OFF switch Side view of the equipment Blower air intake Adjustable strap to hold the nebuliser cannon Transport handle Adjustable strap to use it as a backpack Rear view of the system for carrying as backpack...
- Page 9 know your equipment CHANGING THE NEBULISER CHANGING THE NEBULISER HEAD NOZZLES HEAD NOZZLES Remove nozzle, unscrew it Fit nozzle, screw it clockwise counterclockwise hand tight. using your fingers DO NOT change the nozzles with the equipment turned on, it may cause an electric shock. INTERCHANGEABLE NOZZLES INTERCHANGEABLE NOZZLES NOZZLE...
- Page 10 know your equipment HOW ELECTROSTATIC HOW ELECTROSTATIC NEBULISATION WORKS NEBULISATION WORKS The disinfectant solution is ionised using a high voltage negative electrode. The injection pump generates the microparticles throu- gh the 5 nozzles which move with the air produced by the high volume blower.
-
Page 11: Safety Warnings
safety warnings > This equipment contains an electrostatic device that can interfere with sensitive medical devices such as pacemakers, defibrillators, or similar devices. DO NOT use this machine or be within 3 metres of it if you use one of these medical devices. >... -
Page 12: Operating Instructions
operating instructions Before use: Before use: Read this user manual carefully, following all the safety measures indicated. Fill the tank, to no more than the maximum level, with a water-based chemical solution, charge the battery to 100% capacity. Operation: Operation: Use the nozzles for the particle size you want 10, 30 or 60 microns, place the equipment on your back and adjust the straps to fit you, turn on the equipment and point the nebulisation cannon in the direction of the surfaces and objects to be sprayed, keeping a suitable spacing. -
Page 13: Technical Specifications
technical specifications TECHNICAL FEATURES Nominal voltage 24 V- 30 Ah Motor power 200 W 4 h with blower Battery operating time 10 h without blower 10, 30 and 60 microns Droplet size 3 types of nozzle 8 m with blower Coverage 4 m without blower Tank capacity... -
Page 14: Maintenance And Care
maintenance and care > Always use the charger provided when charging the battery. > Regularly check soft parts such as hoses and gaskets to check for wear. If they are broken or damaged, they should be replaced. > Like any apparatus for the application of chemical products, you will need to clean all the parts of your unit to avoid the accumulation of residues which may affect its performance. -
Page 15: Accessories And Consumables
accessories and consumables CONSUMABLES AK-GERMA 100 Super concentrated disinfectant for germs, fungi and viruses. Box of 6 1-litre containers. CODE PQ8400113... -
Page 16: Guarantee Conditions
guarantee conditions 1. “TEINNOVA" guarantees its products for a period of 15 can replace it or determine the necessary repair method. days for aesthetic defects or product faults which are All repair works that are carried out under the product noticeable at first sight, and for a period of 1 year when guarantee must be carried out in "TEINNOVA"... -
Page 17: Declaration Of Conformity
The company is registered in the Registro Oficial de Establecimientos y Servicios Biocidas (Official Registry of Biocidal Establishments and Services). ROESB registration number: 026-CAR-110 Product details: iFOG Electrostatic Nebuliser Manufacturer information: Manufacturer name: TECAI INNOVA S.L. Address: C/ Las Balsas 16-B, Pol. - Page 18 © This instruction manual is protected by copyright. We reserve all rights, especially the right to produce, trans- late and prepare it using electronic systems.
- Page 19 teinnova.net...
