Woodpecker RTS2027-22 Owner's Manual

oodpeckers '
0" x 7" | TS2027-22 / 0" x 37" | TS2037-22

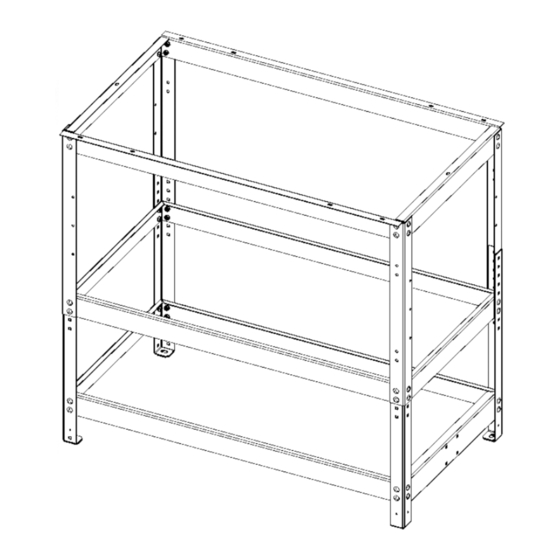

DJUST BLE ROUTER T BLE ST ND
DI GR M
NUMBER
P RT N ME
QTY
20 x 27
MODEL
QTY
20 x 37
MODEL
1
Upper Leg
/ 3 center holes for JessEm S itch
(2) (2)
2
Upper Leg
/ 4 holes for Kreg S itch
(2) (2)
3
Long Bottom Leg " B " , 21 -1/2"
/ F l anged F oot
(2)
(2)
4
Short Bottom Leg " A " , 21"
/ Flanged Foot
(2) (2)
5
Long Table Brace
(2) (2)
6
Long Shelf Brace
(4) (4)
7
Table Brace, 20"
(2) (2)
8
Shelf Brace, 20"
(3) (3)
9
Wheel Brace, 20"
(1) (1)
10
Floating Table Brace, 20"
(2) (2)
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
OWNER ' S M NU L
HARDWARE BAG
Carriage Bolt, 1 /4-20 x 1 /2" (48)
Kep Nut, 1/4-20 (48)
Phillips Pan Head Screw 10 x 3/4" (18)
Leveler Foot (4)
Nut, 3/8" (8)
Washer, 3/8" (8)
LockWasher, 1/4" Split (4)
