Operator's Manual
Keep this manual with the machine at all times
Hydraulic
Limb Saw
SEHLS1224
CAUTION
!
Operational Hazard
Personal Protection Equipment
(PPE) is required when operating
or maintaining this machine.
CAUTION
!
Overhead Hazard
Be aware of falling debris under,
around the attachment and on
the power unit. Cut branches
can fall unpredictably.
!
Do not attempt to operate the equipment without thoroughly
Rev 121123
SNL00001
reviewing this manual for safe and proper operation.
Advertisement
Table of Contents
Related Manuals for Spartan Equipment SEHLS1224
Summary of Contents for Spartan Equipment SEHLS1224
- Page 1 Operator’s Manual Keep this manual with the machine at all times Hydraulic Limb Saw SEHLS1224 CAUTION Operational Hazard Personal Protection Equipment (PPE) is required when operating or maintaining this machine. SNL00001 CAUTION Overhead Hazard Be aware of falling debris under, around the attachment and on the power unit.
- Page 2 Notes...
-
Page 3: Table Of Contents
Saw Chain Tension ..........26 Saw Chain Sharpening ..........26 Components and Features..………………….14 Replacing the Drive Sprocket ........27 SEHLS1224 Limb Saw Components ....14 Bolt Torque Table ..........28 SEHLS1224 Limb Saw Features ......15 Troubleshooting……………………………….29 Automatic Chain Oiler ..........15 Accessories…………………………………….30... -
Page 4: Introduction
If anyone does not fully understand every part of this manual, please obtain further assistance by contacting the dealer from which this product was purchased or by contacting Spartan Equipment with the information listed on the cover of this manual. -
Page 5: General Information
General Information The purpose of this manual is to assist you in safely operating and maintaining your SEHLS1224 Hydraulic Limb Saw in a safe manner. Read this manual carefully to obtain valuable information and instructions that will help you achieve safe and dependable service. -
Page 6: Safety Messages
Safety This Safety Alert Symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert symbol identifies important safety messages on the implement and in the manual. When you see this symbol, read and understand the message, be alert to the potential hazard in the message. -
Page 7: Accident Prevention
Accident Prevention ACCIDENTS CAN BE PREVENTED WITH YOUR HELP! YOU are responsible for the SAFE operation and maintenance of your implement. YOU must ensure that you and anyone else who is going to use, maintain or work around the implement be familiar with the work and maintenance procedures and related SAFETY information contained in this manual. -
Page 8: Safety Guidelines
Safety Guidelines Safety of the operator and bystanders is one of the chief concerns in developing and designing equipment. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more cautious approach to handling equipment. -
Page 9: Preparation
Preparation Operation Safety 1. NEVER allow helpers or bystanders under or near the 1. Inspect implement for shipping damage. If damage machine. does exist, do not use. Notify your dealer immediately to have damaged parts replaced or repaired. 2. Make sure work is performed while on solid level ground. -
Page 10: Hydraulic Safety
Assembly & Inspection Before putting the SEHLS1224 limb saw into service the first time, inspect the machine for shipping damage or missing / loosened parts. If damaged or loosened parts exist, do not use. Notify your dealer immediately to have... -
Page 11: Safety Labels
Safety Labels Safety labeling is an important part of the overall safe use of the implement. Safety labeling alerts and warns against potential injury or death, and is important to follow these points to help keep your implement safe for you and others who may be using it. -
Page 12: Safety Label Layout
SL00058H SL00057 WARNING Cancer and Reproductive Harm SL00015 www.P65 Warnings.ca.gov SNL00011 SL00066 SL00066 SL00058 If safety labels have been damaged or removed, new labels must be applied. New safety signs are available from your dealer or contact Spartan Equipment. SL00058... -
Page 13: Specifications
Specifications Specifications & Dimensions SEHLS1224 Limb Saw BP120 The SEHLS1224 is designed for various sizes of power units. Recommended Power unit size The power unit must have the rated operating capacity (ROC) to safely lift and operate the attachment. Attachment specific per power unit at time of Attachment ordering from the dealer. -
Page 14: Components And Features

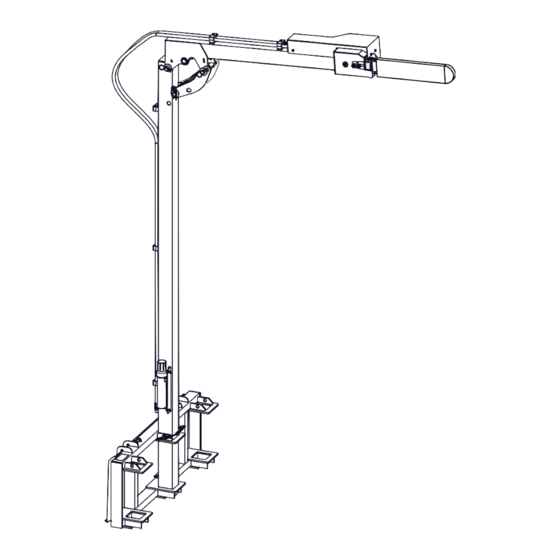

Components and Features The Spartan SEHLS1224 Limb Saw unique design helps to increase productivity by ensuring safe, effective and speedy completion tree and branch trimming chores. The owner or operator has the responsibility of being familiar with all the features of the limb saw and know how to operate them. -
Page 15: Sehls1224 Limb Saw Features
SEHLS1224 Limb Saw Features Automatic Chain Oiler The SEHLS1224 is equipped with an automatic chain oiler system fed from the hydraulic circuit. The system is preset at the factory for optimum lubrication of the saw chain, but is adjustable if required. -
Page 16: Main Boom Mount
Main Boom Mount The main boom pole is able to be mounted into one of three positions on the adapter frame assembly. To change position, have limb saw mounted on the power unit and lock the top saw boom into the storage position. Draw pin •... -
Page 17: Initial Setup
Initial Setup To prevent potential injury during installation and to ensure safe working conditions, avoid working around the power unit while it is running. Shut off the power unit and ensure the brakes are applied or the wheels have been secured with wheel chocks to prevent unwanted movement during the installation process. -
Page 18: Hydraulics
Hydraulics Hydraulic connections from the power unit to the limb saw are made at the limb saw. Hydraulic hoses and connectors from the limb saw to the power unit is the responsibility of the owner. HK90 Optional 90” Hose Kit c/w Flat Faced Couplers is available from your dealer. -
Page 19: Field Operation
• Safety shoes with slip resistant soles. Material • Safety glasses. The Spartan Equipment limb saw is designed for the purpose of trimming branches from trees. • Hearing protection. Do not use the limb saw to lift, push or pull objects, •... -
Page 20: Operating
Operating It is important to follow the safety information and operating procedures in this operator’s manual. How and when to use the SEHLS1224 and power unit features will be dictated by a combination of variables: • Power unit characteristics. • Condition and type of working surface. -
Page 21: Storage
Storage Storage Safety Checklist Ensure the limb saw is stored in a clean dry location. Store the implement away from work area’s and livestock. Ensure all pins, latches and locks are secure. Do not permit children to play on or around the stored ... -
Page 22: Service & Maintenance
Service & Maintenance Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. To keep your Spartan limb saw in good working condition, and increase machine life as well as maintain ease of operation, periodic lubrication is essential. This also helps to flush out moisture and dirt. By following a careful service and maintenance program for your machine, you will enjoy many years of trouble-free operation. -
Page 23: Lubrication
Parts replacement should be performed by qualified personnel. To ensure freedom of movement and prevent corrosion the SEHLS1224 Limb saw should be lubricated every 40 hrs or more often with heavy use. This symbol indicates a lubrication point shown in the illustration below. -
Page 24: Clean And Inspect The Chain Saw
After a period of continued use or when maintenance is required, perform a thorough cleaning and inspection. Cleaning out debris, resin, or oil buildup is the best way to increase the life of SEHLS1224 limb saw. Ensure the limb saw is removed from the power unit and secured on a work bench. Be aware that the saw chain teeth are sharp;... -
Page 25: Guide Bar
Guide Bar guide bar The SEHLS1224 guide bar will wear and require groove maintenance or replacement after a certain period of use. • Check the oiler holes (there’s two, one on each side), guide bar groove and sprocket at the end of the bar and clean out any debris, oil or resin buildup. -
Page 26: Saw Chain Tension
Saw Chain Sharpening # LP-101167 Stihl 33RS-18E Saw Chain Recommended File Size 5.2mm (13/64”) #LP-101167 The SEHLS1224 saw chain will wear and become dull Limb Saw after a certain period of use. Resharpening is required Cutting Chain when any one or more of the following conditions occurs: •... -
Page 27: Replacing The Drive Sprocket
Replacing the Drive Sprocket # LP-101212 Stihl Rim Sprocket 3/8” 7T To replace the drive sprocket: The SEHLS1224 saw drive sprocket will wear after a • Release the tension on the saw chain by turning back certain period of use. -
Page 28: Bolt Torque Table
Bolt Torque Table These tables are offered as the suggested maximum torque values for dry (not lubricated) threaded products and are only a general guide. Check tightness of bolts periodically, replace hardware with the same strength bolt. Torque specifications for bolts are identified by their head markings as shown. See the “Wheel Torque Specification”... -
Page 29: Troubleshooting
Trouble Shooting On the following page, we have listed many of the causes and solutions to issues that you may encounter. If you encounter a issue that is difficult to solve, even after having read through this trouble shooting section, please call your local distributor or dealer. -
Page 30: Accessories
Accessories For accessories or replacement parts, call your dealer for pricing and availability or go to www.spartanequipment.com click on ‘Parts’. Optional 90” Hose Kit c/w Flat Faced Couplers Optional hose kit, perfectly matched for your bale squeeze Optional Spring Hose Mount Kit The spring hose mount kit easily and safely reroutes your hydraulic hoses. - Page 31 • Misuse, negligence, accident, theft or fire • Use of improper or insufficient fuel, fluids or lubricants • Use of parts or aftermarket accessories other than genuine Spartan Equipment parts • Modifications, alteration, tampering or improper repair performed by parties other than an authorized dealer...
