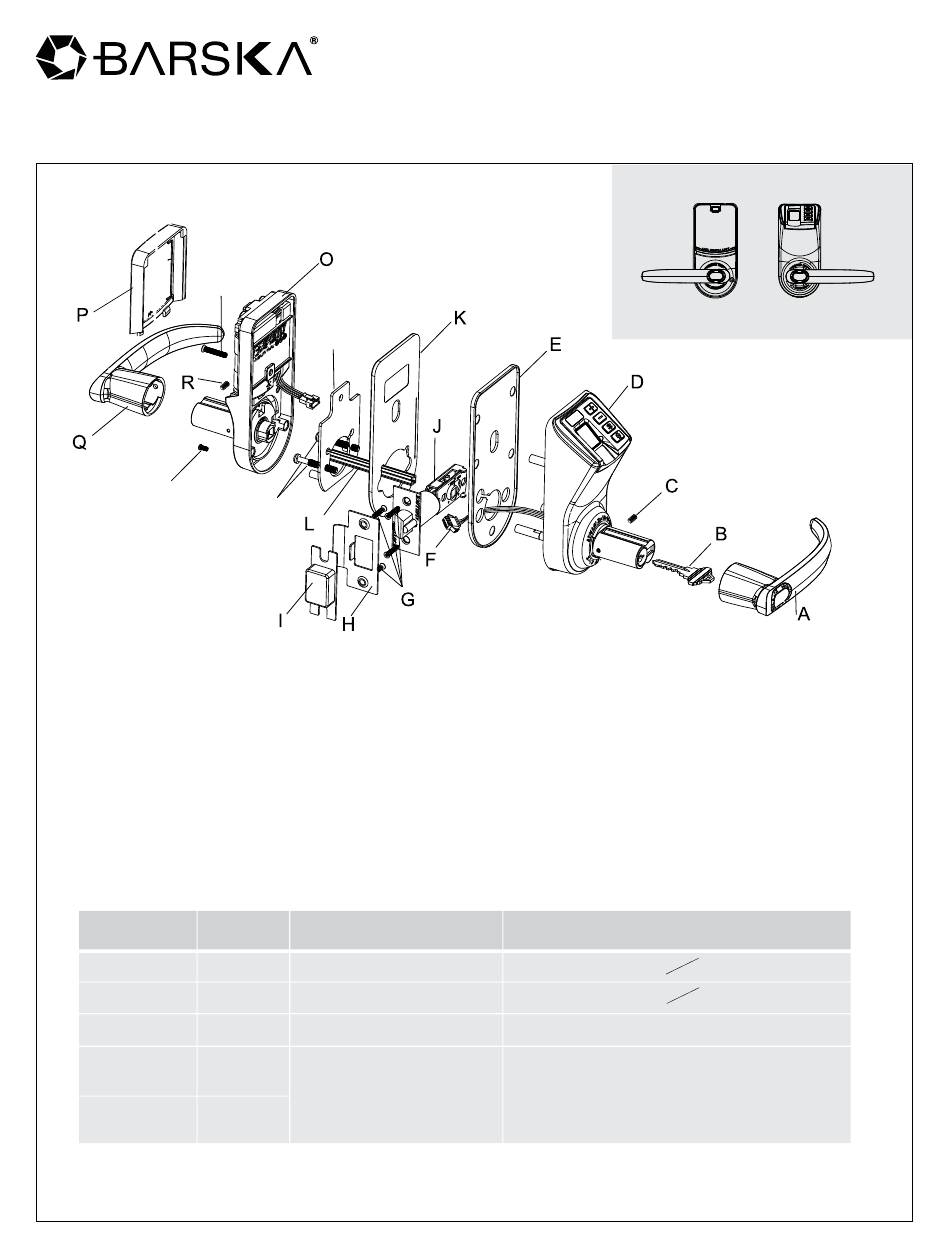

Diagram of lock
T
S
A. Front lever handle
B. Mechanical key
C. Hexagonal screws for fixing the
front handle（M4*7）
D. Front lock body
E. Front lock body gasket
F. Wire connector
G. Screw
H. Strike plate
I. Strike box
The checklist of spare parts
　
Diagram code
Quantity
C
R
S
N
T
Note: N/T please use the appropriate screw set based on your own door thickness.
1721 Wright Ave. | La Verne, CA 91750 | (t) 888.666.6769 | (f ) 909.445.8169 | www.barska.com
Biometric Security Door Lock
Installation Instructions
M
N
J. Latch
K. Back lock body gasket
L. Spindle
M. Back plate
N. 3 different set of screws are provided
M5*20, M5*30 and M5*30, the
screws are used to fix the position
of the inner metal plate.
O. Back lock body
P. Battery cover
Size
（in/mm）
1
(M4*7)
1
(M4*7)
2
(M4*10)
(M5*20)
2
(M5*30)
1
(M5*40)
Lock body
Back
Q. Back lever handle
R. Hexagonal screws for fixing the
back handle
S. M4*10 screw
T. 3 different set of screws are provided
M5*20, M5*30 and M5*30, the screws
are used to fix the position of the back
lock body.
Appropriate for door thickness
（in/mm）
1-3/16" - 2-3/8"
(30mm - 60mm)
1-3/16" - 1-9/16" (30mm - 40mm)
1-9/16" - 1-31/32" (40mm - 50mm)
1-31/32" - 2-3/8" (50mm - 60mm)
Front

Advertisement

loading
Need help?

Need help?

Do you have a question about the ea11246 and is the answer not in the manual?

Questions and answers

Summary of Contents for Barska ea11246

  • Page 1 1-9/16” - 1-31/32” (40mm - 50mm) (M5*30) 1-31/32” - 2-3/8” (50mm - 60mm) (M5*40) Note: N/T please use the appropriate screw set based on your own door thickness. 1721 Wright Ave. | La Verne, CA 91750 | (t) 888.666.6769 | (f ) 909.445.8169 | www.barska.com...

  • Page 2: Before Installation

    Before installation ： 1、To ensure a successful installation, please do not use power tools to ２、Use the correct fixed-screw tools, and wear eye protection. tighten the screws to avoid damage on the screw. 　 ３、In order to prevent any unnecessary damage to the door, please drill the holes from both sides of the door separately.

  • Page 3: Installing The Strike Plate

    Template for new door Paper template: the 2 3/8” [60mm] backset or 2 3/4” [70 mm] backset Door Preparation Note: Drill from both sides of the door to prevent unsightly damage. 1. Determine which template will fit your installation ( either the 2 3/8” [60mm] backset or 2 3/4” [70 mm] backset) (Fixing screw hole) 10mm Agujero del tornillo de fijaciｨｮn...
  • Page 4 Installing Latch Installing spindle, and front lock body 2 3/8” [60mm] backset or 2 3/4” [70 mm] backset ６０ｍｍ ７０ｍｍ Close view Spindle Very important note: As the photo shows there is an arrow pointing up to the small triangle. This is The latch has two backsets available: 2 3/8”...
  • Page 5 Installing the back plate and Installing the back lock body back lock body gasket 1. Connect the cable as shown 1. The back plate fits into the back lock body gasket 2. Push the wire connector into the hole under the latch 3.

  • Page 6: Testing The Operation Of The Lock

    Take off the front handle lever, insert the mechanical key, turn the key to vertical position then rotate the handle bar. Ensure the latch is fully retracted. Figure 1 1721 Wright Ave. | La Verne, CA 91750 | (t) 888.666.6769 | (f ) 909.445.8169 | www.barska.com...
