  • Page 1 Supplementary Rider’s Manual (US-Model) DWA Anti-Theft Alarm 5 BMW Motorrad...
  • Page 2 Note the following! Precautionary rules and mea- sures that protect the driver or other persons from injuries or death. Special information and precautionary measures which prevent damage to the motor- cycle. Failure to observe these measures can lead to the war- ranty being voided.

  • Page 3: Welcome To Bmw

    BMW anti-theft to take this opportunity to send alarm. you our very best wishes. It acts as a deterrent for poten- tial thieves, while at the same Yours sincerely, time being easy and straightfor- ward to use. BMW Motorrad...

  • Page 4: Table Of Contents

    Contents i Introduction 5 Lights Welcome to BMW ....1 Lights........23 General ......... 3 6 Programming 1 Overview and operation Adapting anti-theft alarm..24 Controls ........ 4 Default settings ....25 Functions of remote Accessing the control unit ......5 programming mode ....

  • Page 5: General

    General Your anti-theft alarm is combi- ned with a central locking sys- tem that enables you to open and close the cases, the top- case, and the radio compart- ment by remote control. It also enables you to switch on Any attempt to move the motor- the map-reading light and the cycle, change its position, start...

  • Page 6: Controls

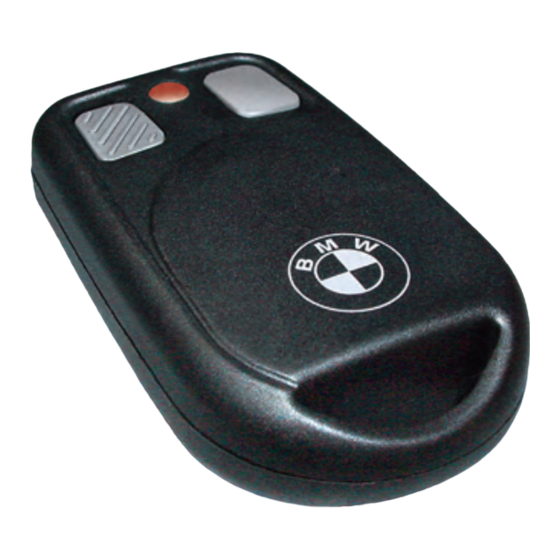

    Controls Never lock the ignition key in the storage compart- 1 Left button (ribbed) ments with the remote control. 2 Right button If the remote control is lost, you 3 LED can neither unlock the cases 4 Radio remote control unit with the emergency function 5 Status LED nor deactivate the immobilizer...

  • Page 7: Functions Of Remote Control Unit

    Functions of remote control unit Operation Button 1 Confirmation Press once Lock central locking – Press again Activate alarm func- Turn indicators flash tion and immobilizer 2x Alarm tone sounds 2x (if pro- grammed) Press for third time Deactivate motion Turn indicators flash sensor (for transport, 3x Alarm tone...

  • Page 8: Code Card

    Code card The code number is stamped in encrypted form on the anti-theft alarm and it is also printed on an adhesive label 2 supplied The anti-theft alarm is supplied with the anti-theft alarm. You complete with a sealed enve- should affix the label at a con- lope containing a code card 1.

  • Page 9: Activation

    Activation If the immobilizer is active, the motorcycle can not even be started with an authorized key. The activation of the immobili- zer can be recognized from the fact that LED 5 lights up after the ignition is switched on and the pre-ride checks are com- pleted.
  • Page 10 Activation The activation of the immobili- zer after the ignition is switched If the confirmation is followed by off without the alarm function is the alarm tone sounding four confirmed times, the anti-theft alarm indi- ● by the turn indicators flashing cates that its internal battery is once discharged.

  • Page 11: Deactivation

    Deactivation If the confirmation is carried out Deactivation of immobi- by the alarm tone sounding four lizer with remote control times, the anti-theft alarm indi- The immobilizer is deactivated cates that the voltage of the by pressing button 2 on the ●...

  • Page 12: Activation

    Activation Activation with motion sensor The alarm function is activated by pressing button 1 on the ● remote control unit twice by switching off the ignition, if ● programmed ( Activation is confirmed After the ignition is switched off, by the turn indicators flashing ●...
  • Page 13 Activation You deactivate the motion sensor by pressing button 1 on the ● remote control for a second Switching off motion time within the activation sensor phase ( If you want to transport your motorcycle, e.g. on a train, it is Deactivation is confirmed advisable to switch off the by the turn indicators flashing...

  • Page 14: Activation Phases

    Activation phases The alarm function requires 15 seconds until it is finally acti- vated. Status of the anti- theft alarm Activation phase Rapid flashing (15 seconds) (0.1 sec. on/ 0.5 sec. off) If the motion sensor was switched off: Rapid flashing (0.1 sec.

  • Page 15: Triggering Alarm

    Triggering alarm Alarm An alarm lasts for 26 seconds. The alarm is active again 12 seconds later. If the reason for the alarm continues to be pre- sent, it will be triggered again, however a maximum of five times consecutively. You can Triggering alarm cancel an alarm at any time The alarm can by triggered...

  • Page 16: Deactivation

    Deactivation Deactivating the alarm function with the remote control unit The alarm function is deactiva- by pressing button 2 on the Deactivation is confirmed ● remote control once by the turn indicators flashing ● If the alarm function was activa- once ted automatically by switching off the ignition, it will be reacti-...
  • Page 17 Deactivation Deactivating alarm func- tion without remote con- trol unit If you do not have the remote control unit at hand when the anti-theft alarm is active, you can still deactivate the system. To do so, you will need the code number printed on your code card ( A maximum of 3 incorrect en-...

  • Page 18: Reasons For An Alarm

    Reasons for an alarm Reasons for an alarm Once you have deactivated the alarm function, the LED shows you reasons for alarms, if any, that were triggered in your absence: Flash 1x: ● Motion sensor Flash 2x: The LED ceases to output this ●...
  • Page 19 Reasons for an alarm You can also check the system at some subsequent time in order to ascertain the reason why the most recent alarm was triggered. In order to do so, you must first identify yourself by means of your code number. If you now switch off the igni- tion, the LED will flash to indi- If the code number you entered...
  • Page 20 Reasons for an alarm Step Action Confirmation Deactivate the anti-theft alarm and switch on the ignition Switch the ignition off and then LED on, on again 3x immediately within 1x acknowledgment 4 seconds tone Switch off the ignition within LED flashes 15 seconds and then watch the Count the LED signals until their number matches the first digit...

  • Page 21: Manual Operation

    Manual operation Manual opening and closing You can still open and close the cases, the topcase and the radio compartment manually with the key, as described in the Rider’s Manual.

  • Page 22: Remote Control Unit

    Remote control unit Opening with remote con- trol unit Press button 2 on the remote control unit once to unlock the cases, the topcase and the Closing with remote con- radio compartment. A lock that trol unit was engaged manually remains Press button 1 on the remote locked even after opening with control unit once to lock the...

  • Page 23: Emergency Unlocking

    Emergency unlocking If the compartments were locked by the central locking system and, for some reason, the remote control unit is not to hand, you can use the emer- gency unlocking routine to 3 You can now press in the open them.

  • Page 24: Safety Shutdown

    Safety shutdown Overly frequent locking and unlocking within a short period of time could cause the motors of the central locking system to become very warm. An override function can cut in and interrupt operation in order to avoid damage to the motors: these interruptions can last for a max- imum of 30 seconds.

  • Page 25: Lights

    Lights The lights are switched on • when you deactivate the alarm function • by switching off the ignition, if Map-reading light programmed ( The map-reading light switches The lights dim out after on automatically if switch 1 is in 20 seconds.

  • Page 26: Adapting Anti-Theft Alarm

    Adapting anti-theft alarm You can customize the BMW anti-theft alarm system to suit your needs and preferences as follows: Acoustic confirmation after ● activation/deactivation of the anti-theft alarm in addition to turn indicators flashing Automatic activation of lights ● when ignition is switched off Rising and falling or intermit- ●...

  • Page 27: Default Settings

    Default settings Setting Status Acoustic confirmation after activation/deacti- vation Automatic activation of lights when ignition is switched off Type of acoustic alarm Intermittent Automatic activation of alarm function when ignition is switched off Automatic activation of immobilizer when igni- tion is switched off...

  • Page 28: Accessing The Programming Mode

    Accessing programming mode Step Action Confirmation Deactivate the anti-theft alarm Steps 3 to 7 must be carried out within 10 seconds Switch on the ignition Wait until LED 5 goes out Press button 2 once LED lights up briefly Switch off the ignition LED shows the number of registered remote control units...

  • Page 29: Programming

    Programming The number of times LED 5 flas- hes indicates the step to which you have progressed in pro- gramming. An alarm tone sounds as confir- mation when you press button 1, whereas an acknow- ledgment tone sounds when you press button 2. The LED stops flashing and four acknowledgment tones sound when you complete the final...

  • Page 30: Exiting Programming Mode

    Exiting programming mode Save programming by switching off the ignition ● after the last step The automatic arming of the alarm function with the ignition automatically 10 seconds ● off can only be activated when after the last step the automatic activation of the immobilizer is also operable.

  • Page 31: Registering Remote Controls

    Registering remote control units If you want to start using an extra remote control unit or replace a remote control unit that has been mislaid, you always have to register all the The LED flashes when the igni- remote control units with the tion is switched off: the number anti-theft alarm.
  • Page 32 Registering remote control units If the code number you entered Starting point You must begin by identifying is correct, two acknowledg- yourself by means of your code ment tones sound to indicate number. that identification is completed. Step Action Confirmation Deactivate the anti-theft alarm and switch on the ignition Switch the ignition off and then...
  • Page 33 Registering remote control units You can now register a maxi- mum of four remote control units with the anti-theft alarm. Step Action Confirmation Press and hold down buttons 1 LED 3 flashes and 2 LED stops flashing after 10 seconds Release buttons 1 and 2 LED ON Press button 1 or 2...

  • Page 34: Exiting Registration Mode

    Exiting registration mode Registration terminates once four remote control units The LED flashes and the ack- ● have been registered nowledgment tone sounds if the ignition is switched off three times when registration ● if, after a remote control unit ends.

  • Page 35: Synchronizing Remote Control Unit

    Synchronizing remote control unit Synchronization is necessary if the buttons on the remote con- trol unit are pressed more than 256 times outside the range of the receiver. When this limit is reached, the receiver on the motorcycle no longer reacts to signals from the remote control unit.

  • Page 36: Changing Battery

    Changing battery Only use 3 V lithium battery of Changing batteries in remote control units the type CR 2032. Ensure proper poling when in- The batteries in the remote con- serting the batteries. trol units are due for replace- Inserting a battery of a different ment after approx.
  • Page 37 Changing battery Remove screw 6 and lift off ● the bottom section of the housing 7 Slide the spent battery 10 out ● from underneath the retainer 8 and insert the new battery – making sure the positive terminal faces up Place the bottom section of ●...

  • Page 38: Technical Data

    Technical data Anti-theft alarm Neutral activation time 15 seconds Alarm duration 26 seconds Neutral time between two 10 seconds consecutive alarms Operating temperature (-40 °F to 185 °F) (–40 °C to +85 °C) ±0.7° Trigger angle of the motion sensor Current consumption (idle <...

  • Page 39: Index

    Index Activation phases, 12 Remote control Activation with motion sensor, 10 closing, 20 Alarm, 13 opening, 20 Alarm function Remote control unit Deactivating with remote Registering, 29, 30, 31 control unit, 14 Synchronizing, 33 Deactivating without remote control unit, 15 Safety shutdown, 22 Status LED, 4 Changing battery, 34, 35...
  • Page 43 Errors and omissions accepted. Dimensions, weights, con- © 2005 BMW Motorrad sumption and performance Reprinting, including excerpts, specifications take the corres- only with the written consent of ponding tolerances into BMW Motorrad, After Sales.
  • Page 44 BMW recommends Castrol BMW Motorrad Order No.: 01 47 7 695 367 01.2005 The Ultimate 2nd edition US / RF Driving Machine...
