KNOMI 2

VERSION 2024-01-05

Table of Contents

Need help?

Do you have a question about the KNOMI 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for BIG TREE TECH KNOMI 2

Page 1 KNOMI 2 VERSION 2024-01-05...
Page 2 2023.11 Original Corrected: The direction of antenna pasting. Updated: The printed part for the StealthBurner Main Body for KNOMI 2 has been v1.2 2024.01 updated to version 1.1. The gap has been increased to accommodate the Orbiter V2.0 and prevent issues caused by printing tolerances.
Page 3: Table Of Contents
Nozzle/Bed Temperature Adjustment Overview Settings Adjust KNOMI UI Colors Conﬁguring WI-FI Adjust Backlight Brightness Install KNOMI 2 to StealthBurner Get Online Manual Adding Relevant Macros KNOMI UI Status Icons Updating Firmware Thanks for providing guidance on Voron's ofﬁcial style build guide.
Page 4 Speciﬁcations WWW.BIGTREE-TECH.COM Screen Display Size 1.28 inches Display Area 32.4(H)mm x 32.4(V)mm Resolution 240 RGB × 240 dots Viewing Angle 178° Backlight Brightness 400 Cd/m² Backlight Lifespan >20,000 hours Chip GC9A01 Power Supply Input DC 5V 1A Logic Voltage DC 3.3V Rated Power Communication &...
Page 5: Performance Comparison Test
DOES USING KNOMI 2 IMPACT YOUR STEALTHBURNER'S PERFORMANCE? We have customized installation print parts for KNOMI 2, facilitating its easy installation into your Voron StealthBurner. In particular, our StealthBurner Main Body not only retains the original fan positions but also incorporates a circular ventilation opening at the top, enhancing compatibility and optimizing heat dissipation.
Page 6 We conducted a comparative analysis measuring wind speed and acoustic energy levels between the original StealthBurner and our customized version featuring vents and KNOMI 2 add-on. The results showed that both versions performed similarly, indicating that adding KNOMI 2 will not compromise the performance of the StealthBurner.
Page 7: Packing List
PACKING LIST WWW.BIGTREE-TECH.COM KNOMI 2 ANTENNA CABLE ( ZH1.25 2-Pin to Dual DuPont 2.54 1-Pin )
Page 8: Overview
OVERVIEW WWW.BIGTREE-TECH.COM 38.48mm 35.65mm BOOT POWER IN DC 5V USB-C （UART TO USB） DC 5V IN...
Page 9: Configuring Wi-Fi
WWW.BIGTREE-TECH.COM KNOMI 2 STARTUP Power KNOMI 2 via the USB-C or ZH1.25 connector. On power up, KNOMI 2 will display the HELLO interface indicating readiness for network conﬁguration. This interface appears in three cases: ﬁrst boot, after factory reset, or if unable to connect to the previously set Wi-Fi within 15 seconds of boot.
Page 10 Enter the printer‘s IP address, and then click the Submit button. CONNECTING TO KNOMI 2 Use a device that supports Wi-Fi to ﬁnd and connect to the “BTT-KNOMI” network. Approximately 10 seconds later, KNOMI 2 will switch to the main interface.
Page 11 Due to device compatibility issues, KNOMI 2 cannot conﬁgure networks with WPA PSK encryption mode. If you're having trouble getting your network to conﬁgure successfully with KNOMI 2, please check the encryption mode of your router. You may need to switch your router's encryption to a mode like WPA/WPA2 PSK mixed mode, or another mode.
Page 12: Install Knomi 2 To Stealthburner

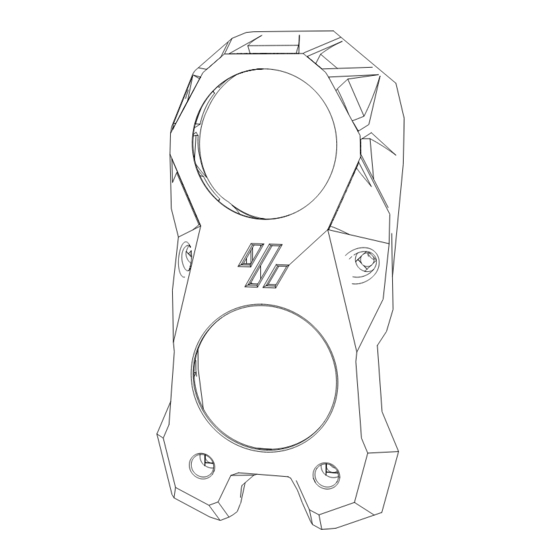

INSTALL KNOMI 2 TO STEALTHBURNER WWW.BIGTREE-TECH.COM StealthBurner Main Body for KNOMI 2 v1.1 CABLE LAYOUT Before starting the assembly, thread the wires through the holes on the printed parts as shown. This step is crucial because it will be difﬁcult to thread the wires through the holes after the other components have been installed.
Page 13 INSTALL KNOMI 2 TO STEALTHBURNER WWW.BIGTREE-TECH.COM CONNECT POWER AND ANTENNA Connect the ZH1.25 connector of the power cable and the antenna to their respective ports on KNOMI 2.
Page 14 INSTALL KNOMI 2 TO STEALTHBURNER WWW.BIGTREE-TECH.COM Mounting Plate TIPS To insert KNOMI 2, ﬁrst, tilt KNOMI 2, aligning its bottom with the corresponding position on the StealthBurner Main Body for KNOMI 2 v1.1 and position it. Then, carefully integrate the entire KNOMI 2 into the StealthBurner Main Body for KNOMI 2 v1.1 until it is completely ﬂush with the...
Page 15 INSTALL KNOMI 2 TO STEALTHBURNER WWW.BIGTREE-TECH.COM TURBINE FAN Install the turbine fan using the same steps as without KNOMI 2. ANTENNA INSTALLATION After removing the backing paper from the antenna, stick it on the back of the turbine fan.
Page 16 INSTALL KNOMI 2 TO STEALTHBURNER WWW.BIGTREE-TECH.COM EBB SB0000 CAN Install the EBB SB0000 CAN or a similar tool board (you can skip this step if you are not using the EBB SB0000 CAN or a similar tool board).
Page 17 WWW.BIGTREE-TECH.COM POWER CABLE ROUTING Power Supply As shown, guide KNOMI 2's power cable through If you are not using the EBB SB0000 CAN or a similar the hole in the printed part, and then direct it tool board, after routing the power cable as shown towards the rear of the EBB SB0000 CAN.
Page 18 WWW.BIGTREE-TECH.COM Great job getting KNOMI 2 installed on your StealthBurner! Now just keep following the regular StealthBurner instructions to get the LED, axial fan, and other parts put together. Before you power it on, be sure to check carefully for any problems like shorts or reversed polarity.
Page 19: Adding Relevant Macros
ADDING RELEVANT MACROS WWW.BIGTREE-TECH.COM [gcode_macro _KNOMI_STATUS] variable_homing: False variable_probing: False variable_qgling: False variable_heating_nozzle: False variable_heating_bed: False gcode: [gcode_macro M109] rename_existing: M109.1 gcode: SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=heating_nozzle VALUE=True M109.1 {rawparams} SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=heating_nozzle VALUE=False [gcode_macro M190] rename_existing: M190.1 gcode: SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=heating_bed VALUE=True M190.1 {rawparams} SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=heating_bed VALUE=False [gcode_macro G28]...
Page 20 ADDING RELEVANT MACROS WWW.BIGTREE-TECH.COM If the printer has a QGL feature : [gcode_macro QUAD_GANTRY_LEVEL] rename_existing: BTT_QUAD_GANTRY_LEVEL gcode: SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=qgling VALUE=True BTT_QUAD_GANTRY_LEVEL SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=qgling VALUE=False...
Page 21 ADDING RELEVANT MACROS WWW.BIGTREE-TECH.COM If there is no QGL but there is a Z_TILT function, you can follow the settings below : [gcode_macro QUAD_GANTRY_LEVEL] gcode: SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=qgling VALUE=True Z_TILT_ADJUST SET_GCODE_VARIABLE MACRO=_KNOMI_STATUS VARIABLE=qgling VALUE=False...
Page 22: Updating Firmware
UPDATING FIRMWARE WWW.BIGTREE-TECH.COM Enter http://knomi.local into your browser to access the KNOMI 2 network conﬁguration page. Scroll to the bottom of the page and click “Update FW”. Click on“Choose File”on the ﬁrmware update page.
Page 23 UPDATING FIRMWARE WWW.BIGTREE-TECH.COM Select the xxx.bin ﬁle. The ﬁrmware will automatically update over-the-air.
Page 24 UPDATING FIRMWARE WWW.BIGTREE-TECH.COM KNOMI 2 will reboot to indicate a successful update. The page will also show information that the update succeeded. At this point, you can click “Back” to return to the main KNOMI 2 network conﬁguration interface.
Page 25: Knomi Ui
KNOMI UI WWW.BIGTREE-TECH.COM KNOMI CONTROL UI INSTRUCTION & GESTURE OPERATION KNOMI 2 supports full-screen touch, swiping up, down, left, and right, as well as long press operations. Main Interface Extruding and Standby ABL/QGL/Homing Nozzle/Heated Bed Settings QR Code for the...
Page 26: To Extrude And Retract Filament
KNOMI UI WWW.BIGTREE-TECH.COM HOW TO EXTRUDE AND RETRACT FILAMENT？ Swipe right from the Standby UI to access the Extruding/Retracting Filament interface. Retraction Command Current Nozzle Temperature Length of Filament during Extrusion/Retraction Speed during Extrusion/Retraction Target Temperature Extrusion Command...
Page 27 , keep your ﬁnger on the screen, and adjust the length and speed by scrolling the respective bars up and down until you reach your preferred values, release your ﬁnger and tap . KNOMI 2 will automatically return to the Extruding/Retracting Filament interface with the new value selected.
Page 28: To Abl/Qgl/Homing
Swipe left from the Standby UI to access the ABL/QGL/Homing interface. For ABL 1. Tap Represents conﬁrmation to start, KNOMI 2 will display the ABL UI, indicating the machine is performing ABL. Represents exit, KNOMI 2 will return to the ABL/QGL/Homing interface.
Page 29: Nozzle/Bed Temperature Adjustment
KNOMI UI WWW.BIGTREE-TECH.COM HOW TO ADJUST THE TEMPERATURE OF THE NOZZLE/BED? Swipe left from the Standby UI to access the Nozzle/Heated Bed Temperature Settings interface. Current Heated Bed Temperature Current Nozzle Temperature Target Temperature Target Temperature Preheat...
Page 30 KNOMI UI WWW.BIGTREE-TECH.COM 1. Tap 2. Turn the temperature dial clockwise or counter-clockwise to change the setting. When you've picked the temp you want, tap and you'll go back to the Nozzle/Heated Bed Temperature Settings interface with the new value selected. The nozzle/heated bed will heat up or cool down to match that target.
Page 31 ﬁnd your desired ﬁlament and tap it. KNOMI 2 will go back to the Nozzle/Heated Bed Temperature Settings interface and your chosen nozzle/bed temps will be set. The nozzle and bed will start heating up/cool down to reach the target temp.
Page 32: Settings
KNOMI UI WWW.BIGTREE-TECH.COM SETTINGS Swipe left from the Standby UI to access Settings Interface. UI Theme Color DIY KNOMI UI Color with RGB Selection. Backlight Adjust backlight brightness. Klipper Control Restart / Firmware Restart. Service Control Klipper, Crowsnest, Klipper MCU, Moonraker, KlipperScreen (start/stop/restart available for each). Host Control Reboot /Shutdown STA: shows KNOMI's network IP when connected to a router;...
Page 33: Adjust Knomi Ui Colors
HOW TO ADJUST KNOMI UI COLORS? 1. On the Settings interface, tap 2. KNOMI 2 has preset red(Default), blue, purple, green. Slide up/down to position the selection box on the desired color, then tap the color name to change the KNOMI UI to that color.
Page 34 KNOMI UI WWW.BIGTREE-TECH.COM You can further customize the saturation and brightness: After selecting a color on the wheel, long press the black area outside the wheel to cycle through saturation, brightness, and back to the RGB wheel. * When you pick a saturation/brightness level, returning to the RGB wheel will show that saturation/brightness.
Page 35: Adjust Backlight Brightness
KNOMI UI WWW.BIGTREE-TECH.COM HOW TO ADJUST BRIGHTNESS? 1. On the Settings interface, tap 2. Keep your ﬁnger on the screen and slide up/down to adjust the icon. The screen brightness will dim/brighten with the icon. Once at the desired brightness, swipe left/right to go back to the Settings interface. HOW TO ACCESS THE ONLINE USER MANUAL? From the Standby interface, swipe left to the QR code for the online manual.
Page 36: Knomi Ui Status Icons
KNOMI UI WWW.BIGTREE-TECH.COM KNOMI UI Status Icons KNOMI UI uses visual elements to provide status information at different stages of printer operation : The bed and nozzle have reached their respective READY TO STANDBY The printer awaits operational instructions. target temperatures, and the printer is ready to PRINT print.
Page 37: Faq
WWW.BIGTREE-TECH.COM Moonraker KNOMI is unable to obtain data from Moonraker. Please conﬁrm the printer is running normally and the Klipper IP set Connect failed Please check in KNOMI is correct. Your printer or KNOMI IP KNOMI can get data from Moonraker, but the data returned by Moonraker indicates the printer is in an abnormal s Printer is Unoperational tate.
Page 38 WWW.BIGTREE-TECH.COM Website GitHub Discord www.discord.gg/5jdwbYYZuv www.bigtree-tech.com www.github.com/bigtreetech...
