Summary of Contents for Technical Pro LG700x

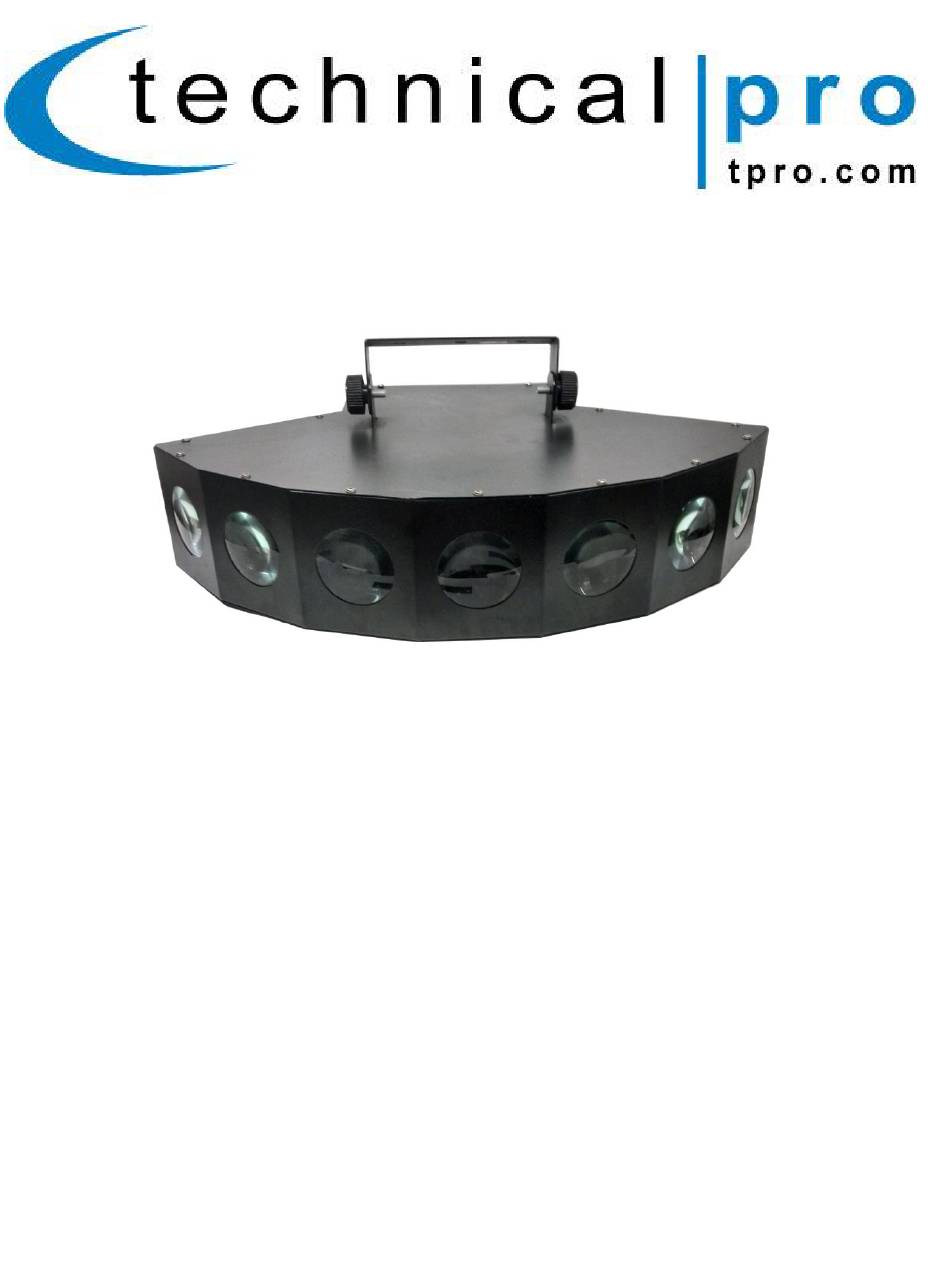

- Page 1 User Manual for: Professional DJ Multi Beam LED 7 Way light With DMX MODEL: LG700x...
- Page 2 Introduction Congratulations and thank you for your purchase of this Technical Pro LED stage effect light. To get the most from your unit it is recommended that you review all of the information provided in this instruction manual before operating this equipment.
- Page 3 4. DMX Input (XLR):DMX(Digital Multiplex) is the form of communication between controller and fixtures. Connect the DMX output from the controller to this input, When linking multiple LG700x. More details on the settings can be found below. 5. DMX Output(XLR): DMX(Digital Multiplex) is the form of communication between controller and fixtures.
- Page 4 LG700x AC Power: This fixture runs on 110VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. Always connect the fixture to a switched circuit. Never connect the fixture to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0 to 100% switch.
- Page 5 LG700x What is DMX: There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture capable of receiving DMX will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller.
- Page 6 LG700x DIP Instructions: Function Instruction If 10 is”on”, it is Auto-pilot, 3,4,5,6 is for auto mode setting 1,2 is speed for auto mode. If 9,10 are”on”, it is strobe mode, 3,4,5,6 is setting for strobe mode, 1,2 is speed for strobe.
- Page 7 LG700x DIP Detail function The Number under the DIP address: 1,2,4,8,16,32,64,128,256,512, it works with DMX Controller, when the DMX controller connect with the lights and many lights work together, you can set different lights with different channel of DMX Controller as the first channel of a special lights.
- Page 8 LG700x IF 5 on, it means to use the Channel 16 of the DMX controller to be the CH1 of a special lights. Then the next channel17 of the DMX controller as the CH2 to control the lights, and so on...
- Page 9 LG700x IF 1 and 3 on, it is 1+4=5, it means to use the Channel 5 of the DMX controller to be the CH1 of a special lights, then the next channel 6 of the DMX controller as the CH2 to control the lights, and so on.
- Page 10 12 Channel Mode (DMX): When use the LG700x together with a DMX controller, set the DIP to 1 on, then use the DMX controller to adjust the settings of CH1, CH2, CH3 and CH4, CH5, CH6, CH7, CH8 to show different effect.
- Page 11 LG700x Master-Slave set Two or more than two identical lamps connected with 3-pin DMX signal cable, set any one as host as demo or gradual or other play mode, other lamps receiving address set as DMX mode(DIP 1 on), the master-slave feature allows you control multiple units without having to go each unit and alter the settings, allowing you to quickly adjust the color output throughout the entire venue in seconds.
