NE-600 series
Specification
Model
AML-1200

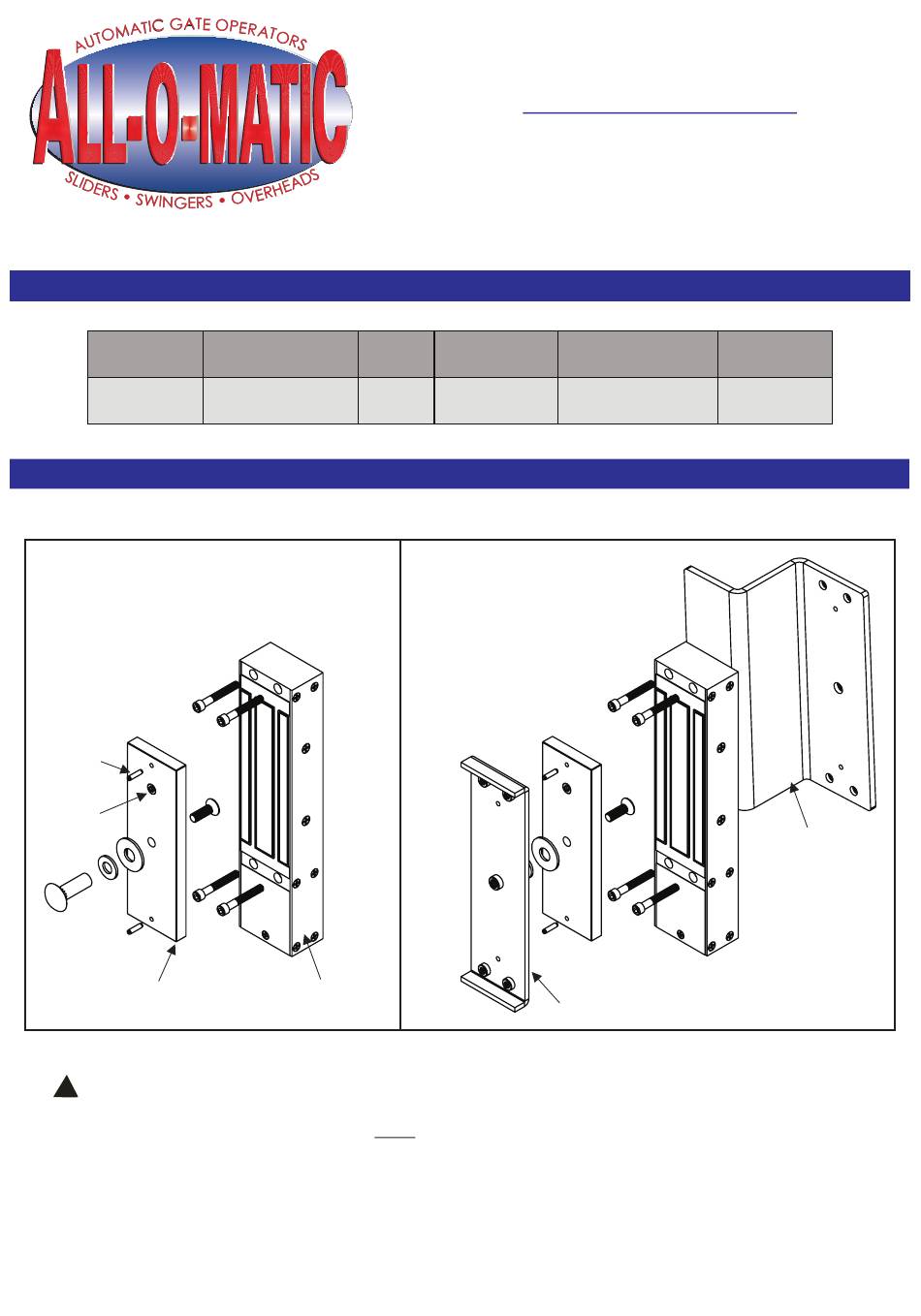

Diagram
(unit:mm)
AML-1200
1/4-28X1.75"
Aligning Pin
M8-1.25
Release Pin
Rubber washer
Flat washer
Mushroom headed
nut
Locking plate armature
!
Cautions:
The locking plate armature should NOT be tight. Use the rubber washer to allow it to freely
Ÿ
adjust and align with the magnetic lock.
The kit includes a 12VDC power supply. Check and make sure the jumpers are in correct
Ÿ
position for the 12VDC before connecting voltage to it. See wiring diagram for jumper
setting.
®
Size(unit:inch)
Voltage
11.25Lx2.06Wx1.56H
12/24VDC
Magnetic lock
Magnetic Lock
AML-1200
Holding Force
Current
12V/420mA
600kg(1200Lbs)
24V/210mA
AML-1200B
Flat mounting bracket
Signal Output
Yes
Z mounting bracket
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for ALL-O-MATIC AML-1200
- Page 1 ® Magnetic Lock NE-600 series AML-1200 Specification Size(unit:inch) Voltage Holding Force Signal Output Model Current 12V/420mA 600kg(1200Lbs) AML-1200 11.25Lx2.06Wx1.56H 12/24VDC 24V/210mA Diagram (unit:mm) AML-1200B AML-1200 1/4-28X1.75” Aligning Pin M8-1.25 Release Pin Rubber washer Z mounting bracket Flat washer Mushroom headed...
- Page 2 WIRING MAGNETIC LOCK TO AC CIRCUIT BOARD 12VDC STEP DOWN TRANSFORMER (INCLUDED WITH MAG LOCK KIT) LOCK TIMER RADIO LOCK 1-PASS FOR MAGNETIC LOCK, SET “LOCK” SLAVE BRAKE DIP SWITCH TO THE “ON” POSITION OPEN L/R WIRING MAGNETIC LOCK TO BLDC/TORO CIRCUIT BOARD C8RB LMC64 82AIM...
