Summary of Contents for Health in motion INSPIRE IC1.5C

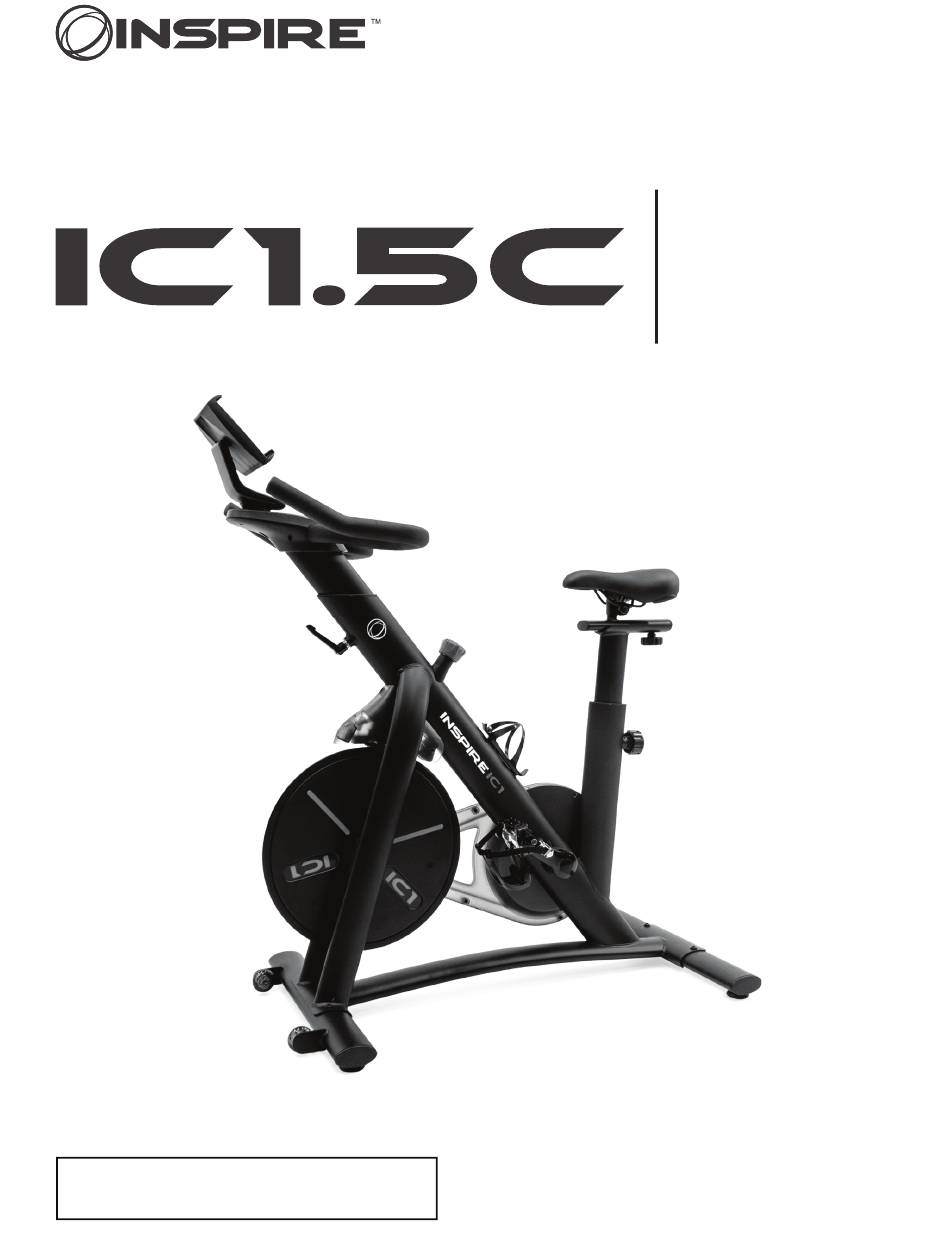

- Page 1 Model # IC1.5C / IC1.5C-CA ITM. / ART. 1405250 USER MANUAL INDOOR CYCLE by Health in Motion LLC October 2020 Record Serial Number Here...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN......................2 IMPORTANT SAFETY NOTICE....................3 WARNING AND IMPORTANT LABEL PLACEMENT............4 ASSEMBLY AND SETUP.....................5 ASSEMBLY INSTRUCTIONS....................7 ADJUSTMENT FEATURES....................9 APP DOWNLOAD......................10 NOTES..........................10 REGULATORY INFORMATION..................10 WARRANTY........................12 IC1.5C EXPLODED VIEW....................13 IC1.5C PARTS LIST......................14 REGISTER WARRANTY ONLINE To register your product for warranty, visit inspirefitness.com/support. BEFORE YOU BEGIN Welcome to the Inspire Fitness Family! Thank you for choosing the Inspire Fitness IC1.5 Indoor Cycle. -
Page 3: Important Safety Notice
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. Health In Motion, LLC. DOES NOT ASSUME ANY RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. -
Page 4: Warning And Important Label Placement
DISMOUNT BIKE OR REMOVE FEET FROM PEDALS UNTIL PEDALS HAVE COMPLETELY STOPPED. ALWAYS RIDE IN CONTROL. MAKE SURE ALL PULL PINS, LOCKS, AND SAFETY LATCHES ARE IN PLACE AND FULLY ENGAGED BEFORE EACH USE. HEALTH IN MOTION, LLC. Model name: IC1.5 SALES AND SERVICE: (877) 738-1729... -
Page 5: Assembly And Setup
ASSEMBLY AND SETUP Package Contents NAME QTY. NAME QTY. Frame Pedals, Right & Left Handlebars Tablet Mount Front Foot Tube Hardware Kit Rear Foot Tube Pg. 5 V1.2-C-CA... - Page 6 IC1.5C Assembly Hardware Kit NOTE: The parts shown are not drawn to scale. Please use your own ruler or scale to measure the size. Socket Head Cap Screw (M6*16) Socket Head Cap Screw (M8*60) Button Head Cap Screw (M8*45) Flat Washer Flat Washer Wrench Battery...
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1 Attach the front foot tube (3) and rear foot tube (4), using button head cap screws (20) with washers (21). Use the Allen wrench #5 (T2). Step 2 Slide the handlebars (2) into position on the frame (1), secure with two socket head cap screws (22) with washers (21). Use the Allen wrench #6 (T3). - Page 8 Step 3 Attach the right and left pedals (5), keep in mind when installing the left pedal that it has left-handed thread. Use the wrench (T1). Attach the tablet mount (118) to the handlebars (2) using two socket head cap screws (114). Use the allen wrench #5 (T2).
-
Page 9: Adjustment Features
ADJUSTMENT FEATURES RESISTANCE ADJUSTMENT AND TABLET MOUNT ANGLE PUSH TO STOP KNOB ADJUSTMENT SEAT FORE AND AFT ADJUSTMENT SEAT HEIGHT ADJUSTMENT HANDLEBAR HEIGHT ADJUSTMENT FRAME LEVELING PADS Handlebar Hand Positions • Seated Flat – Hand Position 1 or 2 • Seated Climb –... -
Page 10: App Download
APP DOWNLOAD Need some workout ideas and motivation? Ready to ride with some of the best trainers in the nation? Start your FREE trial of our all-new Inspire Fitness mobile app. It’s filled with live and on demand video workouts, as well as written workout plans designed by our very own Inspire Fitness trainers. - Page 11 Inspire Customer Support. RED Declaration of Conformity (DOC) We, Health In Motion, LLC 255 Airport Circle, Suite 101 Corona, California 92880, United States declare under our sole responsibility that the product: Spin Bike IC1.5 to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the RED Directive (2014/53/EU).
-
Page 12: Warranty
1 Year LABOR Inspire Fitness warrants that the Product you have purchased for personal, family or household use from Health in Motion or from an authorized Inspire Fitness reseller is free from defects in materials or workmanship under normal use during the warranty period. -
Page 13: Ic1.5C Exploded View
IC1.5C EXPLODED VIEW Pg. 13 V1.2-C-CA... -
Page 14: Ic1.5C Parts List
IC1.5C PARTS LIST Description Qty. Description Qty. BC423-200-010 Main Frame BC423-561-031 Press Pulley Sleeve BC423-320-006PZ Handlebar Assembly BC423-881-050 Press Pulley BC423-220-004 Front Stabilizer 0116-006-008 Flat Washer BC423-220-003 Rear Stabilizer 0111-006-128A Hex Bolt 5 L/R B465-340-001 Crank Pedal Right and Left BC423-321-010 Fix Plate BC423-320-007... - Page 15 Distributed by: Costco Wholesale Spain S.L.U. Costco Wholesale New Zealand Limited Costco Wholesale Corporation Polígono Empresarial Los Gavilanes 67 Maki Street P.O. Box 34535 C/ Agustín de Betancourt, 17 Massey, Auckland 0814 28906 Getafe (Madrid) España New Zealand Seattle, WA 98124-1535 NIF: B86509460 1-800-774-2678 900 111 155...
- Page 16 V1.0-C...
