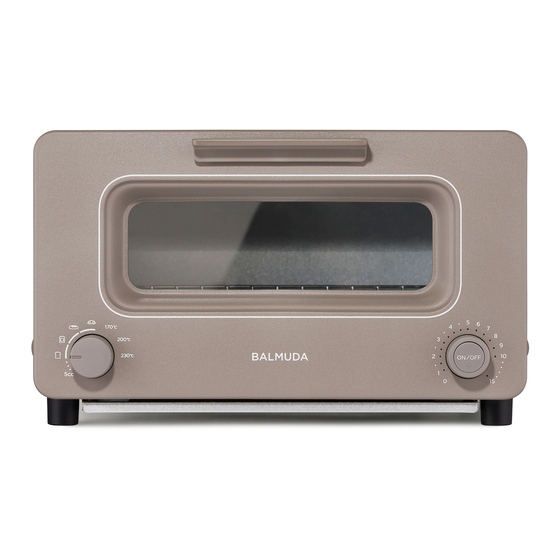

BALMUDA K11E-BK Instruction Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Electric Oven (For Household Use)

K11E - BK / K11E - WH /

K11E - CW

Instruction Manual

IMPORTANT

Thank you for purchasing BALMUDA The Toaster. Before

using the product, be sure to read this manual and its "Safety

precautions" section (P.1 to 7). In addition, pay special

attention to the contents marked with

This manual also serves as a warranty. Carefully store the

manual after reading it together with your proof of purchase,

which shows the date of purchase and dealer's name.

FOR USE IN SINGAPORE AND MALAYSIA ONLY

The Product should not be used outside of Singapore and

Malaysia. The warranty shall be void and repair shall not be

covered if the product is used outside Singapore and Malaysia.

FOR USE IN SINGAPORE AND MALAYSIA ONLY

WARRANTY VOID IF USED OUTSIDE SINGAPORE AND MALAYSIA

Product user registration

To ensure that you receive the best product support,

please register your BALMUDA product. Please pre-

pare your 13 digit alphanumeric serial number, which

can be found on the label on the rear of the main unit.

Limited Warranty

SINGAPORE

MALAYSIA

Contents

Safety precautions ........................................... 1

Contents of package ....................................... 8

Names of parts ................................................ 8

Using the product for the first time ................... 9

Control/display section .................................. 13

Cooking ......................................................... 16

Points to be always observed during

cooking ......................................................... 21

Maintenance procedure ................................. 22

When a malfunction is suspected .................. 26

Frequently asked questions ........................... 26

Customer support ......................................... 29

Limited warranty and after-sales service ........ 29

Disposal ........................................................ 29

Product specifications ................................... 29

Table of Contents

Need help?

Do you have a question about the K11E-BK and is the answer not in the manual?

Questions and answers

Summary of Contents for BALMUDA K11E-BK

Page 1: Table Of Contents
Using the product for the first time ....9 IMPORTANT Control/display section ........13 Cooking ............16 Thank you for purchasing BALMUDA The Toaster. Before Points to be always observed during using the product, be sure to read this manual and its “Safety cooking ............21 precautions”...
Page 2: Safety Precautions
If the supply cord is damaged, it must been given supervision or be replaced by the manufacturer, its instruction concerning use service agent (BALMUDA Support → of the appliance by a person P.29) or similary qualified persons in responsible for their safety.
Page 3 Installation (continued) Do not use the product near Place the product in a horizontal combustible materials, such as and stable location. curtains. Placing the product in an unstable location may cause the following: the Doing so may cause fire. door may open while the product is Do not place the product on operating;...
Page 4 Doing so may cause fire or malfunction. Please contact BALMUDA Support Water may spill, causing burns or (P.29) for repair. electric shock. To check whether water is in the boiler...
Page 5 Failing to do so may cause injury, electric shock, or fire. Stop use of the product and contact BALMUDA Support (P.29). Examples of abnormalities and malfunctions: • the power cord or the power plug is abnormally hot, •...
Page 6 Cooking Do not pour any liquid other than Do not use parchment paper, tap water into the water inlet and baking sheets, or paper pans for the boiler tray. baking cakes. Pouring oil, seasoning, or other Doing so may cause fire. ingredients into the water inlet or the Limit the thickness of food to boiler tray may cause fire or electric...
Page 7 CAUTION Installation Do not put the main unit on top of another appliance, such as a microwave oven. Do not put other appliances on top of the product. Doing so may cause a failure or malfunction. Usage Do not splash water over or apply excessive force to the glass of the door.
Page 8 Cooking Do not leave the main unit Do not use the product with the unattended during cooking. door open. Doing so may cause fire. When leaving Steam may be discharged from the the main unit unattended, be sure to boiler section, causing burns. press the power ON/OFF button to turn Do not heat canned or bottled the power “OFF”.
Page 9: Contents Of Package
Contents of package 5 cc cup Instruction Manual Guide Book (Stored near the Instruction Manual (With Warranty) Main unit on the package cushioning material.) Installed on the main unit Toasting rack (Stored in the package cushioning Boiler cover Crumb catcher material under the main unit.) Do not use a dish washer to clean the product.
Page 10: Using The Product For The First Time
Using the product for the first time Take care with the power consumption Be careful when the product is used 6.2A simultaneously with other electrical appliances, because the breaker may trip. 1420W The product operates with 6.2 A (1,420 W). When using the product for the first time, you first need to remove the fixing tape, before attaching and installing the parts according to the procedure below.
Page 11 Install the toasting rack. Place the two rack hooks on the rear of the toasting rack on the shaft at the back inside the unit. The door may open rapidly if the toasting rack is not installed. Be sure to slowly open the door completely while holding the handle. Notes: •...
Page 12 While drawing the toasting rack toward the front, place the legs on the two hooks inside the door. Note: Confirm that the toasting rack is firmly placed on the shaft and the door hooks. Door Door Hook Hook hook hook Check that the crumb catcher is installed correctly.
Page 13 Place the main unit. Place the main unit so that there is a space between the unit and its surroundings as shown in the figure below. (Installation Standards Act) Side Side 4.5 cm or more 4.5 cm or more 10 cm or more Rear 4.5 cm or more When placing the main unit, take care with the following points.
Page 14: Control/Display Section
Control/display section Mode selection dial Dial for selecting the cooking mode. ④ ③ ⑤ ② ① Reference Steam Mode Applications Heater operation time function Continues warming up the ① Toast mode entire bread at a constant Bread, bagel, and 2.5 to 3.5 temperature, and lightly English muffin minutes...
Page 15 • Always ensure you select the correct mode. Selecting an inappropriate mode may cause food to catch fire. • If you want to warm up the bread further, reheat the bread at 170°C (Classic mode) for a desired time. • If you want to brown the bread further, reheat the bread at 250°C (Classic mode) until a desired browning is achieved.
Page 16 • When cooking is completed, the power is automatically turned “OFF”. Original recipes are available From toast every morning to something special on weekends. SINGAPORE MALAYSIA BALMUDA’s kitchen team and other professionals introduce their recipes. • Guide Book (separate) • Website BALMUDA recipe...
Page 17: Cooking
Cooking Insert the power plug into the household outlet. Open the door and place food on the toasting rack. For 1 slice of bread Back Front For 2 or more slices Back Front • Limit the thickness of food to 5.5 cm or less. The height of food on the toasting rack must be lower than the guideline.
Page 18 Pour water into the 5 cc cup. • Boil water to create steam, and use the steam together with the heat from the heater tubes to warm up food. • The amount of water depends on the cooking mode and time. Refer to the table below. Cooking Cooking Amount...
Page 19 Close the door gently. Main unit Water supply cover Door Do not put the water supply cover between the door and the main unit. Doing so may cause fire or malfunction. Press the power ON/OFF button to turn “ON” the power of the main unit.
Page 20 Turn the mode selection dial to select one of the cooking modes. When the mode selection dial is turned, you hear a short beep. For details of the cooking modes, check with “Mode selection dial” (P.13) or the separate Guide Book. Beep Beep Turn the timer dial to set the cooking time.
Page 21 When you hear a “bi-bing, bi-bing” sound, which indicates the completion of cooking, open the door gently and remove the food. Turned OFF Bi-bing Bi-bing Bi-bing Bi-bing Disconnect the power plug from the outlet. This completes the cooking.
Page 22: Points To Be Always Observed During Cooking
Points to be always observed during cooking This toaster uses a heater to cook at 200°C or higher. When using the product, take care with the following points. Do not touch the metal part when removing food. The temperature inside the toaster is high immediately after cooking. Touching the metal part may cause burns.
Page 23: Maintenance Procedure
Maintenance procedure Before performing maintenance, be sure to disconnect the power plug from the outlet and wait for the main unit to cool down sufficiently. Failing to do so may cause burns or electric shock. Wear heavy gloves when performing maintenance for the inside of the toaster. Failing to do so may cause injury to hands or fingers.
Page 24 Periodic maintenance For parts other than the crumb catcher, periodically perform maintenance according to the table and procedure below. When the inside of the toaster is stained, it may cause uneven toasting and other issues. Wipe with neutral Wipe with Clean with neutral Parts detergent...
Page 25 ■ Maintenance procedure for the toasting rack ① Remove the toasting rack from the main unit. Door Door hook hook Slowly open the door completely and continue to hold its handle. Then, press the toasting rack downward and pull it toward the front to remove the front legs from the door hook. Rack Rack hook...
Page 26 ■ Maintenance procedure for the boiler section ① Remove the boiler cover in the direction of the arrow. Boiler cover ② Wipe inside and around the boiler tray with a soft cloth moistened with water. Boiler tray If dirt remains, soak a soft cloth or the like in diluted dishwashing detergent (neutral) and wring it out thoroughly.
Page 27: When A Malfunction Is Suspected
If the buzzer sounds and the timer indicator keeps blinking, stop the operation for safety. Sufficiently cool down the inside of the unit (leave the unit with the door open for about 30 minutes) before cooking again. If the problem is not solved, disconnect the power plug from the outlet, and contact BALMUDA Support (P.29).
Page 28 Problem Check / Troubleshooting When the boiler tray is heated (for example, when toasting consecutively), pouring You hear a hissing noise when water into the tray makes a hissing sound as water evaporates in the tray. water is poured into the boiler However, it has no influence on the result of toasting.
Page 29 Problem Check / Troubleshooting Check whether the inside temperature is high. When the main unit is used consecutively, the inside temperature may be so high that no condensation occurs and steam is not visible. However, this is not abnormal. Check whether the boiler tray is supplied with water. No steam is generated.
Page 30: Customer Support
1) The warranty period is 12 (twelve) months from the date of purchase. 2) Product must be purchased from BALMUDA authorised distributor or dealer in Singapore or Malaysia. 3) Please ensure you retain your proof of purchase (including purchase receipt and delivery slip) from an authorised distributor or dealer in Singapore or Malaysia.
Page 32 Tel. Please retain your purchase receipt as proof of purchase. Your BALMUDA product is warranted against defective material, manufacturing defects for a period of 12 months from the date of purchase subject to terms and conditions. Product warranty coverage is provided for malfunctions that occur under normal household use and in conditions included in the instruction manual, on labels of the unit, or in any other cautionary notes.
