Summary of Contents for Soltaro BCP Series

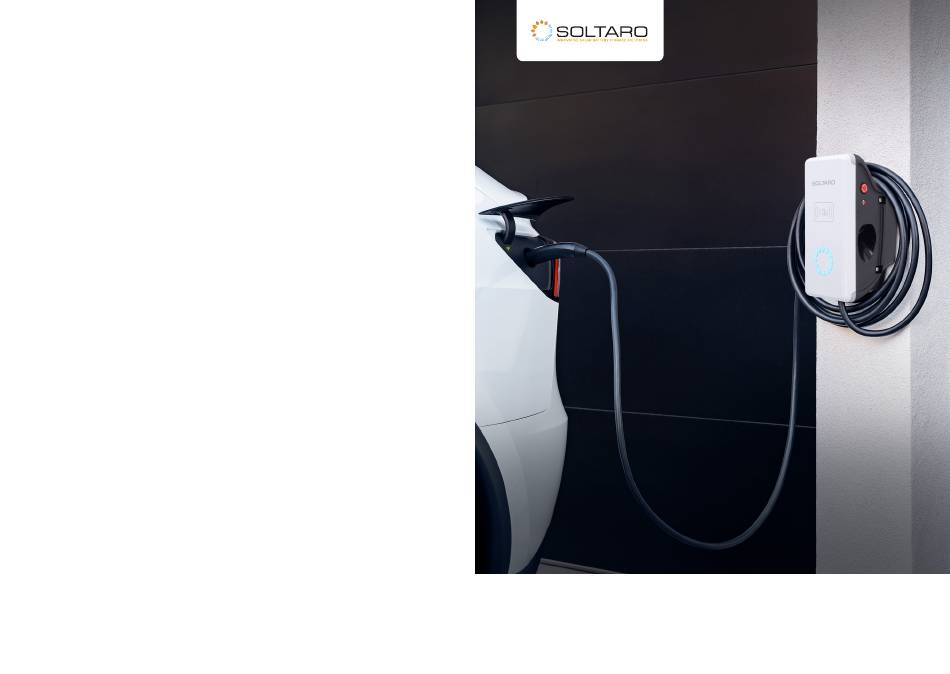

- Page 1 BCP Series AC EV Charger Use and lnstallation Manual...
-
Page 2: Table Of Contents
CONTENTS Safety information Operating status Power on checking P-19 Important safety instructions P-01 ● ● Button P-19 Cautions P-02 ● ● LED lights instructions P-20 Notes P-02 ● ● Buzzer prompt description P-24 Specification P-03 ● ● Power Comparison Table P-03 ●... -
Page 3: Safety Information
This device should be supervised when used around children. Cautions The BCP series EV Charger must be grounded through a permanent wiring system or an equipment grounding conductor. Do not use private power generators as a power source for charging. -
Page 4: Specification
Safety information Safety information Specification Features Build-in with overvoltage and under-voltage protection(U>264V or U<187V), over- ● Description Specification current protection, over temperature protection, imperfect earth detection, CP abnormal Voltage and wiring Single-phase or three-phase EV Charger:AC230V±10%;L1、N、 signal protection and type A + DC 6mA for europe standard. PE Three-phase EV Charger:AC400V±10%;L1、L2、L3、N、PE Operating temperature range: -25 ℃... -
Page 5: Prepare For Installation
Prepare for installation Prepare for installation Position Ensure that the parking position is within range of the charging cable. ● There is enough clearance for the charging cable to wrap around and the charging ● handle can be comfortably positioned on the side of base. If installed in an enclosed garage, choose to install on the side of the EV charger slot. -
Page 6: Power Supply
Normally, the earth wire should be properly connected, otherwise the EV charger will not work. This BCP series AC EV charger must be grounded via a permanent electrical system or equipment grounding Conductor. Before installing an AC EV charger,please confirm the type of grid connection available. -
Page 7: In The Box
In the box Installation instructions Step-by-step installation instructions ① ② ③ ④ (bottom entry wiring) Step 1 Position EV charger Wire box (optional) Mounting Waterproof Cover ⑨ bracket wall The bottom of the positioning plate is 1.2 m away (recommended), if the EV Drill charger is installed close to the edge of The 6 pionts... -
Page 8: Step-By-Step Installation Instructions (Top Entry Wiring
Installation instructions Installation instructions Step-by-step installation instructions Step step installation instructions (bottom entry wiring) top entry wiring Step 3 Step 1 lnstall the EV Charger to the mounting Position plate ⑨ wall The bottom of the positioning plate is 1.2 m away (recommended), if M6*8 bolts Drill Align the side hole of EV charger to... -
Page 9: Step-By-Step Installation Instructions (Rear Entry Wiring
Installation instructions Installation instructions Step step installation instructions Step-by-step installation instructions (rear entry wiring) top entry wiring Step 3 Step 1 Cut out on the back of the EV charger. Position ⑨ wall The bottom of the positioning plate M6*8 bolts Find the hole for cut out on the back is 1.2 m away (recommended), if the Drill... -
Page 10: Set The Operating Current
Installation instructions Installation instructions Step-by-step installation instructions Warning (rear entry wiring) Do not connect the power cord before reading and fully understanding all the concepts introduced in this section. If you are not sure whether the type of power Step 3 supply on the repair panel is available, please consult an electrician for assistance. -
Page 11: Set The Dip Switch
Installation instructions Installation instructions Set the DIP switch Reinstall the sealing cover and Turn on power ● Follow these instructions to configure the DIP switch.The following illustration shows an enlarged view of the DIP and rotary switches. ● ①. Use a screwdriver to lightly secure the sealing cover by installing ①... -
Page 12: Operating Status
Operating status Operating status Power on checking LED light instructions Check content Normal Status Check and ensure the circuit breaker for the EV charger is reasonably selected LED Behavior LED Status Status Description Potential Cause Solution Confirm that there is no short circuit between the Lights OFF No power supply No power... - Page 13 Operating status Operating status Normal Status Fault Status Status Description Status Description LED Behavior LED Status Potential Cause Solution LED Behavior LED Status Potential Cause Solution Blue light rotates No RFID card All lights strobe Contactor failure Contactor adhesion Check whether ( 4 times per second) or tripping back and forth...
-
Page 14: Buzzer Prompt Description
Operating status Operating status Buzzer prompt description Fault Status Status Description LED Behavior LED Status Potential Cause Solution Buzzer Status Operating Red light flashes Over current Short circuit may Call for Short buzzing one sound Swipe to start Start charging continuously happen professional repair... -
Page 15: Maintenance Instructions
Maintenance instructions Maintenance instructions Safety notice ln order to ensure the normal service life of the charging pile and reduce the risk during use, it must be overhauled with in the specified time period; the overhaul of the equipment Operation and maintenance risk notification should be carried out by professionals, band qualified and safe overhaul tools should be used. -
Page 16: Dlb Installation Instructions
DLB Installation instructions DLB Installation instructions 1 Phase Grid 2 Phase Grid Normal DLB Normal DLB Distribution Distribution Other household Other household Load Appliances Load Appliances State Grid State Grid Clamp Clamp Electric Car Electric Car EV Charger EV Charger Solar DLB Solar DLB Distribution... -
Page 17: Phase Grid
DLB Installation instructions DLB Installation instructions 3 Phase Grid 2 Live wire 1 earth wire power supply method Normal DLB Normal DLB Distribution Distribution Other household Other household Load Appliances Load Appliances State Grid State Grid Clamp Clamp L1 L2 PE L1 L2 Electric Car Electric Car...
