TS-03 Pneumatic Crimp Machine

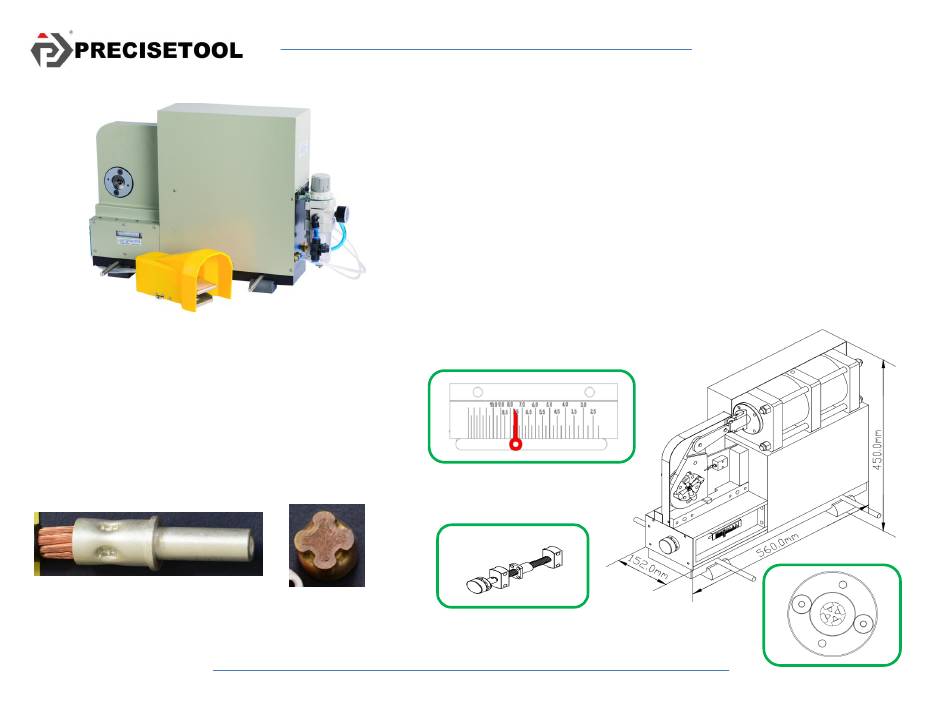

Pic. 1-1

GENERAL INFORMATION

TS-03 is a brand new design, desktop four-indent pneumatic crimping
machine, used to crimping the wire and contact in electronic connectors.
WIRE SIZE: from 53-10.5mm² 1/0AWG- 7AWG
Gears Range: continuous adjustment from 3.0-8.0mm.
Through-hole Dia. : 21.5mm
Crimp Sample
Pic. 2-1
TS-03 Pneumatic Crimp Machine Instruction
WORKING PRINCPLES
1. The crimp machine adopts curve propulsion mechanism, its applied force transfers through four curves in
the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear
motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle
controlled precision ratchet assures the consistency of impression and the crimping quality of wires and
contacts.
2. The stroke control is adopted inside the crimp machine to ensure the consistency of the crimping. If the air
pressure is insufficient or the air supply time is too short and the crimping cannot be completed correctly,
the pressure block will not be retracted because the mechanical switch of the stroke control is not turned on.
At this time, the air pressure should be adjusted or the air supply time should be increased to make the
pressure block movement reach the selector position. The machine is restored to normal use. (It can also be
reset by using the reset switch, but the crimped contacts should be properly detected and processed)
3. The crimp machine is controlled by the screw rod, and the selector position can be continuously adjusted.
Each time the adjusting knob is rotated by 1/4 turn,the crimping diameter changes by 0.1mm, and the value
of each millimeter changes with the increase of the gear position. With an increase of 0.01 mm. Accurate and
precise continuous adjustment can be achieved.
4. This crimp machine is controlled by its own foot value. The working air pressure is adjusted and
controlled by the pressure regulating valve. Usually, the continuous crimping is not returned due to the
shortage of the air source. It is recommended to adjust the air pressure to 0.6MPa or more.
Section View
Pic. 2-2
