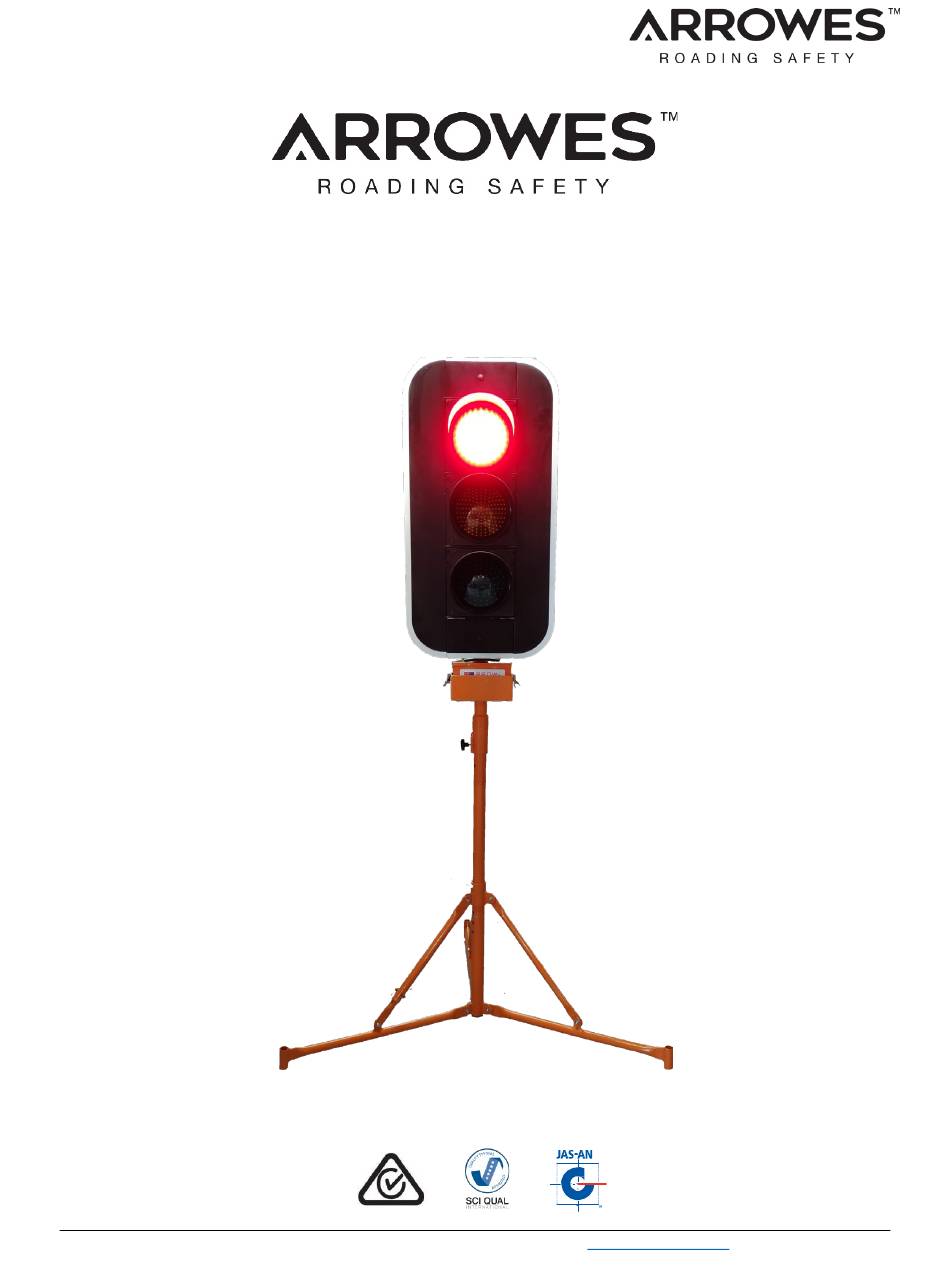

- Page 1 Auto ™ Operations & Service Manual eSTOP™ Auto Operation & Service Manual Version: 2.1 Dated: 24/10/23 Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 1...
- Page 2 Auto ™ Operations & Service Manual Manufactured by: ARROWES Roading Safety 17 Bailey Court Brendale, Queensland 4500 PH: (07) 3881 3302 FAX: (07) 3881 3324 Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 2...
-
Page 3: Table Of Contents
Maintenance of the eSTOP™ ..........................25 Troubleshooting ...............................25 Repairs & Servicing ............................26 Safe Transportation of the eSTOP™ ........................26 Material Life ..............................26 Warranty ................................26 Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 3... -
Page 4: Estop™ System Components Diagram
Battery secure latch (both sides) Battery pack holder Locking screw Centre column Adjustable locking column Locking pin Figure 1 Legs Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 4... - Page 5 9. Carry case User and Service & Operation Manuals 11. 2 target boards (Applicable model only) Carry Case HRCX Antenna Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 5...
-
Page 6: Safety Considerations
Safe Work Method Statements. Any modifications made to the eSTOP™ (unless by or approved by Arrowes) could compromise the function of the eSTOP™ and therefore the safe application of the units and voids the warranty of the eSTOP™. -
Page 7: Estop™ System Specifications
1710 mm x 480mm x 370mm Base width, fully extended: 1600 mm diameter Lantern height: 770 mm Lantern width: 270 mm Lantern depth: 170 mm Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 7... -
Page 8: Labels
Hand Remote Control mimics traffic lantern states in real time • Wind load up to 100km/hr when used as per manufacturer’s guidance • Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 8... -
Page 9: Unit Assembly/On-Site Setup
IMPORTANT: ensure eSTOP™ is stable and is weighted down with sandbags prior to operation. One sand bag per tripod leg is required. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 9... -
Page 10: Target Board Assembly
Target Board Assembly eSTOP Auto ™ Operations & Service Manual Target only applies to applicable systems with Target board brackets. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 10... -
Page 11: Operational Procedures
This switch will turn off the lantern instantaneously as required. It must also be switched off when not in use. Note: When setting up the eSTOP Auto™, the lanterns should face away from motorists until the unit is activated for use to control traffic (Operation Mode). -
Page 12: Hand Remote Controller X - Hrc X
Long press- A Long press of the buttons (more than 5s), applies to the Power Button for powering of and powering off. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 12... -
Page 13: Operational Steps
After 10 seconds, the system with the paired lanterns is in Manual Mode. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 13... - Page 14 HRCX, pressing “Power” and “Wake” button at the same time forces the HRCX to soft reset then power off. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au...
-
Page 15: Pairing The Estop™ Handheld Remote Controller (Hrc X) To Lantern Units
Auto ™ Operations & Service Manual units The eSTOP™ HRCX can be paired to any eSTOP Auto lantern units. Once a lantern unit is paired to a HRCX, it is stored in memory. They will be automatically synced when powered up and ready for operation. - Page 16 It demonstrates the mode and battery status for the paired lantern. Note: allow up to 60 seconds for the paired lanterns to establish communication. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au...
-
Page 17: Estop Auto
HRCX to go Green. Note: Vehicle actuation and count down cannot both be enabled at the same time. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au... -
Page 18: Gui Screens
Lantern Battery Status: xx% (55%) If the HRC is in critical low battery, a “Low Battery Charge Device” warning message is shown in orange. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 18... -
Page 19: User Manual - Estop Dvr Camera System
DVR to complete startup and start recording. A Green light under SD status indicates the DVR is recording. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 19... - Page 20 This allows camera positions to be adjusted effectively, video play back and indications of recording status. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 20...
- Page 21 Open the installer file shown above and follow the setup wizards to complete installation. Once the software is installed and shortcut icon shown above is create on the desktop. Open this software. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au...
- Page 22 Right click on the line to set starting and end point of the clip. Then right click in between the 2 points to back up the clip as AVI format. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au...
-
Page 23: Batteries - Care, Safe Handling And Charging
Running the HRCX at low voltage for prolonged periods may degrade the battery’s integrity and reduce the HRCX’s transmitter power and will affect the reliability of the system. DO only use the battery supplied. If replacement batteries are required, please contact Arrowes for the correct battery. - Page 24 These lithium batteries should be recycled. Look for companies who will buy them or your local battery recycling centre for disposal options. Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 24...
-
Page 25: Maintenance Of The Estop
Arrowes Roading Safety | 17 Bailey Court Brendale Q 4500 | P: (07) 3881 3302 | www.arrowes.com.au Page | 25... -
Page 26: Repairs & Servicing
Auto ™ Operations & Service Manual Repairs & Servicing All repairs and servicing of the eSTOP™ shall be performed by Arrowes Roading Safety or its authorised service center. Any services/repairs/modification or use of parts not approved by Arrowes Roading Safety voids any warranty and may affect the safe performance of the eSTOP™.
