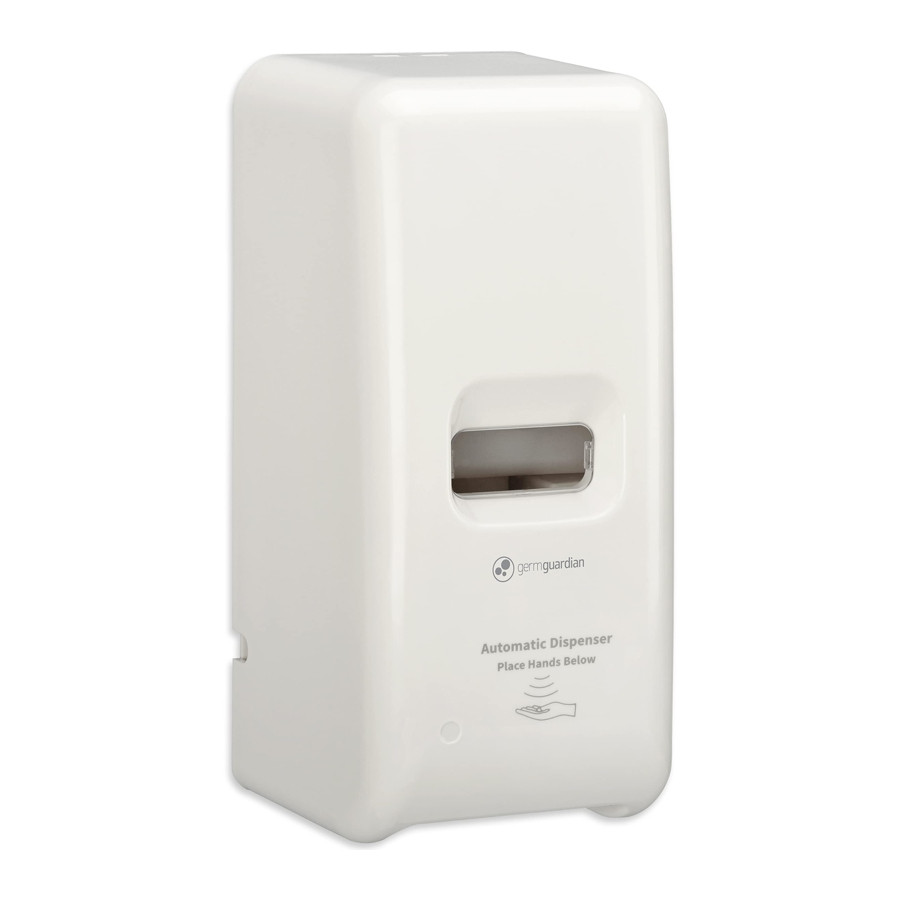

Guardian SD495 - PureGuardian 1000ml Automatic Hands Free Soap and Sanitizer Wall Mounted Dispenser Manual

PRODUCT SPECIFICATIONS AND PARTS

PRODUCT SPECIFICATIONS AND PARTS - PART 1
PRODUCT SPECIFICATIONS AND PARTS - PART 2

Dispenser Installation

The automatic soap dispenser must be installed at least 8" away from other furniture.

  1. Insert the anti-theft key in the keyhole at the top of the dispenser, grip the top of the back of the dispenser while holding the top of the cover by hand, and open it gently downward. The cover will be on the bottom of the dispenser (see figure 1).
    Dispenser Installation - Step 1
  2. Remove the liner refill bottle and pump head by sliding it out. Remove the battery compartment by pressing the two tabs above the compartment and slide the whole assembly upward to release (see figure 2).
    Dispenser Installation - Step 2
  3. There are 2 options for installing wall anchors (see figure 3). After choosing wall anchor installation, place the dispenser on the wall where you want to install dispenser.
  4. Mark the wall anchor locations and drill a hole for each wall anchor (4-6 mm). Insert the anchor into the wall. Align the dispenser (check to make sure it is facing the right direction and open cover is at the bottom of the dispenser) and secure with screws (see figure 4).
    Dispenser Installation - Step 3
  5. Replace the liner refill bottle, pump head and battery compartment.

Battery Installation

Open the soap dispenser. The battery holder is on the right side facing the soap dispenser. Note the arrow on the cover and slide the cover forward to remove. Insert four (4) AA batteries as shown (see figure 5). Return the battery cover by sliding it back over the side of the compartment.
Battery Installation

Adding Soap or Sanitizer

  1. Remove the soap dispenser refill bottle and pump from the dispenser.
  2. Select the proper pump for the type of soap or sanitizer being added. See chart below:
    Dispenser types
    Note: if switching the type of soap/sanitizer, be sure the refill bottle is completely empty.
  3. First install selected pump by sliding it into refill bottle opening at the bottom of the bottle. It will be a snug fit (see figure 6).
  4. After the correct pump is installed, open the cap of the refill bottle and pour in the soap or sanitizer. The bottle will hold up to 1000ml. Return and secure cap.
  5. Use the window to see when it's time to refill the liquid in the bottle.

Note: Clean the nozzle periodically to remove soap or sanitizer build up, especially if a gel solution is used. This will prevent the nozzle head from blocked and not working.

Installation of the Refill Bottle and Pump

  1. Return the refill bottle to the dispenser. The refill bottle markings should face outward to be lined up correctly.
  2. Gently slide the refill bottle and pump head into the dispenser, it will sit on top of the battery compartment. Make sure the push rod engages in the empty position 1 on top of the discharge nozzle of the pump (see figure 7).
  3. You can select a single or double dispensing cycle. To select single or double dispensing cycle you press the black pumping cycle button (see figure 7).
    Tip: A double dispensing may be preferred with a thick gel or foam soap.
    Light will flash 3 times for single cycle dispensing.
    Light will flash twice rapidly 3 times for double cycle dispensing.
  4. Close and lock dispenser cover.

Product Usage

  1. The indicator light on the front of the dispenser will be green when it's ready to use.
    Indicator Light
  2. Place hands under the dispenser to activate the infrared sensor.
  3. The light turns red when the batteries are low or the sensor is still activated by a hand or object, even though the cycle is complete.

TROUBLE SHOOTING GUIDE

PROBLEM SOLUTION

Unit won't power on

Make sure batteries are inserted properly. Replace with new batteries.

Too much/too little soap is being dispensed

Adjust the liquid volume (see filling instructions).

No liquid is being dispensed

Make sure batteries are working properly.

Confirm dispenser is connected and in the liquid.

Refill soap.

Remove any soap build up from pump.

Unit turns off

Make sure batteries are working properly.

Indicator light is Red

Batteries are low.

The unit sensor is still activated by a hand or object, even though the cycle is complete. Remove hand/object.

WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

warningThis product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

  • Always use the designated spout for liquid, foam or gel soaps/sanitizers.
  • Use caution when using hand sanitizers that contain flammable ingredients. Read and follow soap/sanitizer manufacturer instructions before use.
  • For normal "automatic dispensing," do not mix water with liquid soap, sanitizer or lotion.
  • Do not rinse, submerge, or allow liquid to enter the battery compartment.
  • Do not immerse the unit in water to avoid the malfunction of the inner electrical parts of the unit.
  • Do not expose the unit directly to strong sunlight otherwise it will cause the malfunction of the infrared sensor.
  • Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  • If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped in water, call Customer Service.
  • Remove batteries before any routine cleaning or maintenance.
  • Leaks from battery cells can occur under extreme conditions. If the liquid gets on the skin
  1. wash quickly with soap and water or
  2. neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.
  • Use only 4 AA batteries (4).


Cancer or Reproductive Harm.
For more information go to www.P65Warnings.ca.gov.

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC
