Summary of Contents for SIAP+MICROS t011d TBAR

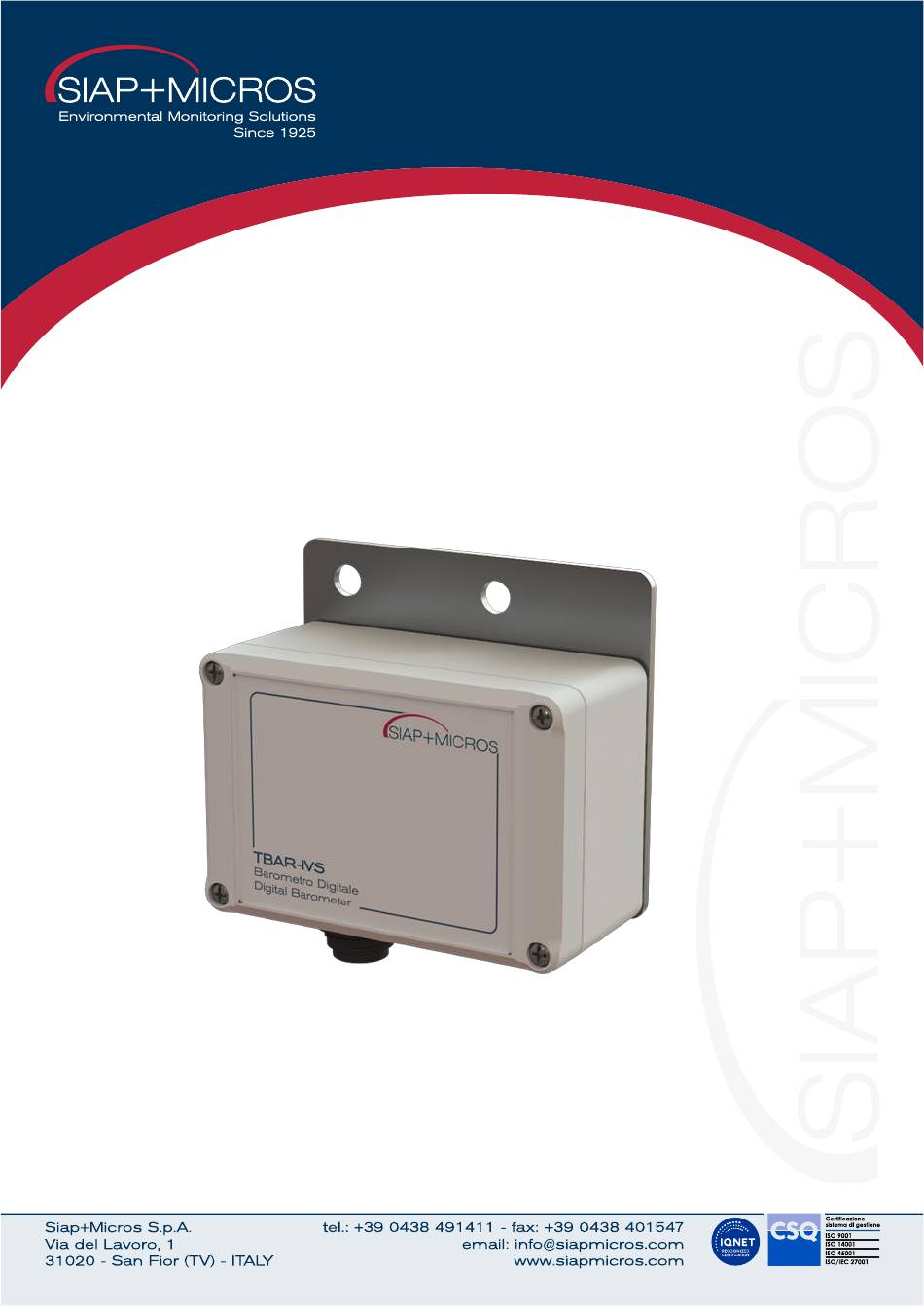

- Page 1 TBAR Digital Barometer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t011-di TBAR.docx Summary Introduction ..............................3 Technical specifications ..........................4 Installallation and maintenance ......................... 5 Installation ............................5 Maintenance ............................5 Electric connection ............................. 6 Connector output ..........................6 Connection cable ..........................6 Data readinding in serial (RS485 Modbus) ..................6 4.3.1 RS485 Modbus mode ........................ -
Page 3: Introduction
User manual and maintenance t011-di TBAR.docx 1 Introduction TBAR-IVS is a sensor for the measurement of atmospheric pressure which can be used for the most common meteorological applications, thanks to its good perfomance in terms of accuracy and sensitivity. TBAR-IVS is equipped with a piezoresistive electronic transducer with linear output. -
Page 4: Technical Specifications
User manual and maintenance t011-di TBAR.docx 2 Technical specifications Measurement performance Measurement range 700 ÷ 1100 Accuracy (RS485-ModBus) 0.4 (-15 ÷50°C) Accuracy (I/V output) 0.9 (-15 ÷50°C) Resolution Operating conditions Temperature -30 ÷ +60 °C Humidity 0 ÷ 100 RH% Outputs 4 ÷... -
Page 5: Installallation And Maintenance
The sensor is provided with a fixing bracket with 2 holes with a 52mm center distance. As highlighted in the image below, the sensor can be fixed without distinction in any position of the Siap+Micros standard support bracket using 2 bolts. -
Page 6: Electric Connection
User manual and maintenance t011-di TBAR.docx 4 Electric connection 4.1 Connector output Signal A-RS485 B-RS485 +0÷2 Vdc +4÷20 mA -4÷20 mA -0÷2 Vdc 4.2 Connection cable The connection cables supplied with the sensors are made with circular connectors with housing, 8 x 22 mmq cable, shielded and ferrules for connection to the data logger terminals. -
Page 7: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 8: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 9: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 26/10/2023 Vers.: 1.0...
