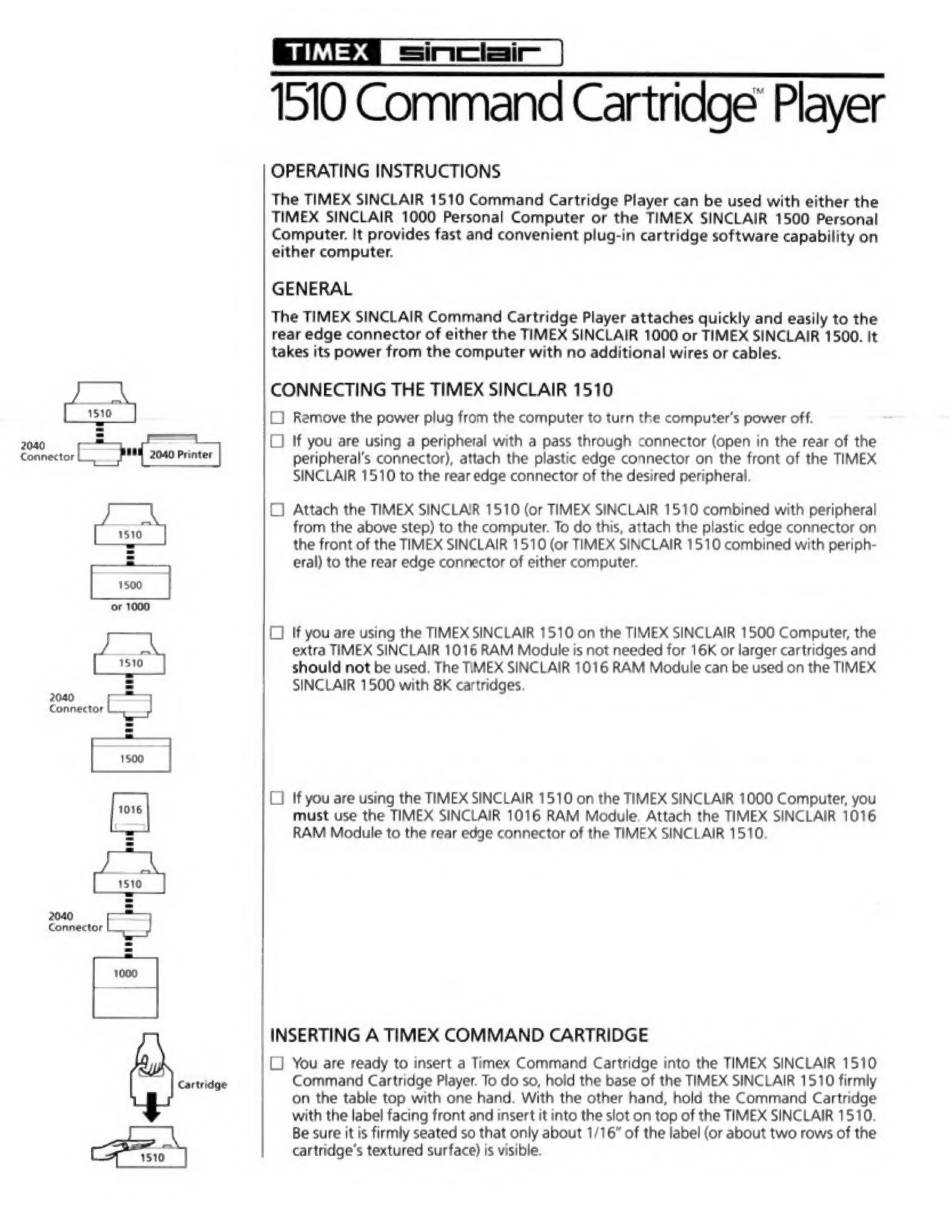

Timex Sinclair 1510 Operating Instructions

TIMEX
1510 Command Cartridge" Player
1500
or 1000
OPERATING INSTRUCTIONS
GENERAL
CONNECTING THE TIMEX SINCLAIR 1510
□ Remove the power plug from the computer to turn the computer's power off.
□ If you are using a peripheial with a pass through connector (open in the rear of the
peripheral's connector), attach the plastic edge connector on the front of the TIMEX
SINCLAIR 1510 to the rear edge connector of the desired peripheral.
□ Attach the TIMEX SINCLAIR 1510 (or TIMEX SINCLAIR 1510 combined with peripheral
from the above step) to the computer. To do this, attach the plastic edge connector on
the front of the TIMEX SINCLAIR 1 51 0 (or TIMEX SINCLAIR 1 510 combined with periph¬
eral) to the rear edge connector of either computer.
□ If you are using the TIMEX SINCLAIR 1510 on the TIMEX SINCLAIR 1500 Computer, the
extra TIMEX SINCLAIR 1016 RAM Module is not needed for 16K or larger cartridges and
should not be used TheT.MEX SINCLAIR 1016 RAM Module can be used on the TIMEX
SINCLAIR 1 500 with 8K cartridges
□ If you are using the TIMEX SINCLAIR 1510 on the TIMEX SINCLAIR 1000 Computer, you
must use the TIMEX SINCLAIR 1016 RAM Module Attach the TIMEX SINCLAIR 1016
RAM Module to the rear edge connector of the TIMEX SINCLAIR 1510
INSERTING A TIMEX COMMAND CARTRIDGE
□ You are ready to insert a Timex Command Cartridge into the TIMEX SINCLAIR 1510
Command Cartridge Player To do so, hold the base of the TIMEX SINCLAIR 1510 firmly
on the table top with one hand With the other hand, hold the Command Cartridge
with the label facing front and insert it into the slot on top of the TIMEX SINCLAIR 1510.
Be sure it is firmly seated so that only about 1 /1 6" of the label (or about two rows of the
cartridge's textured surface) is visible.
