Studio 700 Assembly

Place all the parts out on a flat surface as shown in Figure 1. Depending on the

configuration you have chosen, you may have more or less Skins (and associated M4

bolts).

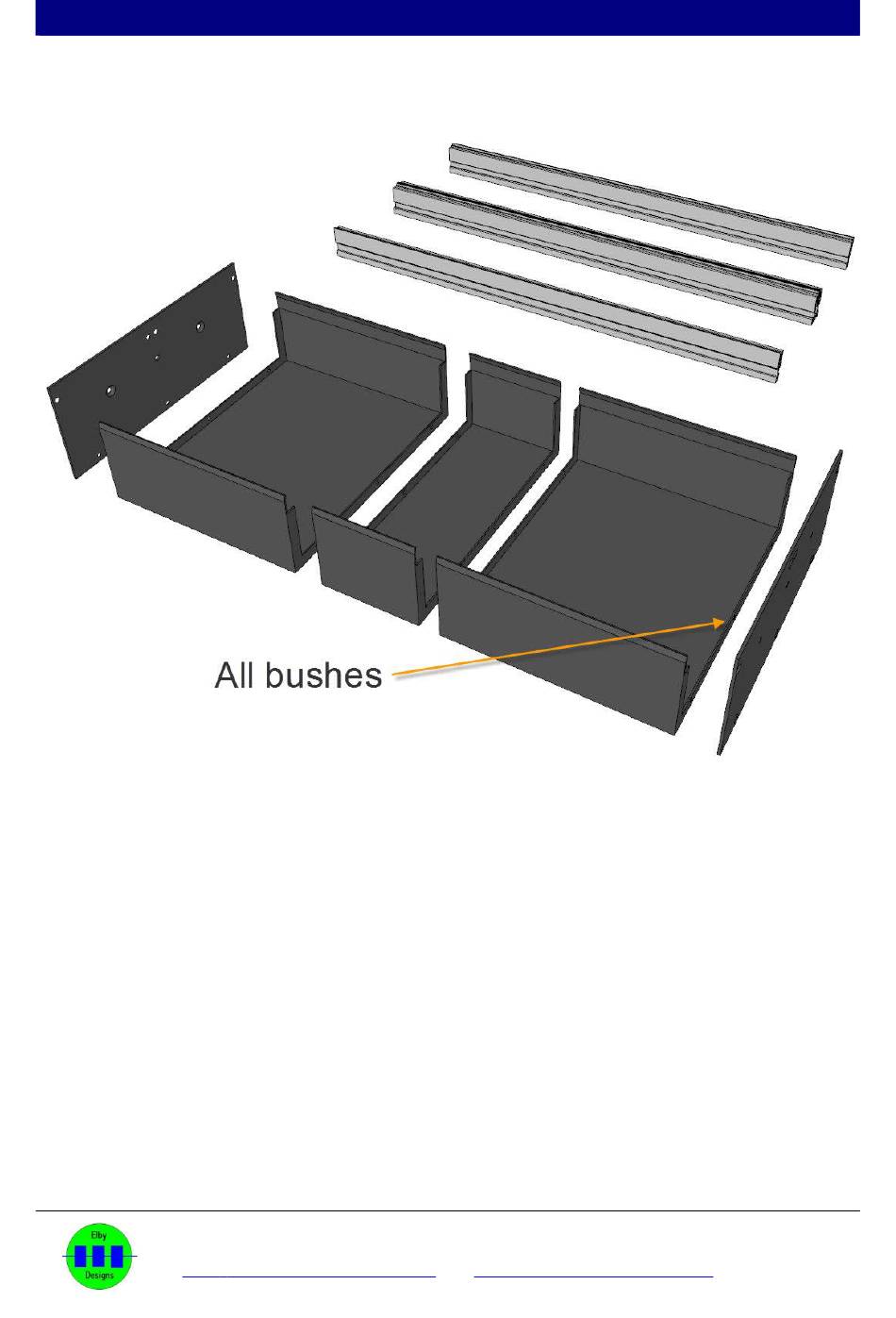

Figure 1 – Studio 700 parts laid out

The Skins should all be orientated in the same direction with the power socket cutouts at

the back.
