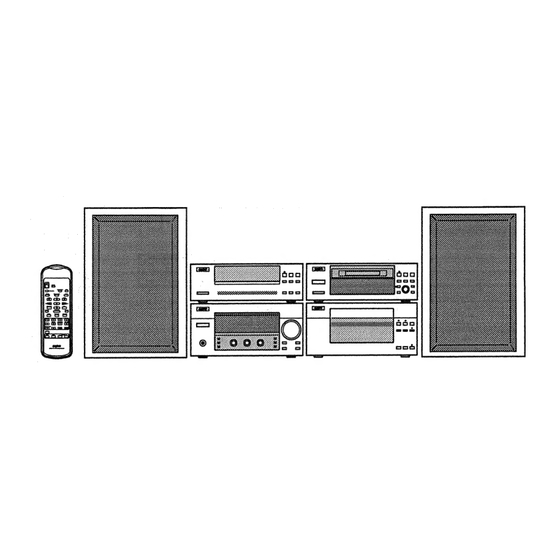

Sanyo DC-007C Service Manual

Service Manual
Separate Mini Component
System
FILE NO.
DC-007C wk)
(XE)
Specifications
TUNER SECTION
Reception frequency ........ FM : 87.5 - 108 MHz
AM : 522 - 1,611 kHz
Output power ......... eee 50W x 2 (1kHz at 6 ohm,
10% distortion)
INDUS sai veosccetassensd tviccinrvene VIDEO (AUDIO) : 500 mV/50k ohms
OUIDUNS criaecstinaetpnacrs SPEAKERS : 6 ohms
PHONES : 8 - 32 ohms
SUB WOOFER OUT : 10k ohms
Power requirements ......... AC 230V, 50 Hz
Power comsumption ........ 130W
0.8W (Ecology On standby mode)
16W (Ecology Off standby mode)
DIMENSIONS ...........ceeeeeees 270 (W) x 122 (H) x 287 (D) mm
WIG siccseteoceceseorsssscasecceas 5.3 kg
CD PLAYER SECTION
TY DO! cceovetetiecasadianivwits Changer, 3-disc
Channels ............sssssseereeee 2-channel stereo
Sampling frequency ......... 44.1 kHz
PICK-UP sinustivcecaatisvatnieabions Optical 3-beam semiconductor laser
Laser Output 0.00... eeeeeeee 0.6 mW (Continuous wave max.)
Wave length ......... seen 790 nm
Frequency response ........ 20 Hz to 20 kHz
Wow/flutter ........ eeeeees Below measurable limits
QUTDUE 322: Seceteieciclerepetas tras OPTICAL DIGITAL OUT : Optical
PRODUCT CODE No.
129 569 00 (UK)
129 569 01 (XE)
QU BUL desc cre siwiicansectsesssahates OPTICAL DIGITAL OUT : Optical
Power SUppIy .......sceseeeees Supplied from the Tuner/Amplifier
Dimensions ............::cseeee 270 (W) x 87 (H) x 276 (D) mm
WOIQN sccescitiarccticiestserinns 2.3 kg
WIRESS REMOTE CONTROL
Power requirements ......... 2 "R6 (HP7)" batteries
DIMENSIONS ..............seeeeeee Approx. 66(W) x 200(H) x 32(D)mm
WIQN seceslatasisssatieaeandents Approx. 115g (without batteries)
SPEAKER SYSTEM
TV DO aii sccsies vessavantensaneiees 3 way bass reflex
Built-in magnetic stray field
compensation .
UNE USOT s.sssnsscastsvennsdessaas Woofer : 15 cm cone type
Mid range : 8 cm cone type
Tweeter : 3.5 cm balance driver
Maximum power-handling
CODGCMY scoscsiiesscsisecougananze 100W (peak)
Nominal impedance ........ 6 ohms
DIMENSIONS .........-.ccceeeees 230 (W) x 343 (H) x 253 (D) mm
WEIQN sscsecesivasiisctvseesieentss 4.7 kg (per speaker)
Specifications subject to change without notice.
'This service manual consists of "JCX-007" (Tuner/Amplifier UK : 129 561 00, XE: 129 561 01),,
"DAD-CP-007" (CD Changer UK : 137 087 00, XE : 137 087 01), "RB-007" (Rmote control),
is 007L" (Speaker system : 165 000 00) and "SX-007R" (Speaker system : 165 001 00).
REFERENCE No. SM5810033
SANYO
SYSTEM CONNECTIONS
When using only the system DC-007C (CD changer and Tuner/Amplifier)
CD changer The flat connection lead is
provided as shown.
Do not remove the fiei and
Tuner/Amplifier protective tape:
To connect, push the middle of
Before connecting,
the plug and insert it until it clicks.
remove the cap on this
socket. p
Digital equipment
Video equipmen/DVD_ |.
player :
MD deck
(Optical cable,
not supplied)
plug, turn it over and reinsert it.
Notes on the flat connection lead
When using the system DC-007C (CD
changer and Tuner/Amplifier) and
optional Tape deck and/or MD deck,
remove the fixer and protective tape
before connecting.
- Donot remove the tape on the plug
that is not used.
Note:
- Donotconnect the mains lead to
an AC outlet until all connections
have been made.
- The system is not completely dis-
connected from the mains when
the &/ON button is set to the ©
position.
- Topreventa noise interference from
the mains, the core clamp is at-
tached to the mains lead. Do not
remove it.
To disconnect, while pressing
both latches, remove the plug.
If you have difficulty inserting the
CD changer
=| (Flat connection lead)
(Optical cable, supplied
with the MD deck)
(Audio leads, not
supplied)
(Audio lead not
supplied)
Tape deck
Tuner/Amplifier
To an AC outlet
