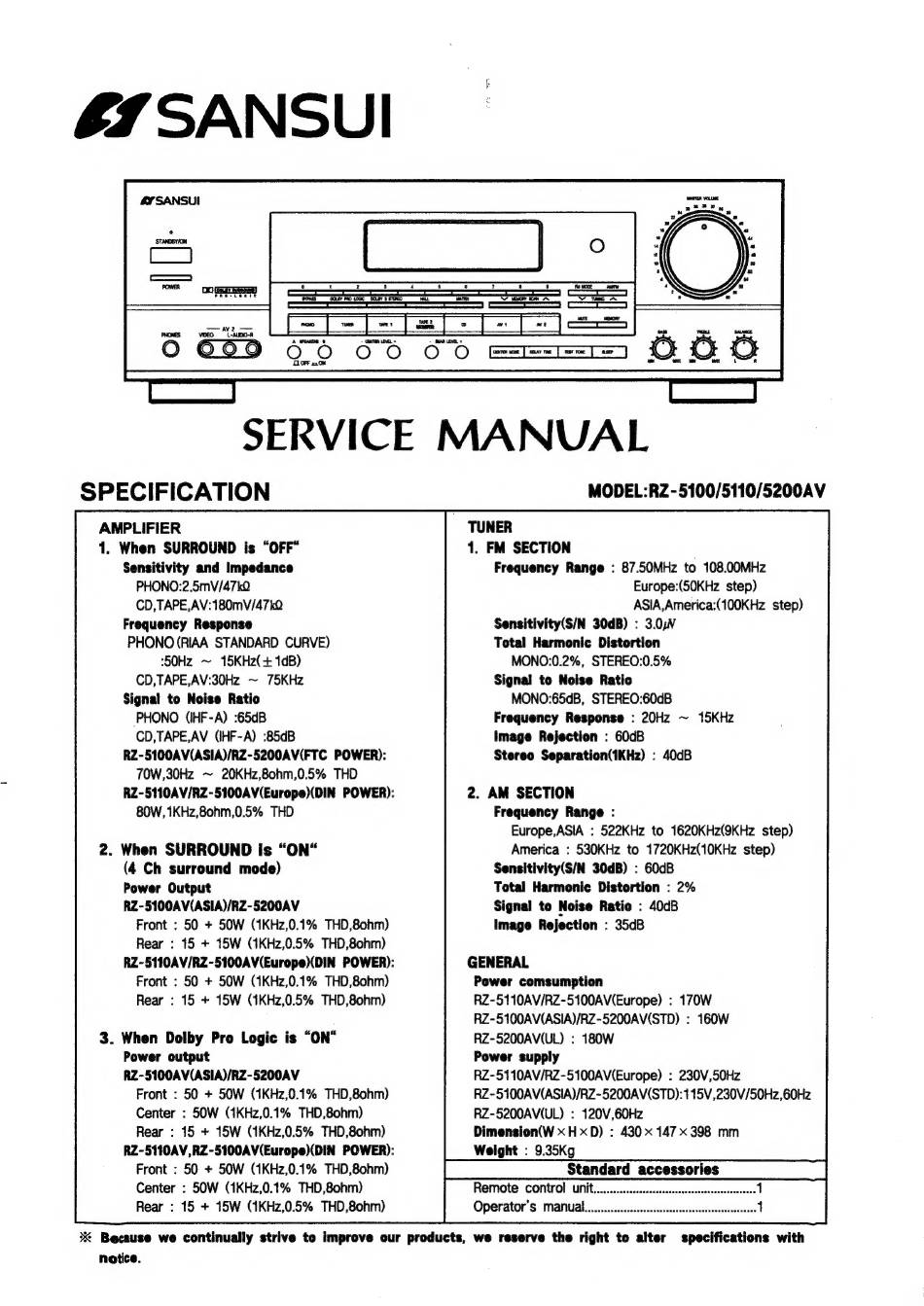

64 SANSUI
SERVICE MANUAL
SPECIFICATION
AMPLIFIER
1. When SURROUND
is "OFF"
Sensitivity and Impedance
PHONO:2.5mV/47kO
CD, TAPE,AV:180mV/47k0
Frequency Response
PHONO (RIAA STANDARD CURVE)
:50Hz ~ 15KHz(+ 1dB)
CD,TAPE,AV:30Hz ~ 75KHz
Signal to Noise Ratio
PHONO (IHF-A) :65dB
CD,TAPE,AV (IHF-A) :85dB
RZ-5100AV(ASIA)/RZ-5200AV(FTC POWER):
70W,30Hz ~ 20KHz,80hm,0.5% THD
RZ-5110AV/RZ-5100AV(Europe)(DIN POWER):
BOW, 1KHz,80hm,0.5% THD
2. When SURROUND Is "ON"
(4 Ch surround mode)
Power Output
RZ-5100AV(ASIA)/RZ-5200AV
Front : 50 + 50W (1KHz,0.1% THD,80hm)
Rear : 15 + 15W (1KHz,0.5% THD,80hm)
MODEL:RZ-5100/5110/5200AV
'TUNER
1. FM SECTION
Frequency Range : 87.50MHz to 108.00MHz
Europe:(50KHz step)
ASIA,America:(100KHz step)
Sensitivity(S/N 30dB) : 3.0,V
Total Harmonic Distortion
MONO:0.2%, STEREO:0.5%
Signal to Noise Ratio
MONO:65dB, STEREO:60dB
Frequency Response : 20Hz ~ 15KHz
Image Rejection : 60dB
Stereo Separation(1KHz) : 40dB
2. AM SECTION
Frequency Range :
Europe,ASIA : 522KHz to 1620KHz(9KHz step)
America : 530KHz to 1720KHz(10KHz step)
Sensitivity(S/N 30dB) : 60dB
Total Harmonic Distortion : 2%
Signal to Noise Ratio : 40dB
Image Rejection : 35dB
RZ-5110AV/RZ-5100AV(Europe)(DIN POWER):
GENERAL
Front : 50 + 50W (1KHz,0.1% THD,8ohm)
Power comsumption
Rear : 15 + 15W (1KHz,0.5% THD,8ohm)
RZ-5110AV/RZ-5100AV(Europe) : 170W
RZ-5100AV(ASIA)/RZ-5200AV(STD) : 160W
RZ-5200AV(UL) : 180W
3. When Dolby Pro Logic is "ON"
Power output
Power supply
RZ-5100AV(ASIA)/RZ-5200AV
Front : 50 + 50W (1KHz,0.1% THD,80hm)
Center : 50W (1KHz,0.1% THD,80hm)
RZ-5200AV(UL) : 120V,60Hz
Rear : 15 + 15W (1KHz,0.5% THD,80hm)
Dimension(W
x H xD) : 430 x 147 x 398 mm
RZ-5110AV,RZ-5100AV(Europe)(DIN
POWER):
Welght : 9.35Kg
Front : 50 + SOW (1KHz,0.1% THD,8ohm)
Center : 50W (1KHz,0.1% THD,80hm)
Remote control unit
Rear : 15 + 15W (1KHz,0.5% THD,8o0hm)
Operator's manual
RZ-5110AV/RZ-5100AV(Europe) : 230V,50Hz
RZ-5100AV(ASIA)/RZ-5200AV(STD):115V,230V/50Hz,60Hz
% Because we continually strive to improve our products, we reserve the right to alter
specifications with
notice.
Advertisement
Table of Contents
Need help?

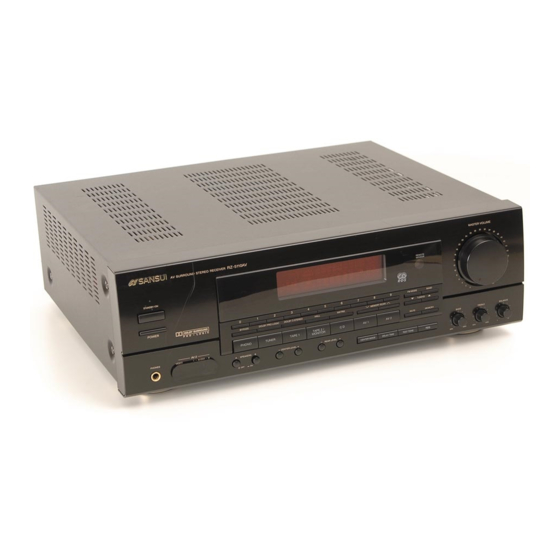

Do you have a question about the RZ-5100AV and is the answer not in the manual?
Questions and answers
I have a problem with my SANSU RZ-5100AV. It says protector so what can I fix it
To fix the protector issue on a Sansui RZ-5100AV, check and repair the following:
1. DC Protect & Protect Control Circuit: Inspect components such as R21 (1K resistor) related to the protection circuit.
2. Center Amplifier Section: Look for faulty components in the center amplifier, which is rated for 50W.
3. Resistors: Verify resistors like R15 and R16 (5.6K) and others (e.g., 1K resistors) for damage or incorrect values.
4. Short Circuits: Ensure there are no metal objects or shorts between the PCB and mechanical parts.
5. Internal Wiring: Use only specified wiring and insulating materials to avoid faults.
Proper static precautions should be taken when working around the micro-computer and CD signal processing ICs.
