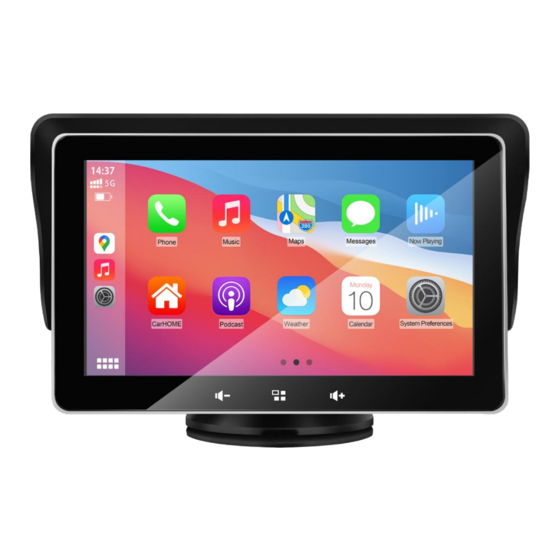

- Page 1 Wireless Touch Screen Carplay UR71C User Manual Please read this manual thoroughly before operating the device, and keep it for future reference.
-
Page 2: Table Of Contents
Contents 1. Introduction......................3 2. Packing List ......................4 3. Product Specification....................5 4. Installation......................6-7 5. Product Structure....................8 6. Operation & Settings..................9-13 7. CONNECTION METHOD................14-20 Part One: iOS Device - iPhone..................14-19 Ⅰ. "CarPlay" for synchronization......................14-16 Ⅱ. "Airplay" for Mirror Link.........................17-19 Part Two: Android Phone....................19-20 Ⅰ. -
Page 3: Introduction
Introduction THANK YOU for purchasing URVOLAX Wireless Touch Screen Carplay! This manual will help you install and operate it properly. This Carplay works as an alternative of your smart phone in car, connecting your Apple or Android Auto Phone without wire. -
Page 4: Packing List
Packing List 7 Inch Screen Flat base for Screen Sunshade Screen Bracket screen bracket on dashboard Power Cable AUX Cable User Manual Email: service07@urvolax.cn... -
Page 5: Product Specification
AUX in Yes(one) Operating Temperature -20℃~70 ℃ Storage Temperature -40~85 ℃ System Startup Time Approx 10 seconds SD Card Storage 8GB - 512GB (not included) Support All models including Jeep,Truck, Motorhome, Models Available Trailer (12-24V) Power Supply DC 12V-24V 2.5A Email: service07@urvolax.cn... -
Page 6: Installation
Installation ❶ STEP 1. Install the sunshade on screen ❷ STEP 2. Install the bracket on the back of screen ❸ The bracket can be extended for convenient viewing. STEP 3. Use the suction cup to suck the screen on windshield Email: service07@urvolax.cn... - Page 7 Installation ❹ Step 4. Only for placing screen on dashboard: Stick the flat base to the bracket suction cup. ■ TWO MOUNTING WAY ①Suck on windshield by suction ②Place on dashboard by suction cup with flat base Email: service07@urvolax.cn...
-
Page 8: Product Structure
Product Structure RESET ① ② ③ ④ ⑤ ①Audio OUT (Connect to car speaker with Aux Cable) ②AV IN (For Optional Backup Camera) ③USB Port ④TF Card Slot (8GB -512GB) ⑤Power Plug (12-24V 2.5A) Email: service07@urvolax.cn... -
Page 9: Operation & Settings
⑤FM transmit: Adjust the 71C FM to the same frequency as the car, the sound can be played through the car speaker directly. ⑥USB: For playing music/video/pictures from USB flash drive, or connecting mobile phone via compatible USB cable. ⑦Micro SD Card: For playing music/video/pictures from memory card. Email: service07@urvolax.cn... - Page 10 ⑪ ⑫ ⑧BT Music: Play music from a mobile phone through Bluetooth. ⑨Phone: Enter the Bluetooth call interface. ⑩Settings: Set/Adjust other functions. ⑪EQ: Select/Control the car speaker (Only work with AUX cable connected) ⑫Wallpaper: Change the background image. Email: service07@urvolax.cn...
- Page 11 Wallpaper, Language, Date/Time, Version Information Smart phone > Smart phone > Android Device > Android Auto To Connect and Synchronize Android Phone to 71C device Smart phone > Android Device > Auto Link To Mirror Link Android Phone to 71C device Email: service07@urvolax.cn...
- Page 12 Android Phone Mirror Link IMPORTANT REMINDER: Please make sure to select the "Smart Phone" options correctly for connection. Specific choices please refer to PAGE 14. Please do not hesitate to contact us if you have any question during operation: service07@urvolax.cn Email: service07@urvolax.cn...
- Page 13 Backup Camera Display (with Backup Camera connected) Sound effect > Sound from Car Speaker (with AUX cable connected) Reversing setting With backup camera connected Factory Only need to set when there is an issue, feel free to contact us for solution. Email: service07@urvolax.cn...
-
Page 14: Connection Method
Ⅰ. "CarPlay" for synchronization OPTION 1: WIRELESS Connection 1. Settings→Smart phone→Apple device→Carplay 2. Settings→Smart phone→Wireless connection mode→Carplay/Airplay and Android Auto 3. Bluetooth ❷ ❶ iPhone searches Click “Pair” for Bluetooth “CarBt_c7748b” for Pair ❸ ❹ Click “Allow” Connection succeeded Email: service07@urvolax.cn... - Page 15 Turn ON the WIFI setting of 71C device and connect to iPhone ❶ ❷ iPhone searches and Enter the password choose the WiFi “88888888”,click “Join” “CarWIFI_c7748b” to connect ❸ Connection succeeded The name of Bluetooth and Wifi will vary based on different FW versions. Email: service07@urvolax.cn...
- Page 16 Following and more features can be synchronized between iPhone and 71C. If more applications are needed, please can search in iPhone APP store for "Carplay" ◘ Siri ◘ SMS Messages ◘ iTunes ◘ Apple Maps ◘ Hands-free Calls Email: service07@urvolax.cn...
-
Page 17: Ⅱ. "Airplay" For Mirror Link
OPTION 1: WIRELESS Connection 1. Settings→Smart phone→Apple device→iOSMirror 2. Settings→Smart phone→Wireless connection mode→Carplay/Airplay and Android Auto 3. Turn OFF Bluetooth 4. Turn ON Wifi and connect, password: 88888888 5. Select "Screen Mirroring" on iPhone and mirror linked successfully. Email: service07@urvolax.cn... - Page 18 CONNECTION METHOD Please disconnect the "Carplay" before using the "Airplay", to make sure Airplay can work properly. Email: service07@urvolax.cn...
-
Page 19: Part Two: Android Phone
1. Settings→Smart phone→Android device→Android Auto 2. Settings→Smart phone→Wireless connection mode→Carplay/Airplay and Android Auto 3. Install "Android Auto" from APP or Google Store on Android Phone 4. Connect 71C BLUETOOTH to Android phone 5. Connect 71C WIFI to Android phone Email: service07@urvolax.cn... -
Page 20: Ⅱ. "Autolink" For Mirror Link
3. Install "Autolink PRO" by scanning below QR CODE or from Google Store 4. Open "Autolink PRO" and search 71C WIFI for connection WIRED CONNECTION: Select corresponding "Smart phone" menu options and Connect Android phone to 71C device by USB cable directly. Email: service07@urvolax.cn... -
Page 21: Sd Card
SD Card Please insert memory card into the 71C TF card slot. Support playing audio and video on the screen. Bluetooth Music Email: service07@urvolax.cn... -
Page 22: Bluetooth Call
Bluetooth Call Independent Built-in Speaker 71C is equipped with a built-in speaker independently. It can play music and video via memory card or USB flash drive without connecting other speakers. Email: service07@urvolax.cn... -
Page 23: Sound Transmission From 71C To Car Speaker
Sound Transmission from 71C to Car Speaker OPTION 1: WIRED - AUX Cable Connect the AUX OUT of 71C to the AUX IN of your car audio system via the included AUX cable, the sound can be played through the car speaker directly. Email: service07@urvolax.cn... -
Page 24: Option 2: Wireless - Fm Transmit
Adjust the 71C FM to the SAME frequency as the car, the sound can be played through the car speaker directly. If you would like to transmit sound by AUX Cable, please switch the FM transmit function from "ON" to "OFF" on the screen to avoid sound confliction. Email: service07@urvolax.cn... -
Page 25: Trouble Shooting
①WIRELESS connect the 71C to car speaker via FM - Page 24. ②Contact our customer support to get an adapter for your car speaker. No sound from 71C Carplay after connecting with mobile phone Make sure the FM has been turned OFF. Email: service07@urvolax.cn... - Page 26 This 71C device can not memorize the setting as it doesn't have built-in battery, but the date and time will be synchronized once connect to mobile phone Get an error message “Please Wait Touch Ready”while mirror link to Android phone Disconnect the Bluetooth & WIFI and connect again. Email: service07@urvolax.cn...
-
Page 27: Warranty Activate&Customer Support Contacts
Please scan the QR code above to activate the 1-year warranty within 2 WEEKS upon product receipt. Should you have any general or technical questions about this product, please feel free to contact us as following: CUSTOMER SUPPORT Email: service07@urvolax.cn Company TEL:(0086)769 2198 6525 Email: service07@urvolax.cn...
