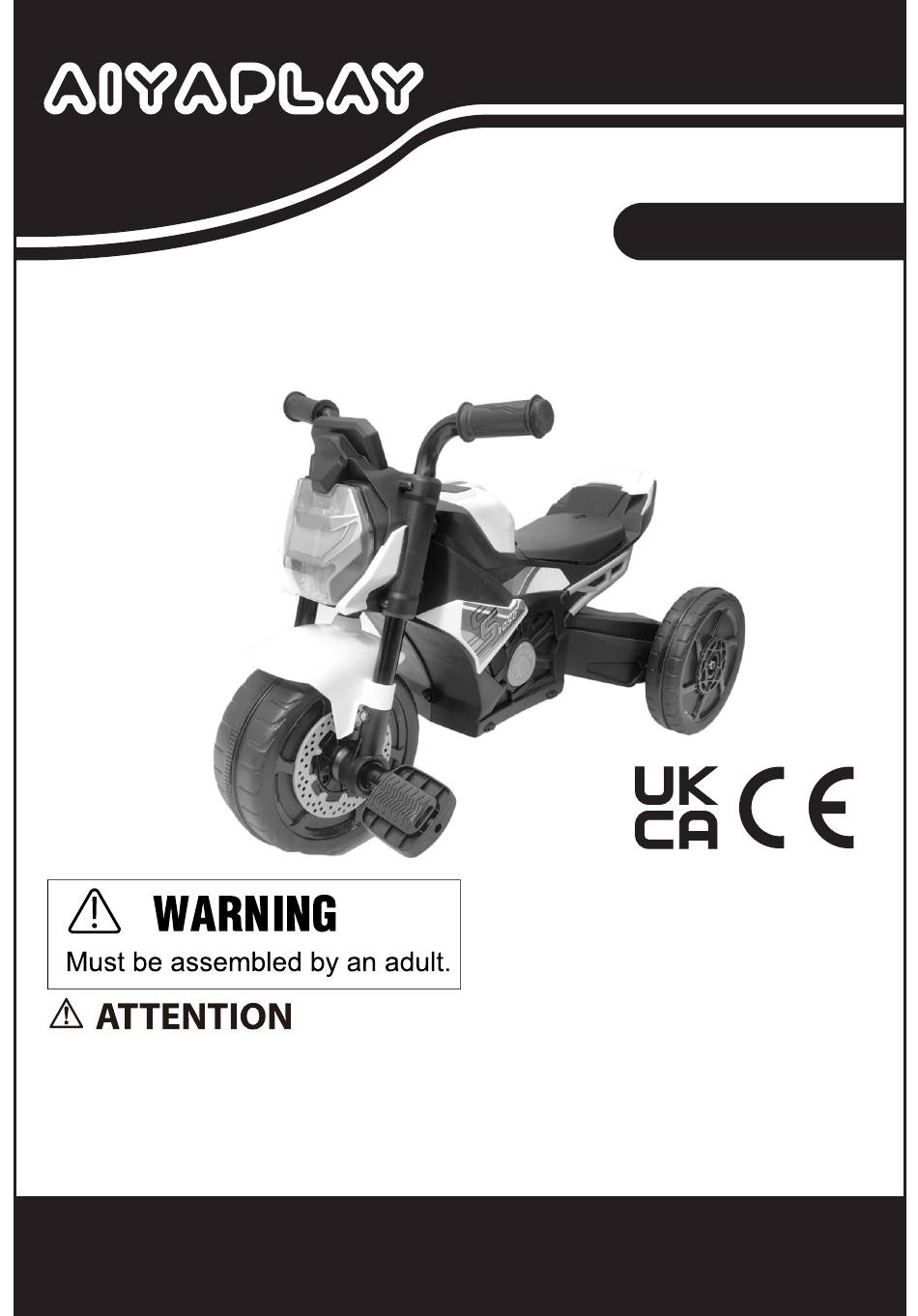

CHILDREN'S TRICYCLE
This manual contains important safety, performance and maintenance
information. Read the manual thoroughly before allowing your child to ride this
product.
Failure to read the user manual can cause property damage or injury to
persons. Keep this manual for future reference.
INSTRUCTION MANUAL
IN230800019V01_UK
370-275V00
• Suitable for ages 18-36 months.
• Maximum user weight: 25kg.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aiyaplay 370-275V00
Summary of Contents for Aiyaplay 370-275V00
- Page 1 IN230800019V01_UK 370-275V00 CHILDREN'S TRICYCLE • Suitable for ages 18-36 months. • Maximum user weight: 25kg. This manual contains important safety, performance and maintenance information. Read the manual thoroughly before allowing your child to ride this product. Failure to read the user manual can cause property damage or injury to persons.
-
Page 2: About Your New Product
About your new product 18 - 36 months 25k g 74 x 43 x 48 cm Parts dia g ram and p arts list... -
Page 3: Parts Diagram And Parts List
Parts diagram and parts list M8 * 120 M5 * 30 Note: All screws, nuts and plastic parts are preinstalled in their respective positions. Before installing the product, follow the steps to remove them. Screwdriver wrench Assembly tools required: (not included) SAFETY WARNING: PREVENT SERIOUS INJURY AND DEATH:... - Page 4 Install mudguard, front wheels and rear axle assembly 1. Remove preinstalled screws (C), two machine screws (E) and nut (F). 2. Insert the mudguard into the front fork. 3. Fix the mudguard with screw (C). 4. Insert the front wheel into the front fork. 5.
- Page 5 Install rear wheels and handlebars 1. Attach a washer (D) to the rear axle. 2. Attach the rear wheel to the rear axle. 3. Attach a washer (D) to the rear axle. 4. Tighten a lock nut (B) to the end of the rear axle with a spanner. DO NOT over-tighten.
-
Page 6: Battery Information
Install foot pedals and batteries 1. Insert the pedal into the front axle - the spring will pop out of the hole. 2. Remove the screw of the cell box and take off the cover. 3. Use three AA 1.5V batteries - ensure they are installed properly. 4. - Page 7 Using your new ride-on There are three modes: Tricycle, walker and balance. Mode 1 - switching from tricycle to balance ride-on: 1. Remove the rear wheel: Press the button on the inside of the rear wheel and pull it back. 2.
- Page 8 Use your new ride-on 1. Foot pedals: Drive the ride-on forward. 2. Music player: A. Song One B. Song Two C. Song Three D. Horn sound Maintainance · Adult responsibility: Before using this ride-on, adults should check its main parts for potential hazards, like loose plugs or screws. If damages are found, the ride-on must not be used until it is fixed.
- Page 9 If you have any questions, please contact our customer care center. Our contact details are below: 0044-800-240-4004 enquiries@mhstar.co.uk IMPORTER ADDRESS: MH STAR UK LTD Unit 27, Perivale Park, Horsenden lane South Perivale, UB6 7RH MADE IN CHINA...
