Summary of Contents for SMERI MINIRADAR S-RD810 SMARTLINE

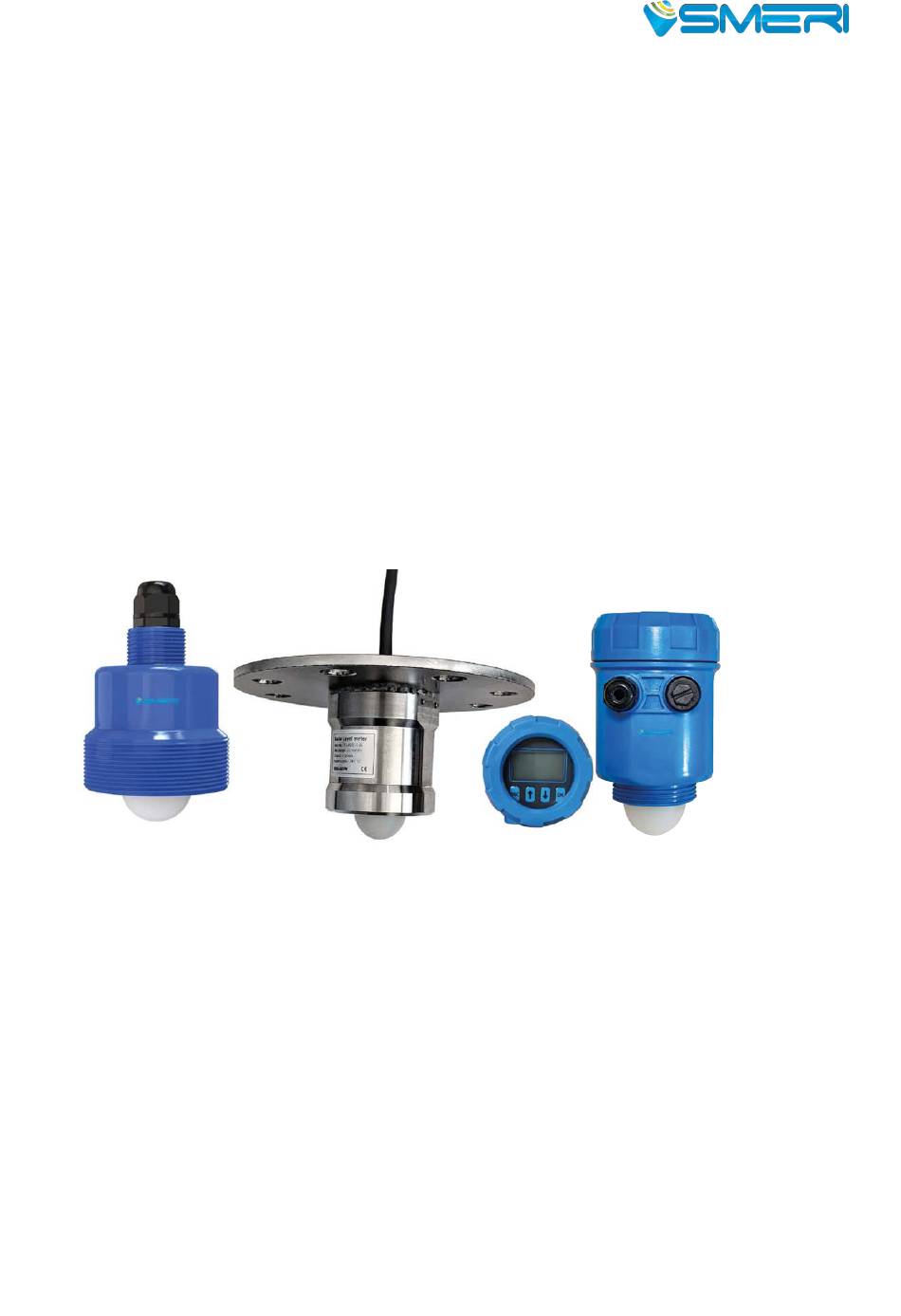

- Page 1 MINIRADAR S-RD810/S-RD812 SMARTLINE 76-81GHz FMCW Non Contact Radar WATER LEVEL SENSORS Operating Manual See also the SERVICE pages on SMERI website: tutorial for wireless programming...
-
Page 2: Product Introduction
MINIRADAR S-RD810/S-RD812 1. Product Introduction： 1.1 Main Feature: S-RD810/S-RD812 product refers to a frequency modulated continuous wave (FMCW) radar product operating at 76-81GHz. It has a high operating frequency and a larger bandwidth, so the measurement accuracy is higher. The maximum range of the product can reach 20m, and the blind zone is within 20 1.2 Technical Parameters Transmit Frequency 76GHz~81GHz... - Page 3 MINIRADAR S-RD810/S-RD812 1.3 Outer Dimensions Unit:mm S-RD810 stainless steel, S-RD810 ABS, threaded connection threaded connection S-RD812 ABS, threaded connection...
-
Page 4: Installation
MINIRADAR S-RD810/S-RD812 2.Installation Two points need to be paid attention to during installation: (1) Ensure that the meter is perpendicular to the water surface (2) Avoid the emission beam irradiating the interference object and generating false echoes. Please check the following points for typical operating conditions. ... - Page 5 MINIRADAR S-RD810/S-RD812 The installation of the instrument should be at least 20cm away from the side wall, and the installation of the underground pipe network should be as close to the center of the water well as possible, otherwise the well wall will easily generate interference signals, which will affect the measurement and judgment, as shown in the figure below.
- Page 6 RS-RD810 performs liquid level measurement tasks according to the settings, which can be modified via Bluetooth and APP on Mobile. App RadarMe on Play Store for Android See also the SERVICE pages on SMERI website: tutorial for wireless programming 4.1 Software Setting...
- Page 7 MINIRADAR S-RD810/S-RD812 4.2 Main interface Click the “Curve” button at the bottom of the screen to enter the echo curve interface, as shown in the figure below:...
- Page 8 MINIRADAR S-RD810/S-RD812 4.3 Echo Curve Interface Click the “Set” button at the bottom of the screen to enter the parameter setting interface, as shown in the figure below.
- Page 9 MINIRADAR S-RD810/S-RD812 4.4 Setting...
- Page 10 MINIRADAR S-RD810/S-RD812 4.4.1 Basic parameters Click the “Basic parameters” on the above interface, it shows below: Set the “Range” according to the working conditions and directly click the number input box behind to modify it. The rest of the parameters are modified in the same way. Click the “...
- Page 11 MINIRADAR S-RD810/S-RD812 The 4mA location and 20mA location must be within the range, and the relationship between the 4mA location/20mA location and the range is shown in the figure below: As shown in the figure, when the liquid level is lower than 4mA Location, the main interface displays the liquids level as 0;...
-
Page 12: Maintenance
Unstable Value mount. Strong Connect to the host to the ground or add a Electromagnetic shield. interference SMERI srl I 20057 Assago (MI) - Via Mario Idiomi, 3/13 Tel +39 02 5398941 - Fax +39 02 5393521 smeri@smeri.com - www.smerri.com...
