User Guide
Smart Installation Tool (CTL-2000)
Doc No. UG01467
Smart Installation Tool (CTL-2000) – User Guide
UG01467 v. 1.01 7 November 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTL-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Casa Systems CTL-2000

  • Page 1 User Guide Smart Installation Tool (CTL-2000) Doc No. UG01467 Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 2 Casa Systems accepts no responsibility for any loss or damage resulting from errors or delays in transmission or reception, or the failure of the Casa Systems CTL-2000 Smart Installation tool to transmit or receive such data.
  • Page 3: Table Of Contents

    Tool operation and storage ..................................27 14.2.1 Cold temperatures ....................................... 27 14.2.2 Direct sunlight and high temperatures ..............................27 14.3 Updating the firmware of the Smart Installation Tool ......................... 28 Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 4 RF General Information ....................................33 16.3.3 Maximum RF Power Table ..................................34 16.3.4 WEEE Regulation ......................................34 16.3.5 Simplified EU Doc ......................................34 16.4 Australia ACMA ......................................34 Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 5: Overview

    Overview Document introduction This document provides you all the information you need to set up, configure and use the Casa Systems CTL- 2000 Smart Installation Tool. It provides an overview of the device, the included components, LED indicators, and details the process that is required to perform an Outdoor CPE installation using the Smart Installation Tool.
  • Page 6: Product Introduction

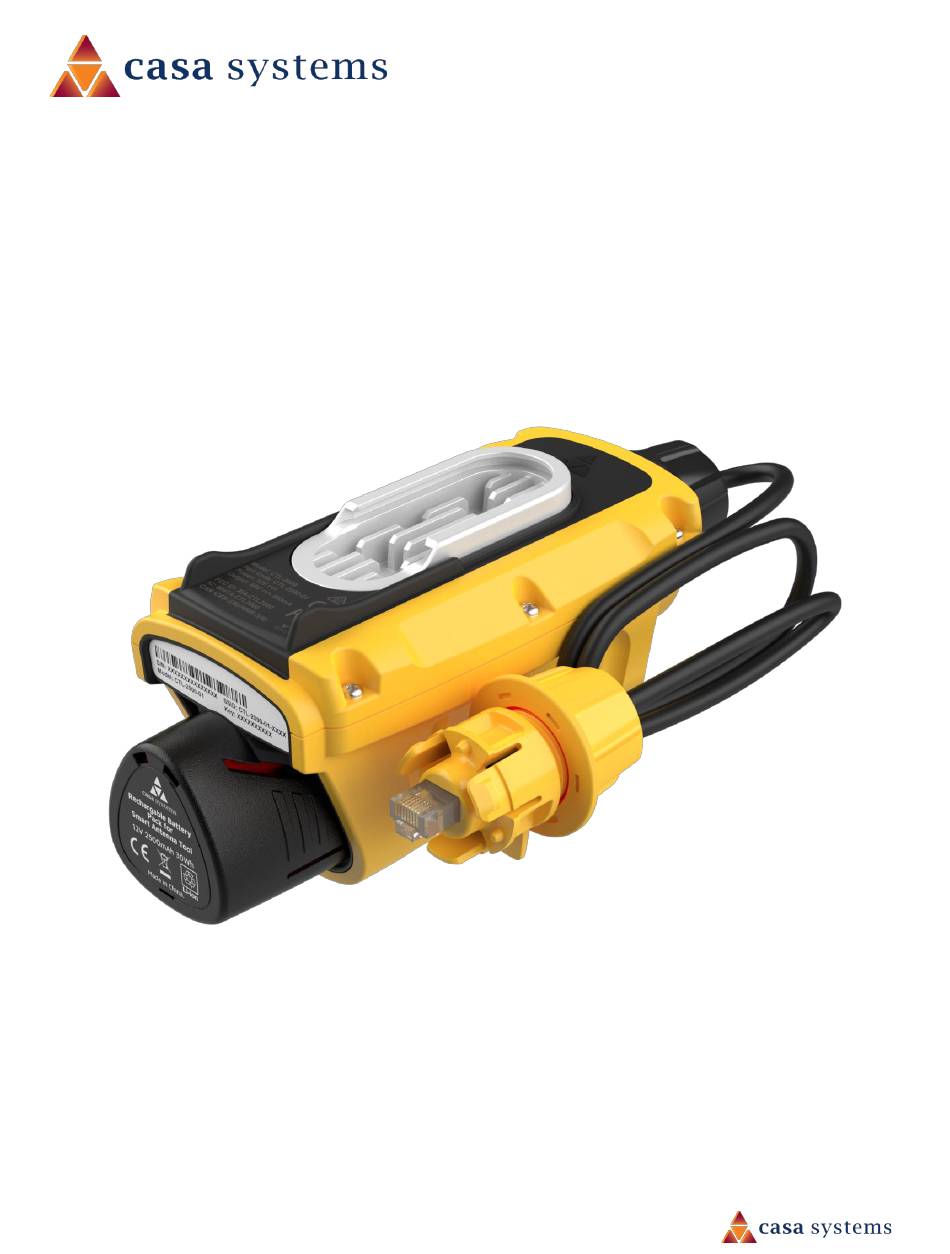

    6 of 34 Product introduction The CTL-2000 Smart Installation Tool is designed to assist technicians in providing a more accurate Outdoor CPE installation process. Attached through the RJ45 Power Over Ethernet port on the Outdoor CPE, the Smart Installation Tool delivers power via its replaceable rechargeable battery, providing the requisite portability for an efficient site survey.
  • Page 7: Package Contents

    1 x US charging cable 1 x EU charging cable 1 x AU charging cable 1 x UK charging cable 1 x Welcome card 1 x Safety/compliance leaflet Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 8: Device Overview

    Turns the Smart Installation Tool on or off. Mounting rail clip Slides on to the rail on the Outdoor CPE via this clip. Can only slide on to the rail in one direction. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 9: Inserting, Removing, And Charging The Battery

    Do not leave the battery charging for extended periods. Once the light is solid green disconnect the charger from the outlet Important – and remove the battery. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 10: Powering The Smart Installation Tool On And Off

    The recommended way to power off the tool is to remove the battery. Powering off the device using the power button puts the Note – device in a stand-by state, which will eventually discharge the battery. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 11: Led Indicators

    S t a t u s Solid green Calibrated Solid orange Calibrated – Medium accuracy Compass calibration status Solid red Calibrated – Low accuracy Blinking red Uncalibrated Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 12: Signal Strength

    LEDs - Good mmWave RSRP 70 ≥ RSRP > -80 LTE or 5G Sub6 SA RSRP > -90 Four signal LEDs - Excellent mmWave RSRP > -70 Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 13: Service Type And Tool Status

    Outdoor CPE has been established. SIM error has been detected on the Outdoor CPE, such as: • SIM PIN locked Blinking red • SIM PUK locked • SIM not detected Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 14: Calibration

    The calibration LED indicates how well the device is calibrated. Refer to 6.2 Calibration status for the different LED statuses. If the calibration LED is solid red or solid orange, consider performing the calibration again to improve the calibration accuracy. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 15: Using The Smart Installation Tool To Align An Outdoor Cpe

    A click sound is heard when the plug is inserted correctly and the signal LEDs blink yellow as soon as power is being supplied to the Outdoor CPE. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 16 Remove the Smart Installation Tool from the Outdoor CPE by holding the Outdoor CPE in one hand and sliding the Smart Installation tool off the rail with the other. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 17: Firmware Management And Updates

    Select either Upgrade Firmware or Load New Configuration depending on which type of file you would like to manage, then select the Continue button. Figure 6 – Dashboard of Aurora Pro app when connected to the Outdoor CPE Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 18 Refer to the AuroraPro app documentation for specifics on completing a firmware update or configuration update. The installation is complete when the Firmware upgrade completed dialog is shown. Figure 8 – Installation in progress information Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 19 Select the Smart Installation Tool tab. Select the firmware file to be deleted. Select the ‘Delete’ button. Figure 10 – Delete dialog box The file is deleted from the Smart Installation Tool. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 20: Using The Pole Mounted Tool Rail

    Figure 12 – Pole Mounted Tool Rail attachment Power on the Smart Installation Tool using the power button. The device is ready to use as soon as the LEDs are visible on the device. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 21 Slide the Smart Installation Tool onto the Pole Mounted Tool Rail as shown below. Attach the Smart Installation Tool with the battery facing towards the ground. Figure 13 – Pole Mounted Tool Rail with Smart Installation Tool attached Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 22: Using The Smart Installation Tool To Power An Outdoor Cpe With The Ethernet Passthrough Adapter

    Adapter labelled Installation Tool and the other end to the Smart Installation tool. To Outdoor CPE Connect to Connect to PC Smart Installation Tool or Ethernet Device Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 23 Access the web interface of the Outdoor CPE by opening a web browser and navigating to https://192.168.1.1. For further configuration information of the Outdoor CPE, refer to the Aurus Pro Outdoor Receiver User Guide. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 24: Aligning An Outdoor Cpe Without The Aurora Pro App

    Remove the Smart Installation Tool from the Outdoor CPE by holding the Outdoor CPE in one hand and sliding the Smart Installation tool off of the rail with the other. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 25: Maintenance And Storage

    Remove the body, cable seal, sealing washer, collar, and clamp. On the yellow end of the cable: Whilst gripping the clip section in one hand, unscrew the clamp surrounding the Ethernet cable in a counterclockwise direction. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 26 Reconnect the black end of the Ethernet cable to the Smart Antenna tool Ethernet port, ensuring the Ethernet connector is aligned with the port on the Smart Antenna tool, then twist and click the black housing into place. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 27: Tool Operation And Storage

    The tool should not be operated where the ambient temperature is higher than +40°C (104°F). Similarly, the batteries should not be charged where the ambient temperature is higher than +40°C (104°F). Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 28: Updating The Firmware Of The Smart Installation Tool

    Updating the firmware of the Smart Installation Tool From time-to-time Casa Systems may release a new firmware for the Smart Installation Tool. A laptop or PC which has a Wi-Fi network card and internet browser is required to update the Smart Installation Tool.
  • Page 29 After the installation is complete, the Smart Installation Tool reboots. Connect to the Wi-Fi network, then navigate to the System Information page. Verify that the Firmware version on the Smart Installation Tool is as expected. Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 30: Battery Information

    Batteries degrade over time and may require replacement. The batteries in the Smart Installation Tool can be replaced and is compatible with 48-11-2430 and 48-11-2460 batteries available from local online resellers. Warranty is only applicable whilst using the Casa Systems supplied batteries or certified 48-11-2430 and 48-11-2460 Important –...
  • Page 31: Safety And Regulatory Information

    16.1.1 RF Exposure The CTL-2000 contains a transmitter and a receiver. When it is on, it receives and transmits RF energy. When you communicate with your device, the system handling your connection controls the power level at which your device transmits. The CTL-2000 meets the government’s requirements for exposure to radio waves. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
  • Page 32: Company Details

    Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. 16.1.4 Company details Casa Systems, Inc. 100 Old River Road, Andover, Massachusetts 01810 USA https://www.casa-systems.com/contact-us/ 16.1.5 Product Details Product: Smart Installation Tool; Model No: CTL-2000 16.2...
  • Page 33: Ised Emissions Compliance Statement

    M o d u l a t i o n T y p e DSSS 2412 - 2472 n_HT20 OFDM n_HT40 Bluetooth Low Energy 2402 - 2480 GFSK Smart Installation Tool (CTL-2000) – User Guide UG01467 v. 1.01 7 November 2023...
  • Page 34: Maximum Rf Power Table

    16.3.5 Simplified EU Doc Hereby, Casa Systems, Inc. declares that the radio equipment type CTL-2000 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://support.casa-systems.com/doc 16.4...
