- Page 1 Instruction Manual Pressure Pulse Generator Type 6909 6909_002-173e-02.22...
- Page 2 Information in this document is subject to change without notice. Kistler reserves the right to change or improve its products and make changes in the content without obligation to notify any person or organization of such changes or improvements.
-
Page 3: Table Of Contents
Pressure Pulse Generator Contents Introduction ..........................3 Hints on the use of these Operating Instructions ..............4 General description of the equipment ..................5 Operation .............................7 General information ......................7 Start-up ..........................7 Location ..........................8 Performing drop tests ......................8 Exchanging the adapter ......................8 Supporting the drop weight ....................9 Limiting the drop height ......................9 Operating faults, notes ......................10 Air inclusions ........................10... -
Page 4: Introduction
Please read through this manual thoroughly to enable you to fully exploit the various features of your product. To the extent permitted by law Kistler accepts no liability if this instruction manual is not followed or products other than those listed under Accessories are used. -
Page 5: Hints On The Use Of These Operating Instructions
Pressure Pulse Generator 2. Hints on the use of these Operating Instructions These instructions describe the pressure pulse generator Type 6909. Please keep these operating instructions in a safe place where you can retrieve them at any time. The current version of this document may be downloaded from Kistler.com... -
Page 6: General Description Of The Equipment

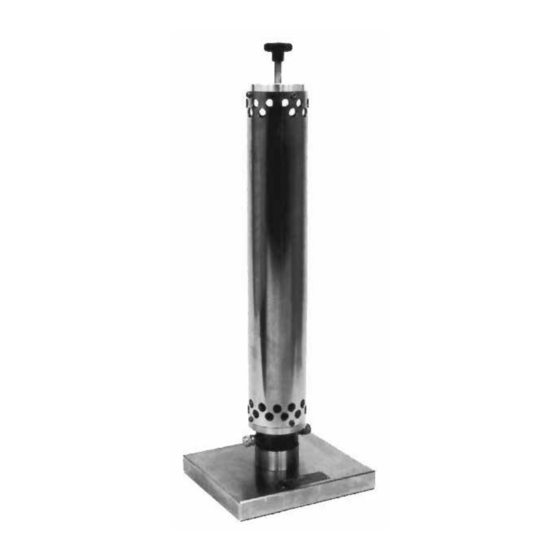

The pressure chamber consists of a piston-cylinder unit and an interchangeable adapter with 2 mounting holes for Kistler pressure sensors. Fig. 1: Pressure pulse generator 6909_002-173e-02.22... - Page 7 Pressure Pulse Generator 218 /190 Fig. 2: Main dimensions Main parts: Base plate 218 x 190 x 28 Spacer D65 x 30 Adapter 6931A... Piston-cylinder unit Drop tube base D85 x 20 Drop weight Drop tube D85/80 x 460 Handle D28, black Page 6 6909_002-173e-02.22...
-
Page 8: Operation
4. Operation 4.1 General information For pressure pulses up to about 500 bar, only the aluminum rod is used as drop weight (Kistler Material 65013682). For pressure pulses > 500 bar, the drop weight of 5,4 kg is used (Kistler Material 65013680). -
Page 9: Location
Pressure Pulse Generator 4.3 Location To obtain ideal operation, i.e. max. pressures, shortest pulse duration and good recoil of the drop weight, the pressure pulse generator must be set up on a flat and hard base (e.g. steel plate, concrete floor). Good recoil allows the weight to be caught again with the hand after the initial impact on the piston. -
Page 10: Supporting The Drop Weight
In order to protect the sensors against overload, the drop height of the 5,4 kg drop weight can be limited by clamping a circlip (Kistler Material 65013337) as a limit stop on the piston rod. ƒ Unscrew the 4 hexagon screws M4 in the drop tube cover ƒ... -
Page 11: Operating Faults, Notes
Pressure Pulse Generator 5. Operating faults, notes 5.1 Air inclusions Air inclusions in the pressure chamber cause pressure fluctuations during the pressure rise. Remedy: Dismantle the test sensor, top up with oil and screw the sensor back in as described in paragraph 4.2. Fig. - Page 12 Operating faults, notes Fig. 4: Pressure curve with leaking seal Type 1101B In order to obtain max. pressure pulses, the drop weight must slide smoothly in the tube. If there is a noticeable resistance in the movement of the drop weight, the piston must be lubricated with oil.
-
Page 13: Equipment Supplied
Pressure Pulse Generator 6. Equipment supplied High pressure oil Type 1053 Klüber grease Type 1063 10 seals Type 1101B Seeger circlip pliers 65007815 Support ring 65000013 Pipette 65007816 Wrench SW3 65007763 Wrench SW8 65007817 Drop weight up to 5 000 bar 65013680 Drop weight up to 500 bar 65013682... -
Page 14: Technical Data
Technical data 7. Technical data Range 25 ... 5 000 Pulse width 5 ... 10* Drop weight 25 ... 500 bar 500 ... 5 000 bar 5 400 Oil volume Pressure transmission Type 1053 (by hydraulic oil) Weight 14,6/19 Total height ≈...
