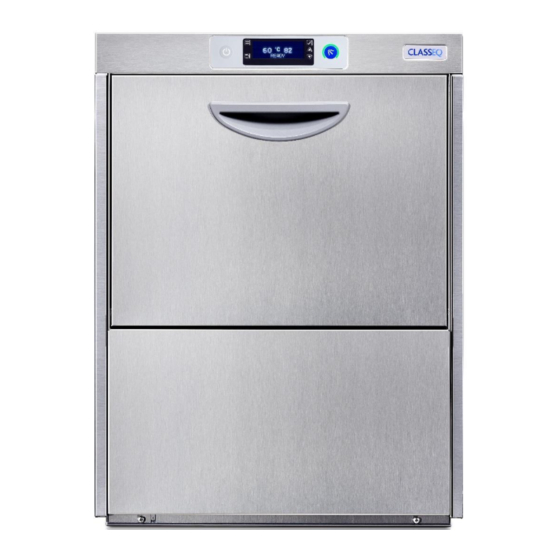

Undercounter warewasher

Advertisement

90001697 Classeq Under Counter Range - User Manual
EN
C400 C400WS
C500 C500WS
Undercounter Warewasher
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Classeq C400

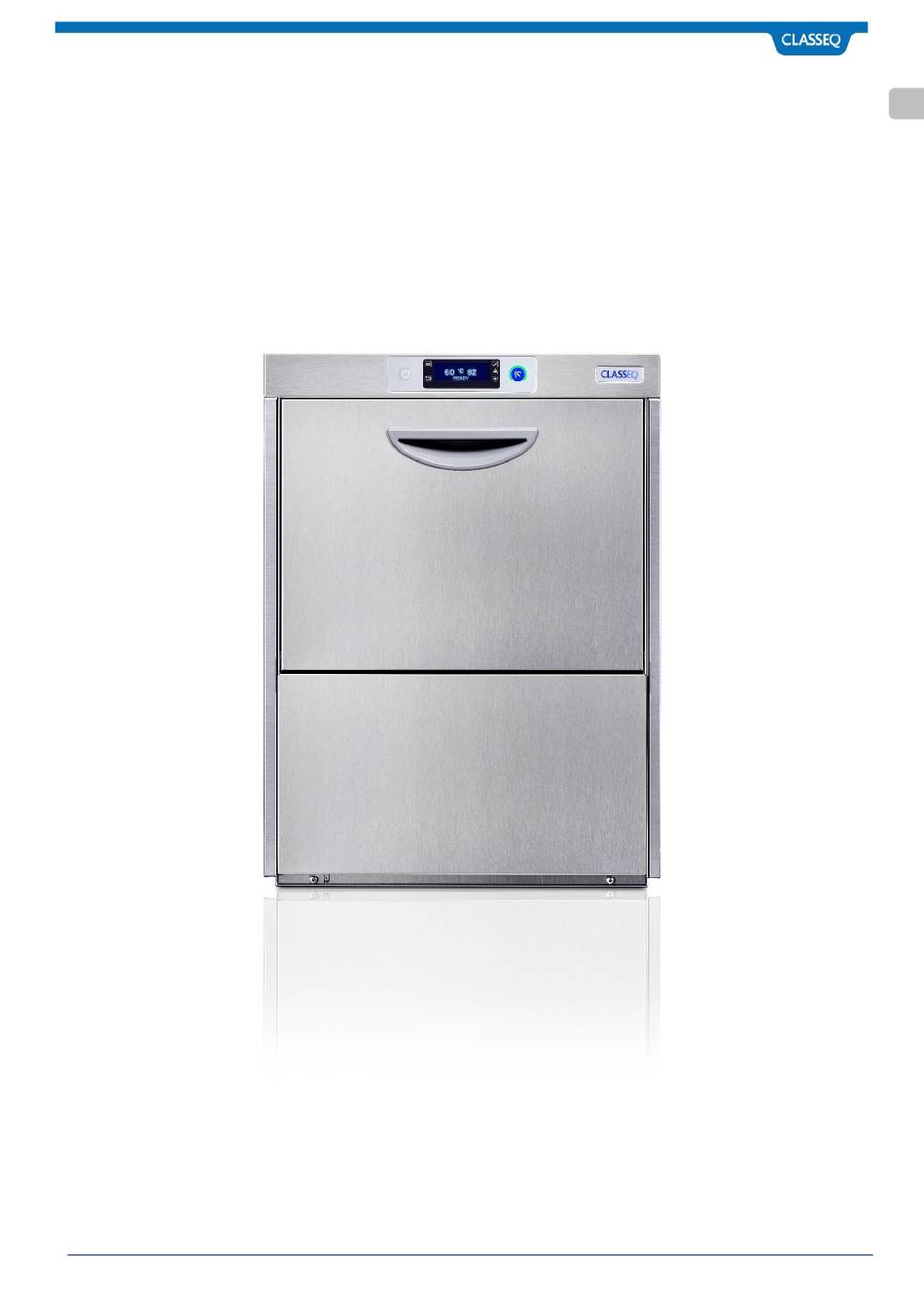

  • Page 1 90001697 Classeq Under Counter Range - User Manual C400 C400WS C500 C500WS Undercounter Warewasher User Manual...
  • Page 2 Classeq Under Counter Range - User Manual...
  • Page 3 Contact details can be found low down on one side of your warewasher (see back page). Please record the Model number and Serial number of your warewasher. You will need these if you need to contact Classeq for support or to make a claim under the warranty.
  • Page 4: Table Of Contents

    Classeq Under Counter Range - User Manual C400 C400WS C500 C500WS Under Counter Range Warewasher User Manual CAUTION: Read these instructions before operating the warewasher Original instructions TABLE OF CONTENTS SAFETY Regular Maintenance Descaling Symbols Used in this Manual Danger Warnings...
  • Page 5: Safety

    (►4.3). If a mains supply cable is damaged, it must be replaced by a cable supplied by Classeq, its service agents or similar qualified persons, to avoid hazards. All mains electrical work must be carried out in accordance with local and national regulations, and by a qualified electrician (►4.4.1).
  • Page 6: Cautions

    Classeq Under Counter Range - User Manual Cautions Damage to the warewasher caused by lime scale or poor water quality will NOT be covered by the Manufacturer’s Warranty (►7.3). In hard water areas (>3°dH), DO NOT run the warewasher without the use of either an internal or external water softener as this could result in damage to the warewasher.
  • Page 7: Know Your Warewasher

    The Door of the warewasher should never be used as a step or seat. Fitted to warewashers with a Water Softener only. Water softener is located at the rear on C400 unit. Water softener is located at the front on C500 unit.
  • Page 8: Intended Use

    Classeq Under Counter Range - User Manual Intended Use Low Chemical Indicator (Note 3) Program selected 2.2.1 Glasswasher Rinse water temperature The intended use is the washing of glasses. Stage Information 2.2.2 Dishwasher Wash water temperature The intended use is the washing of kitchen and tableware.
  • Page 9: Unpacking The Warewasher

    90001697 Classeq Under Counter Range - User Manual 3. Unpacking the Accessories Supplied The warewasher is supplied with the following accessories (Note Warewasher Open Plate After unpacking your warewasher, check it for any transport Basket Basket damage. Never install and use a damaged warewasher. If your warewasher is damaged contact your retailer immediately.
  • Page 10: Installation

    Classeq Under Counter Range - User Manual 4. Installation Your warewasher should be placed in a location that allows the electrical, supply water and waste water connections to be fitted (►4.3). Warning! The installer and user are responsible for ensuring the installation and operation of this...
  • Page 11: Electrical Connection

    D400 / D500 / the electrical rating of your warewasher refer to the rating plate. G400 G500 Contact your distributor, a qualified electrician, or Classeq if you Temperature range 4 - 55°C are unsure how to check this. Pressure 0 - 2 bar...
  • Page 12: Water Supply And Connection

    Consult your distributor, Classeq or a qualified electrician if you are unsure how to do this. The problem shows itself in two forms:...
  • Page 13 The Rinse Tank is difficult to de-scale and a service engineer may Classeq recommend installing a shut off valve in the mains water be required to carry this out. supply line near the warewasher such that it is easily accessible.
  • Page 14: Wastewater And Connection

    Classeq Under Counter Range - User Manual Ensure the rubber seals are in place in the connectors. • Hand tightens the connectors only. • Ensure all connections are watertight before using your • warewasher. The wastewater from your warewasher must be disposed of Wastewater and Connection down the foul drains system, i.e.
  • Page 15: Integral Water Softener (If Fitted)

    90001697 Classeq Under Counter Range - User Manual Do not overtighten the Salt Reservoir Cap. Tubing colour Chemical BLUE Rinse aid Caution CLEAR Detergent DO NOT run the warewasher if there is no salt in the salt reservoir, as this will allow 4.7.1 Preparing the bottles...
  • Page 16: Commissioning

    Up & Down buttons (5 & 6). Confirm the selection by pressing Please refer to the latest version of the Engineers Manual on the Select button (3). Classeq website for full information regarding temperatures and interlock settings.
  • Page 17 90001697 Classeq Under Counter Range - User Manual STEP 5: This Step is for the warewasher with internal Water STEP 9: Start priming by selecting button (3). Make sure tubes Softener Only. Set Water Hardness setting by using Up &...
  • Page 18: Operation

    Classeq Under Counter Range - User Manual 6. Operation GREEN LED indicator (6) means warewasher is Before operating the warewasher, ensure that the mains ready to start the cycle. electrical and water supplies are turned on. Children must be supervised to ensure that they do not play with, Stage display (12) to or operate, the warewasher.
  • Page 19: Wash And Rinse Temperatures

    90001697 Classeq Under Counter Range - User Manual Below is a guide to these fill and heating times when the 6.5.2 Glass washer program options: incoming water is 16°C. Display Description Approximate Rating Time Time (min) 220-240V / 1N~ / 13A...
  • Page 20: Loading A Glasswasher Basket

    Classeq Under Counter Range - User Manual this is not obvious, check the manufacturer’s website or Starting a Cycle label. Always remove excess food / debris from any dishes / glasses to • Items made of brass, bronze, wood, or china with gold be washed.
  • Page 21: Warewasher Malfunction

    90001697 Classeq Under Counter Range - User Manual During normal operation the warewasher will drain out any excess water. To fully drain down the warewasher follow the instructions given below. Press the On/Off button (1) to Notes: turn off the warewasher.
  • Page 22: Maintenance And Servicing

    Classeq Under Counter Range - User Manual 7. Maintenance and As a minimum Classeq recommends the following are checked and cleaned: Servicing DANGER! Remove and clean the • warewasher MUST be disconnected from top and bottom Rinse its power source during cleaning, servicing or and Wash Arms.
  • Page 23: Regular Maintenance

    Rinse Boiler Open the door to the warewasher. you will need to contact your service engineer or Classeq. Remove the Salt Reservoir Cap at the back left hand corner of the Wash Chamber on C400WS or left-hand Warning! corner on C500WS.
  • Page 24: Custom Settings

    Classeq Under Counter Range - User Manual Custom Settings LANGUAGE Your warewasher comes with factory pre-set value and updated value during your commissioning of the machine. In event of any change in circumstances (e.g. language, change of chemical, hardness etc) your warewasher has a provision to updates those values.
  • Page 25 90001697 Classeq Under Counter Range - User Manual Press Select Button (2) to enter the PUMP operation options. CHEMICALS – DETERGENT Press UP Button (4) & DOWN Button (5) to select your choice of operation. Confirm your selection by pressing Select Button (2).
  • Page 26 Press Select Button (2) to enter and confirm the BLUETOOTH setting. Default setting is Enable. Bluetooth allows to connect warewasher to Classeq’s App, which is available on Play store or Google Play for free. Through APP, you connect your warewashers to view overall data and appliance information.
  • Page 27 These settings can only be access by qualified electrician or technician. Failure to do can result in warewasher malfunction. Contact Classeq Technical for more information. “90001723 Engineers’ Manuals” covers the access of these settings. This manual is available for engineers to download via Classeq’s Website or APP.
  • Page 28: Troubleshooting

    Classeq Under Counter Range - User Manual 9. Troubleshooting Warewasher will There is a problem Ensure the not turn on. with the power warewasher is supply. connected to the If you believe the warewasher is not behaving as expected or has...
  • Page 29 90001697 Classeq Under Counter Range - User Manual cycle until all Warewasher does Warewasher not Check that the Warewasher still Check that Fill/Heat cycle start criteria not heat up. turned on. indicators and going through fill / indicator is flashing have been met.
  • Page 30 Classeq Under Counter Range - User Manual Warewasher runs If your warewasher Warewasher not Ensure that the through a full runs through a full properly cleaned. warewasher is cycle but does cycle, but does not regularly cleaned not rinse. rinse, you will need (►7.2).
  • Page 31: Decommissioning

    90001697 Classeq Under Counter Range - User Manual 10. Decommissioning If for any reason you need to remove or decommission your warewasher, do so in accordance with local and national regulations. Classeq recommends the following procedures are followed. 10.1 Flush Out Chemical Dosing Systems Prior to removing any chemicals refer to all safety statements on the chemical bottles for dealing with any spillage.
  • Page 32: Warewasher Specifications

    Classeq Under Counter Range - User Manual 11. Warewasher Specifications 11.1 Dimensions Model No. C400 C500 A. Width (mm) Drain Wastewater Outlet Port B. Depth - door closed (mm) Equipotential Bonding Stud C. Height (mm) min/max 720/750 820/850 Detergent Tube (Clear) D.
  • Page 33: National Approvals Requirements

    90001697 Classeq Under Counter Range - User Manual Model No. C400 C500 Model No. C400 C500 Power Glass - Rinse Tank consumption - 6.58kW 6.58kW temperature (°C) standard (kW) Current - option 1 Noise level (dB) 13 (3 ph) 13 (3 ph) <70...
  • Page 34: Ordering Accessories And Supplies

    12. Ordering Accessories and Supplies To view and order accessories and supplies for your product please go to the Classeq website. www.classeq.co.uk...
  • Page 35: Parts And Labour Warranty

    13. Parts and Labour warranty Classeq Ltd. Parts and Labour Warranty Terms The user is entitled to free replacement and fitting of any part found to be faulty in material or workmanship, including any parts rendered inoperative by the effect of a faulty component, for a period of one year, or as specified by the vendor at the time of purchase.
  • Page 36 Useful Contact Details Classeq Ltd Classeq House Beacon Business Park, Beacon Way, Stafford, ST18 0DG United Kingdom https://www.classeq.co.uk/ Sales and Switchboard tel: +44 (0)844 225 9249 email: sales@classeq.co.uk Service tel: +44 (0)844 225 9245 email: service@classeq.co.uk Technical tel: +44 (0)844 225 0700 email: technical@classeq.co.uk...
  • Page 37 Country Place Service Sales Orders Email, Phone Email, Phone Email, Phone Belgium Vilvoorde service@eliona.be classeq@eliona.be info@eliona.be +32 2 255 18 50 +3222551810 +3222551810 Sweden Uppsala info@winterhalter.se info@winterhalter.se info@winterhalter.se France Chaponost infos@classeq.fr infos@classeq.fr infos@classeq.fr Italy Cardano al Campo info@winterhalter.it info@winterhalter.it info@winterhalter.it...
