Summary of Contents for Nokta AccuPOINT

  • Page 3 WARNINGS AccuPOINT is an electronic device manufactured with advanced technology. Do not use your device without reading the user manual. Do not leave the device in extremely cold or hot environments for long periods of time. (Storage Temperature: -20°C to 50°C).
  • Page 4 Never use chemical cleaners during cleaning, especially after using the device in salt water, or at any other time. Protect the device from impacts during transportation. AccuPOINT can only be opened and repaired by authorized service centers. Opening the device for any reason will void the warranty.

  • Page 5: Introduction To The Device

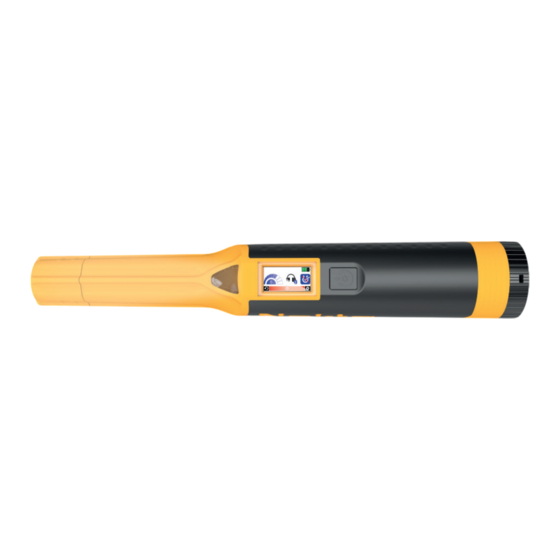

    INTRODUCTION TO THE DEVICE LED Flashlight Color LCD Screen On/Off & Settings Button 360° Detection Tip Replaceable Tip Protector Back Cover USB Type-C Audio Booster Audio Output Charging Port Speaker...

  • Page 6: Battery & Charging Information

    After charging is complete, do not forget to put this piece back in its place! While AccuPOINT is charging, a lightning bolt symbol appears inside the battery icon. When charging is complete, the battery icon displays 3 bars indicating a full charge.

  • Page 7: Operation Of The Device

    AccuPOINT will shut down after 2 beeps. When the device is turned off and then back on, it will start in the last set configuration.
  • Page 8 Metal Detection The device provides audible and/or vibrating alerts when it detects metal. The frequency of sound or vibrations increases as the device gets closer to the metal and decreases as it moves away. If the target is directly under the search coil, it produces a steady sound.
  • Page 9 SETTINGS To access the settings, press and hold the Power On/Off & Settings button while the device is on and wait until the indicator reaches the settings icon. Release the button when you hover over the settings icon and hear 1 beep. The first setting that will appear on the screen is the sensitivity.
  • Page 10 Sensitivity The sensitivity level consists of nine (9) steps. The device starts at the factory default level of seven (7). To increase sensitivity, press the Power On/Off & Settings button once. Each press will increase the sensitivity value by one step. The sensitivity level is displayed both as a number and a graphic.
  • Page 11 Sound and Vibration While using AccuPOINT, you can choose to enable only sound, only vibration, or both sound and vibration simultaneously. Use the Power On/Off & Settings button to view and enable/disable sound and vibration symbols on the LCD screen separately or together.
  • Page 12 Modes and Discrimination AccuPOINT has 3 different search modes: 1-Tone: In this mode, the device does not discriminate between metals and produces the same sound alert for all metals. Iron Off: Provides alerts only for non-ferrous metals and not for ferrous metals. This mode is especially recommended for use on wet beach sand or highly mineralized terrains.
  • Page 13 2-Tone: In this mode, the device discriminates between iron and non-ferrous metals. When AccuPOINT detects metal for the first time, it produces the same sound alert for all metals regardless of whether the metal is iron or non-ferrous. As you get closer to the metal or when the device begins to discriminate, it continues to produce the same tone if the metal is non-ferrous.
  • Page 14 IMPORTANT! It may take 10-15 seconds for the audio to switch from AccuPOINT to the detector once you turn the AccuPOINT off. Once the AccuPOINT is paired with your headphones, if you want to pair it with a different set of headphones this process may take more than a few minutes.

  • Page 15: Frequency Shift

    Frequency Shift This setting is used to prevent interference with other detectors operating nearby. AccuPOINT has 3 different frequency shifts. To change the frequency value, press the Power On/Off & Settings button sequentially.

  • Page 16: Led Flashlight

    LED Flashlight It is the headlight used for lighting the area you are scanning while detecting at night or in dark locations. The LED Flashlight does not work when the device is off. It is recommended to turn it on when needed as keeping it on all the time can reduce battery life. To turn on the LED flashlight, you can set it on the LCD screen by pressing the On/Off and Settings buttons alternately.
  • Page 17 Volume AccuPOINT has two different volume levels: Low and High. You can adjust the volume level by pressing the Power On/Off & Settings button and monitoring it on the LCD screen.
  • Page 18 Backlight AccuPOINT has two different backlight levels: Bright and Low. You can adjust the backlight by pressing the Power On/Off & Settings button. AccuPOINT will automatically turn off the backlight if the button is not pressed for 20 seconds. When the Power On/Off & Settings button is pressed again, the backlight will be activated.

  • Page 19: Factory Defaults

    Factory Defaults AccuPOINT saves all the changes you make in its memory. If you want to restore the device to factory defaults, go to settings, select the ‘Factory Defaults’ icon, and press and hold the Power On/Off & Settings button for 2 seconds (until the hourglass icon appears). It will return to the...

  • Page 20: Battery Indicator

    Lost Alarm AccuPOINT has an alarm feature for loss prevention. If the device is not used and the button is not pressed for five (5) minutes, the device will provide an audible alert and the LED Flashlight will start flashing. The device will continue to provide the sound alert until the button is pressed or the battery dies.
  • Page 21 Frequency Shift: Yes Working Temperature: -20°C/+50°C LED Flashlight: Yes (-4°F/+122°F) Volume Control: Yes Warranty: 2 years Backlight: Yes Screen: Color LCD Nokta Detectors reserves the right to change the design, specifications or accessories without notice and without any obligation or liability whatsoever.

  • Page 22: Fcc Statement

    For Consumers within the European Union: Do not dispose of this equipment in general household waste. The crossed wheeled bin symbol on this equipment indicates this unit should not be disposed of in general household waste, but recycled in compliance with local government regulations and environmental requirements.
