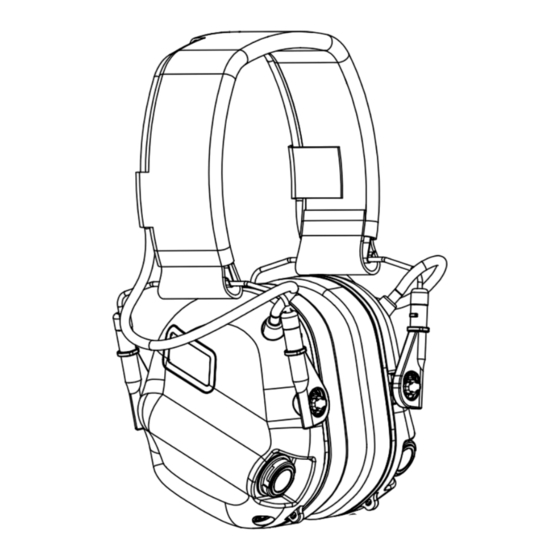

Summary of Contents for Earmor M32 PLUS
- Page 1 PLUS Usermanual...
- Page 2 Environmental Microphone Slider Opening Power/Volume Control TP-120 U-174 Connector APPROVALS EARMOR® M32 Plus Headset are tested and certified according to the following standards: ANSI S3.19-1974 EN 352-1: 2020 / EN 352-4: 2020 / EN 352-6: 2020 / EN 352-8: 2020...
- Page 3 The newly added quick-detach function allows seamless accessory switching even in hazardous environments. EARMOR M32 not only provides users with outstanding hearing protection but also ensures clear and stable communication capabilities, making it an ideal choice for carrying out special missions.
-
Page 4: Adjusting The Headband
4. Microphone Replacement 2. Adjusting the Headband Slide out the earcups to ensure the earcups fully cover the ears, then adjust the height of the cups by sliding Step 1: Pull out the microphone plug them up or down while holding the headbandcin place. Ensure the ear fits within the ear cushion. 3. -
Page 5: Button Operations
Step 3: Rotate the adapter to the angle shown in Figure 1. Step6 : Put the rubber end back onto the top of the sldier, and then insert the steel wire. 90° Step 7: Align the Slider Opening with the groove on the earcups, and press it forcely to clicks into place. Step 4: Slide out the steel wire from slider Button Operations: Volume Up (+) Button... -
Page 6: Fcc Warning
Speaker and Microphone ≈ 30mW Components Speaker Rated Power EARMOR ® M32 Plus is warranted to be free of defects in material and workmanship for a period of 1 year from Speaker Frequency Response Range 20Hz-20KHz the date of original purchase.
