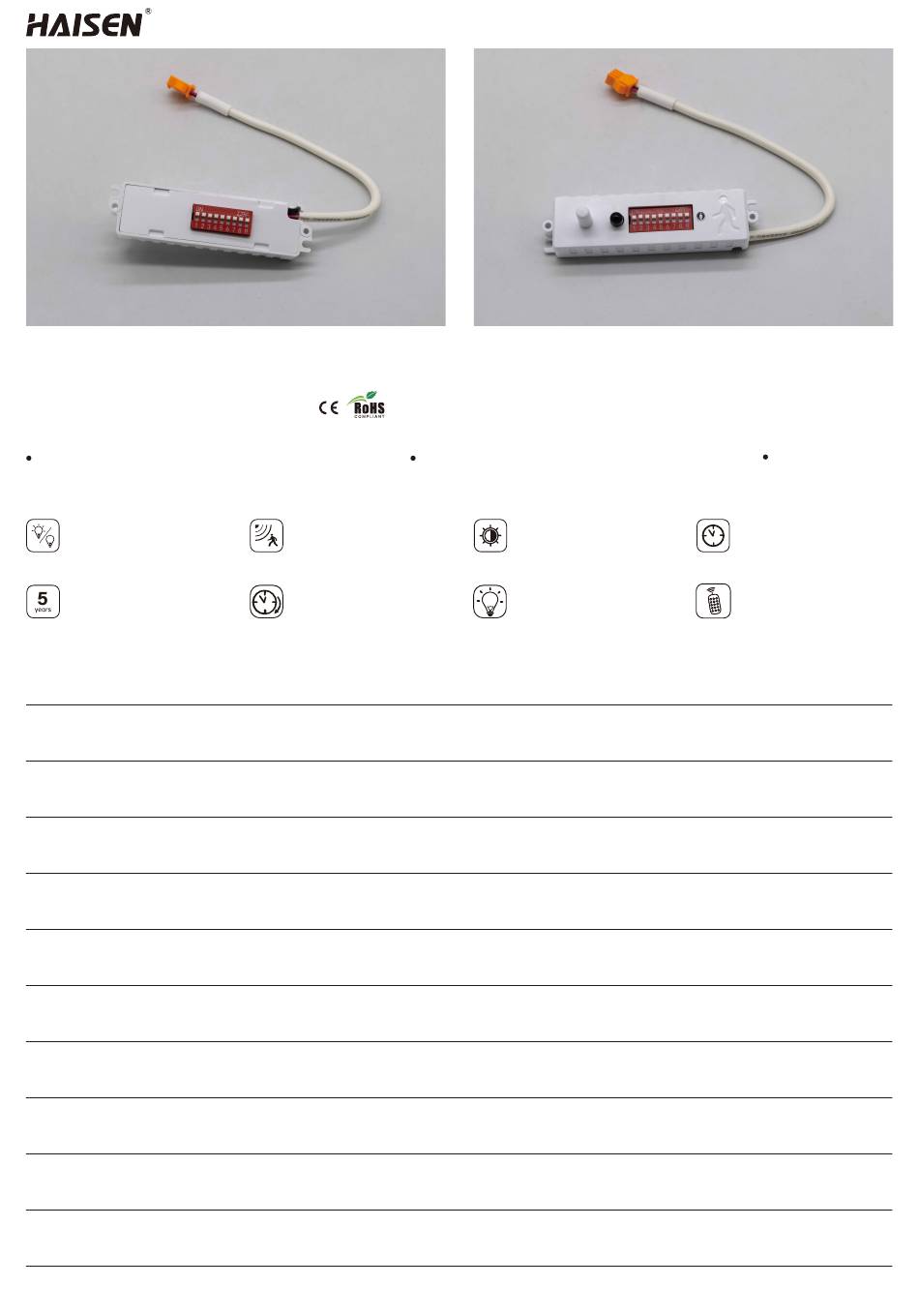

HB001VCR-1A
DC input , Rod antenna
HB001VCR-1A
HB001VCR-2A
Automatic On/off control with Daylight sensor. DC input
On/Off Control
Warranty
Technical Data
Operating Voltage
DC:10.5-15V
Operating Current
<30mA
Stand-by power
＜0.5W
Control Method
ON/OFF
0-10V DIMING
Detection Angle
150° Wall mounted 360° ceiling mounted
Detection Angle
DIP switch : 50%/100%
Remote control : 25%/50%/75%/100%
Hold Time
DIP switch :10s/1min/5min/10min
Daylight Threshold
DIP switch :10Lux/30Lux/50Lux/Disable
Stand-by period
DIP switch :1min/ 30min/ 60min/+∞
Stand-by dimming level
DIP switch :10% 20% 30% 50%
Detection Area
Stand-by period
Microwave Power
＜0.3mW
Microwave Frequency
5.8GHz±75MHz
Mounting Height
Max.4m/13.12ft Ceiling Mounted
Max. Diameter 10m/32.8ft Ceiling Mounted
Quick Connector
Remote control : 5s/30s/1min/3min/5min10min/20min/30min
Remote control :2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Remote control : 0s/10s/30s/1min/ 5min/10min/ 30min/ 60min/+∞
Remote control :10% 20% 30% 50%
HB001VCR-2A
Compact sized particularly suitable for Tri-proof light
Daylight Sensor
Stand-by dimming level
Detection Range
Connection Type
5 year warranty.
Hold Time
Remote Control
Motion Detection
0.5-1m/s
Operating Temperature
-20°C~+60°C
IP Rating
IP20
Warranty
5 years
Function Setting
DIP Switch/Remote Control
Sensor & Intelligent Control
Advertisement
Summary of Contents for HAISEN HB001VCR-1A
- Page 1 HB001VCR-1A HB001VCR-2A DC input , Rod antenna HB001VCR-1A HB001VCR-2A Automatic On/off control with Daylight sensor. DC input Compact sized particularly suitable for Tri-proof light 5 year warranty. On/Off Control Detection Area Daylight Sensor Hold Time Remote Control Warranty Stand-by period...
-
Page 2: Mechanical Structure
Mechanical structure Antenna module Installation Hole Stand-by dimming level Receiver日光感应器 Detection Angle Stand-by Period Daylight Threshold Daylight Sensor Hold Time Dimensions Unit:mm Wiring Diagram Detection Patterns Ceiling Mounted 0.5-1.0M/S Well Detected Area Mounting Height Possibly Detected Area Highest mounting height is 4m This figure indicates the maximum distance at the highest mounting height with 100% sensitivity. -
Page 3: Installation Method
Installation Method DIP Switch Setting Switch UP Switch DOWN The definition of low output in the standby period. Stand-by dimming level The period of light keeping low output before it's completely switched off. When it's preset as"∞“ , the light always keep at low output if no movement in the detection area and Stand-by doesn't turn off. - Page 4 Performance 1.Automatically ON/OFF function Hold time The sensor turns OFF light With sufficient daylight, even With insufficient daylight, the automatically after sensor turns light ON when when motion detected, light hold time when there's no remains OFF. motion gets detected. motion detected.
-
Page 5: Installation Precautions
1. Please read the instructions carefully before using this product and keep it well for all users to read at any time. 2. The sensor should be installed by qualified electrician and ensure power is off before the installation. 3. We reserve the right to modify any incorrect text, image and necessary technical param- Attention eters. - Page 6 HJ!ISEN ® SCREEN DISPLAY, MEMORY & APPLY FUNCTION, OPTIONAL SCENES Briefing of Button Functions Buttons Function Performance • Turn ON or OFF the sensor. ON/OFF Exchange from Microwave detection to PIR detection, • MW / PIR for future use . Press it to start detection programming;...
- Page 7 HOW TO USE HD05R 1. SENSOR PROGAMMING ON/OFF button to turn on the light 2. SCENE button to start programming 3. Choose functional button of detection area, see icon blinking on the LCD screen display then use + - buttons to change *Icon keeps blinking on the screen for 5S that means the program will 4.
