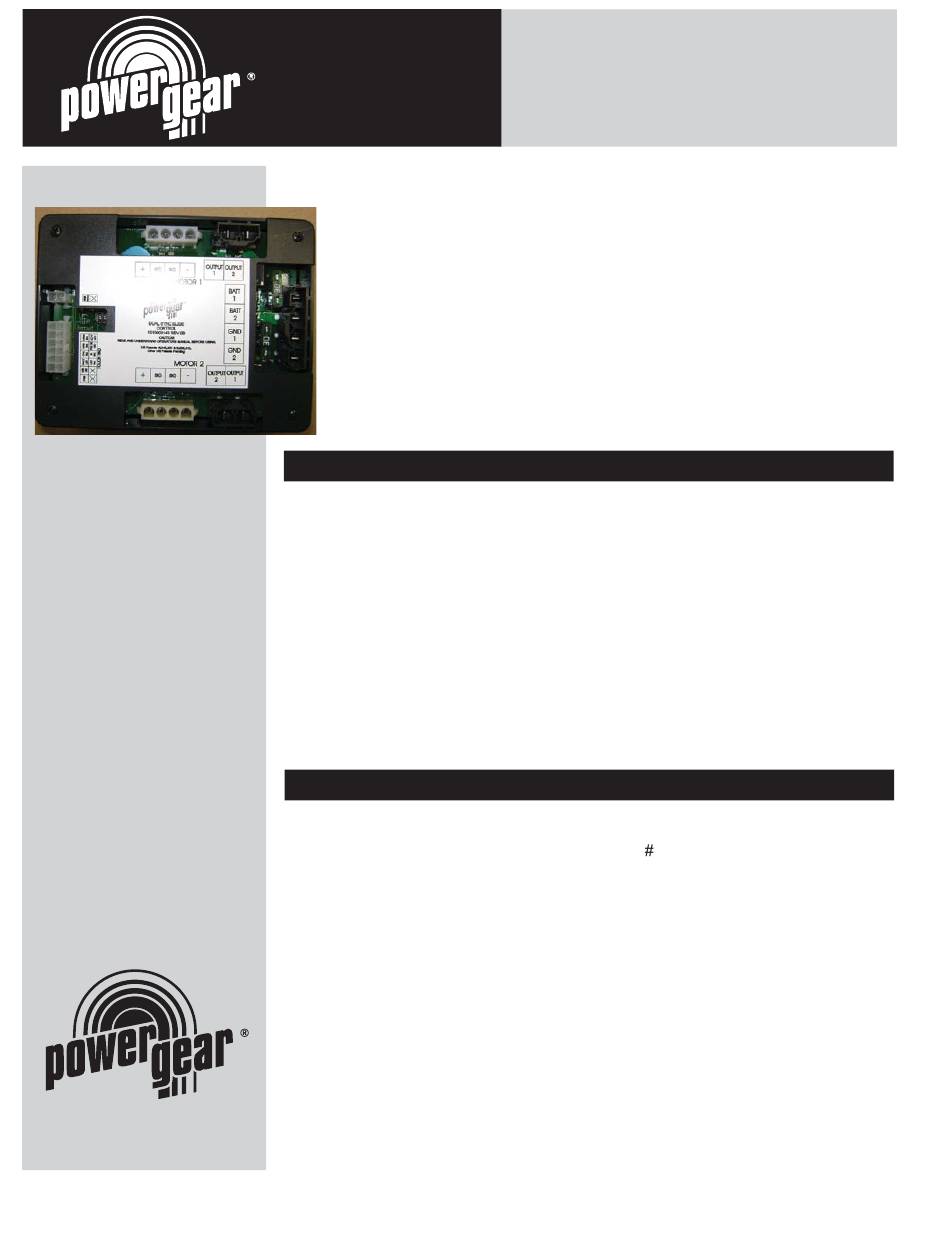

Installation and Service
M² Sync Room Slideout System
without Room Lock Connectors on
Introduction
1
SYSTEM DESCRIPTION
1
Your Power Gear Slideout System is a rack and pinion design operated by a 12
2-3
Volt DC electric motor.
3
4
MAJOR COMPONENTS
4
· Inner rail assemblies are designed to support the room weight.
5
· The 12 Volt DC gearmotor will operate the room using power from the battery.
5
· Slideout systems are equipped with a manual override that allows you to extend
6-7
/ retract the room in the event of a loss of power.
7
· A specially designed control that gives the user full control of room movement, in
8
or out. The control has programmable stops that stop the motor when the room
is fully extended or retracted and the ability to detect faults for ease in
troubleshooting.
Installation
‡ 5HIHU WR µ(OHFWULF 0RWRU 'ULYHQ 6OLGH2XW 2(0 ,QVWDOODWLRQ 0DQXDO 3RZHU *HDU
31 IRU SURSHU LQVWDOODWLRQ RI UDLO DVVHPEOLHV
‡ ,I XVLQJ URRP ORFNV UHIHU WR 3RZHU *HDU GUDZLQJ *$ IRU SURSHU
installation of room locks.
‡ Control and touchpad Installation.
0RXQW FRQWURO ER[ )LJ LQ D ORFDWLRQ WKDW ZLOO SURWHFW WKH FRPSR
nents from the elements and being hit, but is easily accessible for service.
'HWHUPLQH ORFDWLRQ WR PRXQW WRXFKSDG )LJXUH /RFDWLRQ QHHGV WR EH
in view of slideout room and have a minimum depth of 1" inside the wall.
Cut 3 1/8" wide x 2" high rectangular opening in wall paneling to mount
the touchpad.
3. Route and attach touchpad harness to where touchpad will be mounted.
0RXQW WRXFKSDG ZLWK VFUHZV DIWHU V\VWHP KDV EHHQ SURJUDPPHG
4. Route and attach the motor and sensor harness from the control box to
the slideout room motors.
5. Route and attach the proper gauge wire from the control to the chassis
battery.
Installation & Service Manual
M² Sync Room Slideout System w/o Room
Locks: for Slideout Control Box# 1510000143
and 1510000198
© 01/13 Power Gear #3010002088 Rev. 0C
Manual
Control Box
Refer to proper wiring diagram in back of manual
