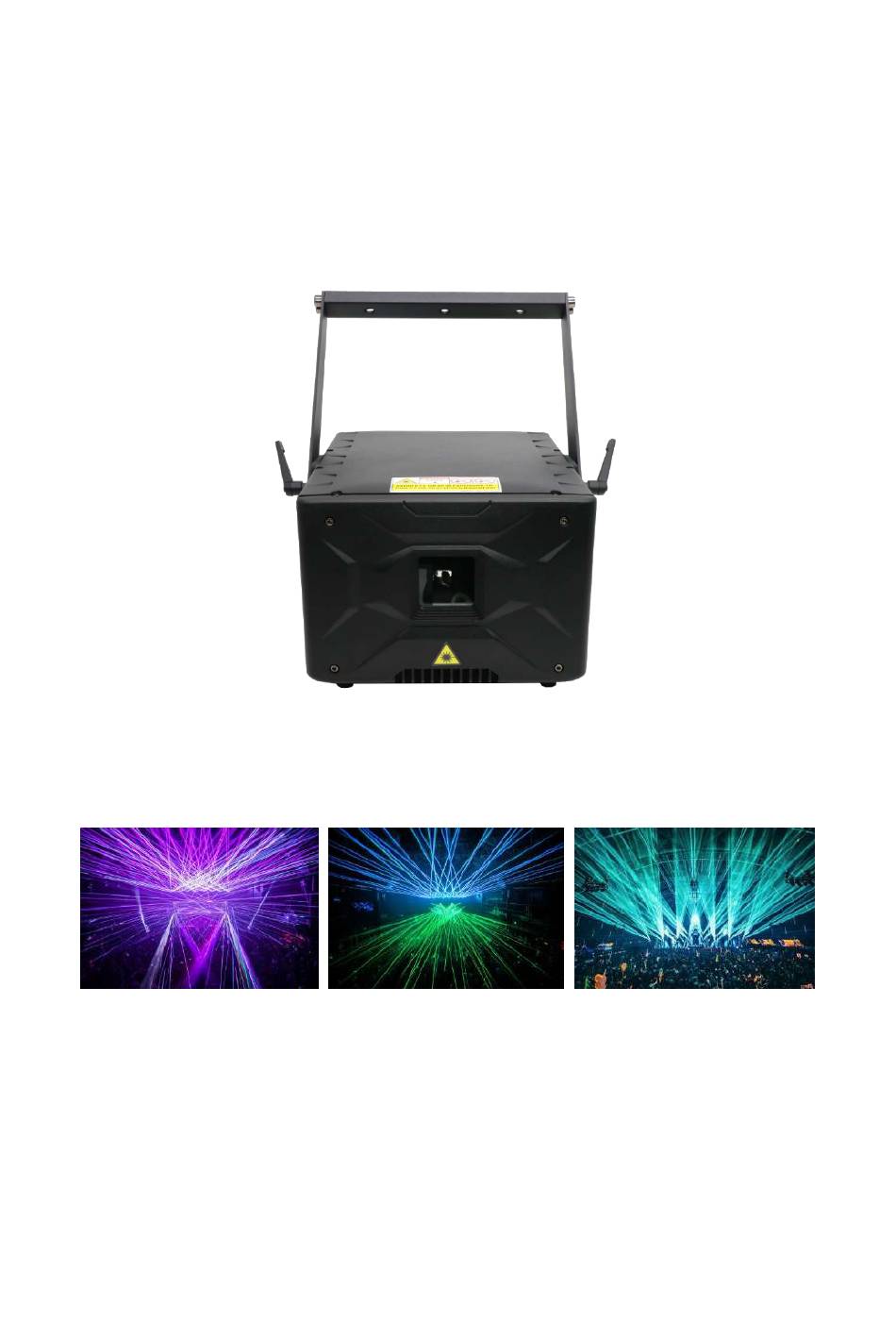

User Manual
RGB Animation laser light
Thank you very much for purchasing this full-color animation
series of laser lights . For your personal safety and better use of this
product, please read this manual carefully before use, and strictly
abide by the stated warnings and operating instructions to avoid
I
Advertisement
Summary of Contents for Newfeellight A3 Series
- Page 1 User Manual RGB Animation laser light Thank you very much for purchasing this full-color animation series of laser lights . For your personal safety and better use of this product, please read this manual carefully before use, and strictly abide by the stated warnings and operating instructions to avoid...
- Page 2 misuse and damage. Personal safety and lamp damage . ● Packing list: When you unpack the laser light , please check for the following items: ······· One full- color animation laser light ·······one instruction manual ● Instructions for use: After opening the packing box, carefully check whether the laser show is damaged due to transportation, such as whether the screws are loose, whether the reflective lens is broken, etc.
- Page 3 be used after the self-test. ● Safety Warning : 1．Live operation is likely to cause electric shock accidents, and electric sparks will be generated when connecting, which will damage the safety circuit and light source of the lamp, and cause the lamp to not work normally. So before any installation and maintenance work, please make sure that the power supply has been cut off.
- Page 4 2．Rated power: <300W 3．Laser type : all solid-state semiconductor laser 4．Laser power: RGB 5-10W 5．Laser wavelength: R:638nm/635nm,, G:520nm/532nm, B:450nm/447nm 6．Laser modulation signal: analog modulation / TTL modulation signal 7．Laser color: full color 8．Laser patterns: built-in 128 patterns and animations 9．Scanning system: 25- 40KPPS high-speed galvanometer 10．Galvanometer scan angle: ±...
- Page 5 Menu display : (the button is a waterproof touch button) ← Menu key / Confirm ← up and down selection keys 1. SelectMenu/menu selection. Press the MODE/ENTER key plus the down select key to select the required function menu, the black shaded bar is the selected state, press OK/return to the selected function.
- Page 6 5、Address Setup AddressSetup/ address code Address code setting Channel Setup Normal ModeNormal Mode 6、 Expert Mode Professional Mode channel settings LaserSetup laser light setup 7. Laser Setup 1. Scan Rate / scan speed Scanner scanning speed Laser Light Settings 20KPPS 20KPPS 2.
- Page 7 6. Display Setup/display settings Rotate 180deg/rotate degrees NormalDisplay/normal 7. LaserSystem2.9/Laser System Software/software version Version 1.0/Ver1.0 YM:2020030601 DMX-512 channel description: 1. STD/normal mode : 10CH aisle channel control content value switch light turn off the lights 1 ~ 255 Turn on the light 1-100% strobe 1 ~ 255 Strobe speed selection...
- Page 8 1 ~ 255 Turn on the light 1-100% strobe 1 ~ 255 Strobe speed selection pattern size 0 ~ 255 Pattern selection from large to small horizontal 0 ~ 255 Horizontal position selection, the value is 128 is the middle position position, only valid when CH3 is 1-255 vertical position 0 ~ 255...
- Page 9 position, only valid when CH3 is 1-255 CH23 pattern file 0 ~ 255 Select a pattern file from the pattern library files CH24 color 0 ~63 Fixed color selection 64 ~ 95 Fixed color/color changing effect speed selection 96 ~ 127 Color changing effect speed selection 128 ~ 159 Color-changing effect speed selection / flowing water effect...
- Page 10 1、Please use a professional glass cleaner every month and clean the lens of the light outlet with a flannel cloth to ensure the maximum brightness output of the laser. Be careful not to wipe the lens with a wet cloth or other chemical solvents.
-
Page 11: Product Name
1、When this product leaves the factory, its performance is intact and its packaging is complete. All users should strictly abide by the warnings and operating instructions stated above. Any damage caused by misuse is not covered by the company's warranty, and the manufacturer is not responsible for failures and problems caused by ignoring the operation manual. - Page 12 Sellers Contact: Telephone: stamp Note: The above blanks must be filled and stamped by the end user and the seller truthfully, otherwise the warranty will be void.
