WST-130 Wearable Action Button
Instructions and User Manual
1. Specifications
Frequency: 433.92 MHz
Operating Temperature: 32° – 110°F (0° – 43°C)
Operating Humidity: 0 – 95% RH non-condensing
Battery: 1x CR2032 Lithium 3V DC
Battery Life:
Up to 5 Years
Compatibility: DSC receivers
Supervisory Interval: Approximately 60 minutes
2. Package Contents
1 x Action Button 1 x Rope Necklace
1 x Wrist Band 1 x Pendant Inserts (2 pcs set)
1 x Belt Clip Adapter 1x Surface Mount Bracket (w/2 screws)
1 x Manual 1 x CR2032 battery (included)

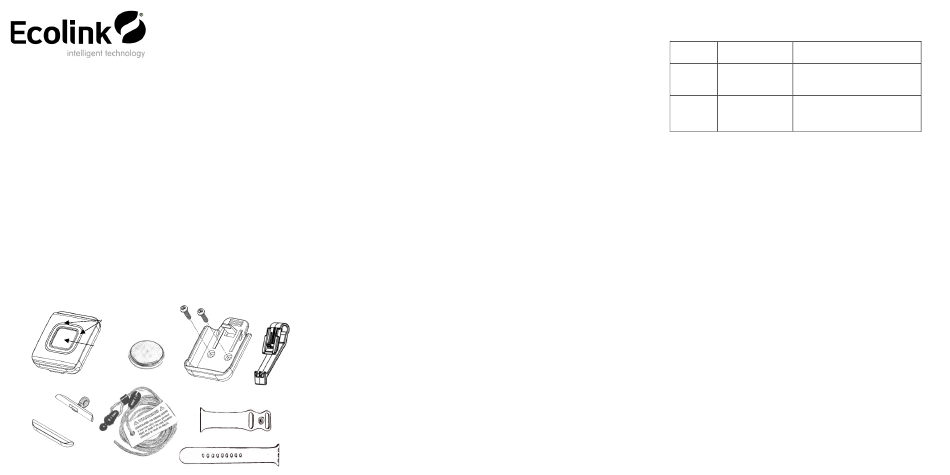

3. Component Identification
LED Ring
Button
CR2032 Battery
Action Button
Surface Mount / Belt Clip
Wrist Band (Top and Bottom)
Pendant Inserts
(Top / Bottom) Rope Necklace
4. Product Configuration
The WST-130 can be worn or mounted in four (4 ways):
1. On a wrist using a compatible wrist band (the color of the included wrist
band may vary).
2. Around the neck as a pendant using the included pendant inserts and
snap-closure adjustable-length rope necklace (color may vary).
3. Mounted to a flat surface with the surface mount bracket and screws.
4. Worn on a belt with the surface mount bracket plus belt clip.
Note: Users can personalize their Wearable Action Button with Apple
Watch®-compatible wristbands (38/40/41mm).
5. Enrolling
The WST-130 Wearable Action Button supports up to three (3) different
alerts or commands to be triggered through different button presses.
The button appears as three sensor zones, each with their own unique
serial number.
To prepare the button:
Install the battery in the action button following instructions in Section 8.
Then Press and Hold the button for twenty (20) seconds. During this hold
time, the LED will blink three times, then remain on for 3 more seconds
[Zone 3]. Do not release the button, continue holding down the button
until the LED blinks five (5) times indicating the button is ready.
To enroll the action button:
1. Set your panel into programming mode according to the panel
manufacturer's instruction.
2. If prompted by the panel, enter the desired zone's six-digit ESN
printed on the ESN card, following the panel manufacturer's
instructions. Note some panels can enroll your sensor by capturing
the serial number transmitted by your sensor. For those panels,
simply press the action button pattern for the desired Zone.
Zone 1 Single Tap Press and Release (Once)
Zone 2 Double Tap Press and Release (Twice,
<1 second apart)
Zone 3 Press and Hold Press and Hold until LED
illuminates (about 5 seconds),
then release.
3. When enrolling the device, it is recommended to name each zone for
easy identification and assignment to the intended action or scene.
Example: zone #1 = "AB1 ST" (action button #1 single tap), zone #2 =
"AB1 DT" (action button #1 double tap), and zone #3 = "AB1 PH"
(action button #1 press and hold).
Important Notes:
After the zone is recognized by the panel, be sure to assign a zone
type that is "chime only". Otherwise, the button zone will be treated
like a Door/Window open and restore and may trigger an alarm
state.
If the Action Button will be used as a "wearable device" supervisory
should be disabled on the panel, as the wearer may leave the
premises.
4. Repeat steps 1-3 until the panel recognizes all the desired Zones.
6. Action Button Testing
The Action Button is designed to be used within 100 ft. (30 m) of the panel.
Test before first use, as well as weekly. The test verifies proper
communication between the sensor and the panel/receiver.
To test the Action Button after enrollment, refer to the specific
panel/receiver documentation to place the panel into sensor test mode.
Press the button sequence for each zone to be tested, from location(s) the
Action Button shall be used. Verify the transmission count received on the
panel is consistently 5 of 8 or better.
