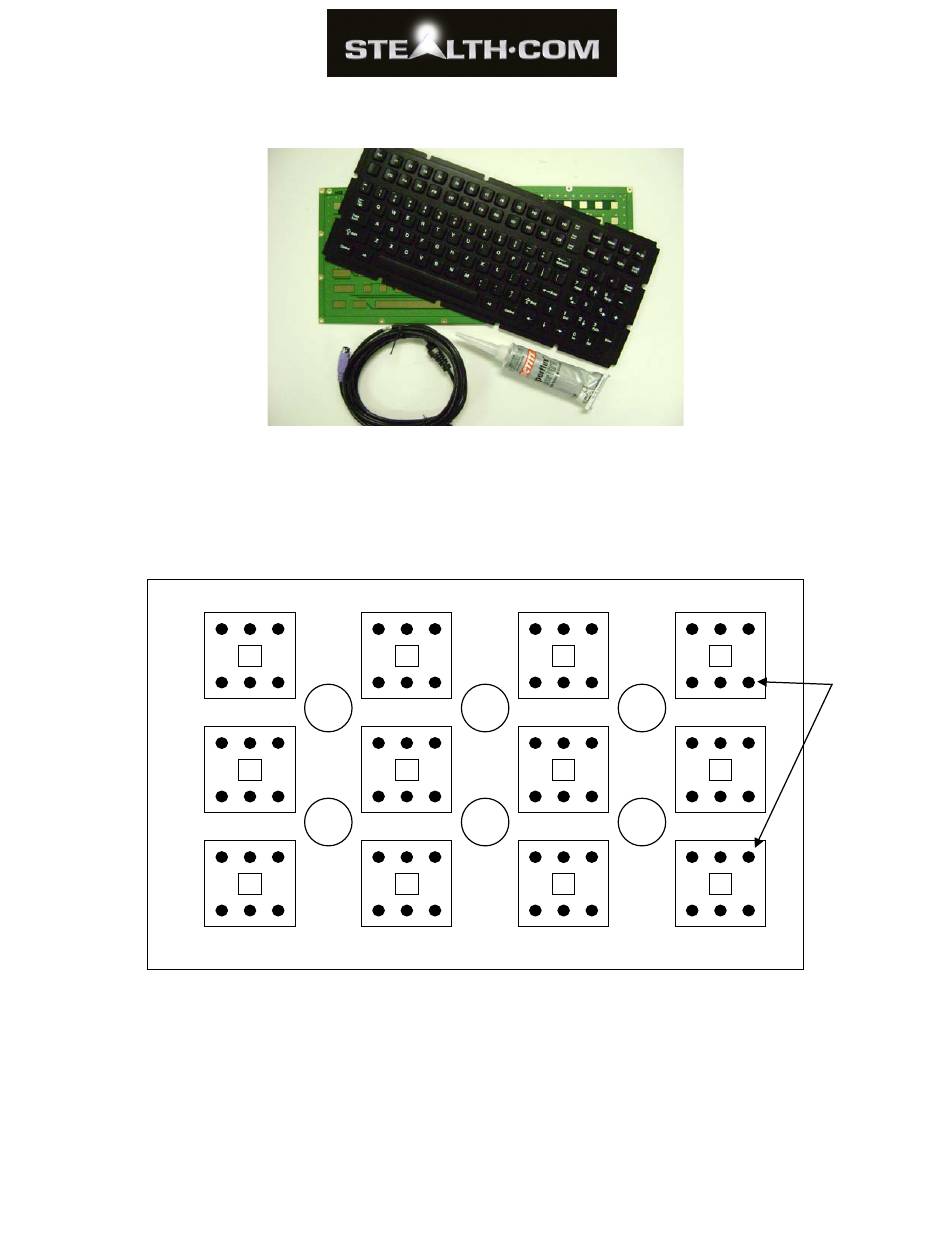

Step 1: Materials Needed for an OEM Assembly

1. OEM Printed Circuit Board
2. Silicone Rubber Keypad Overlay
3. Cable
4. Silicone RTV Glue

Step 2: Applying Adhesive to Silicone Overlay

Apply silicone adhesive [Stealth recommends SuperFlex by Loctite] to back side of silicone
overlay (keypad). Sparingly dab glue on the middle of each key intersection across the
whole keyboard as seen in this picture. Also apply to inside of center portion of
HulaPoint™ pad (where the sensor/joystick lies) if OEM kit incorporates the HulaPoint™
Be careful not to drop silicone on any key contacts.
Back of silicone keypad
Glue
Glue
Glue
Glue
Back of silicone keypad
Key
Glue
Contacts
Glue
Key
Contacts
